What is a Track Light?

2025-08-06

In modern lighting design, track lights have become a popular choice for both commercial spaces and home settings due to their flexible and versatile nature. But for many people, the term "track light" may be familiar yet vague. What exactly is a track light? How does it work? And in which scenarios is it applicable?

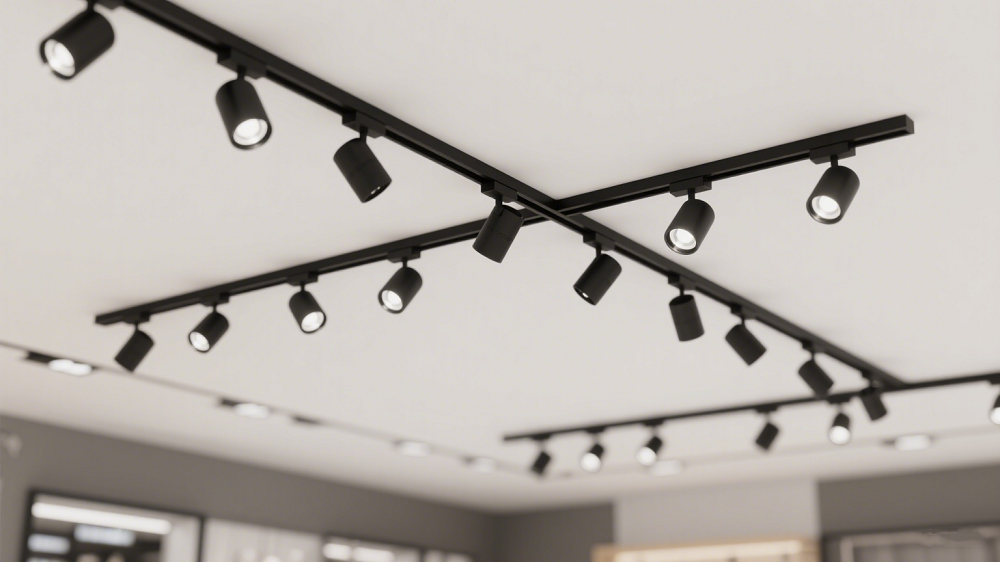

As the name suggests, a track light is a lighting system composed of two main parts: the track and movable light heads. The track is usually made of aluminum alloy, with conductive copper strips inside to supply power to the light heads. The light heads can be flexibly mounted on the track and can rotate 360 degrees and adjust angles up and down to achieve precise light projection. This structural design allows track lights to break free from the limitations of traditional fixed lighting fixtures, enabling them to adjust the lighting range at any time according to the spatial layout and usage needs, making them highly practical.

In terms of working principle, the core of a track light lies in the electrical connection between the track and the light head. When the light head is installed on the track, its internal conductive contacts make close contact with the copper strips inside the track, forming a current path. When the power is turned on, the current is transmitted to the light head through the copper strips, driving the light beads (mostly LED beads, which have the advantages of energy saving and long service life) to emit light, thereby achieving the lighting function. This design not only ensures the stability of power transmission but also makes the installation, disassembly, and movement of the light heads very convenient, without the need for complex wiring modifications.

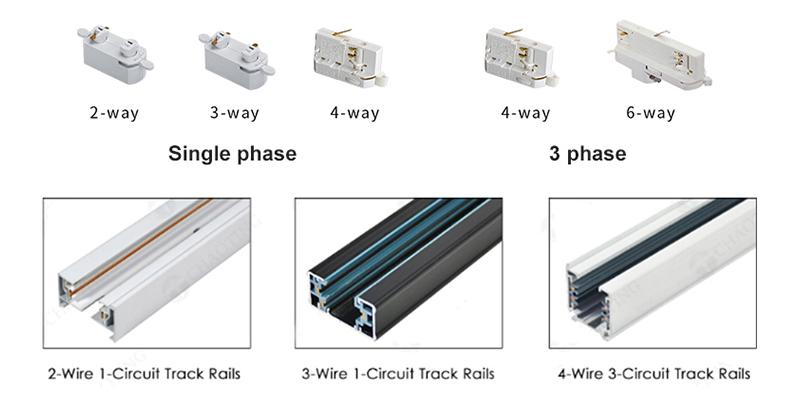

Track rails of track lights can be divided into 2-wire, 3-wire, 4-wire types according to the number of internal conductive copper strips, each with different characteristics and applicable scenarios:

2-wire track rail: They contain 2 conductive copper strips inside, with a relatively simple structure. Their main function is to provide basic power supply for the light heads and cannot realize complex control functions such as grouped dimming and color adjustment. They have low cost and are easy to install and maintain. 2-wire track strips are widely used worldwide, especially suitable for scenarios with low requirements for lighting control. They are common in small and medium-sized shops and ordinary home decoration in some developing countries such as India and parts of Southeast Asia, as they can meet basic lighting needs and fit local cost budgets.

3-wire track rail: There are 3 conductive copper strips. In addition to providing power, the extra one can be used to realize simple grouped control. For example, different light heads on the track can be divided into two groups, with separate on/off control for each group. They are more functional than 2-wire track strips and have a moderate cost. 3-wire track strips are suitable for countries that have certain requirements for lighting control but do not need overly complex functions, such as South Korea and Australia. They are widely used in medium-sized shopping malls, restaurants and other places, allowing for grouped lighting management according to the usage needs of different areas.

4-wire track rail: There are 4 conductive copper strips inside, with the most powerful functions. They can not only supply power stably but also support more complex controls, such as dimming, color temperature adjustment, and linkage with intelligent control systems, enabling refined lighting management. However, their structure is relatively complex, the cost is high, and they have higher technical requirements for installation and maintenance. 4-wire track strips are suitable for countries with high requirements for lighting quality and control precision, such as developed countries like Germany, the United Kingdom, and the United States. They are widely used in high-end shopping malls, art galleries, museums and other places, which can meet the precise control needs of these places for different light effects and create a more comfortable and professional lighting environment in conjunction with intelligent systems.

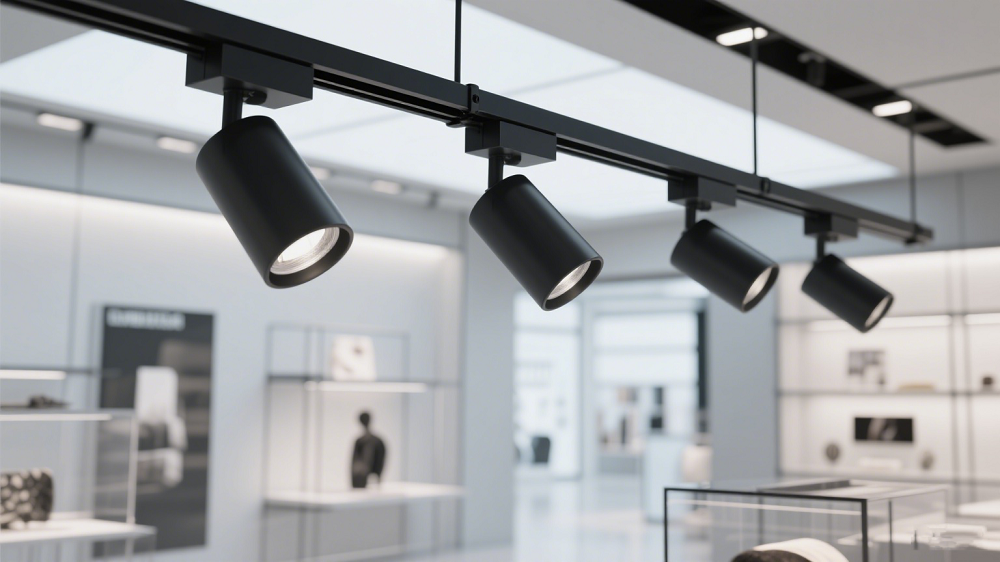

Track lights have a wide range of applicable scenarios. In commercial spaces such as clothing stores, jewelry stores, and galleries, track lights can accurately focus on exhibits, highlighting the texture and details of the goods to attract customers' attention. For example, in a clothing store, by adjusting the angle of the track lights, the light can be concentrated on the models or the clothes on the shelves, making the colors and styles of the clothes more distinct. In galleries, track lights can provide uniform and soft lighting for paintings, avoiding reflections caused by direct light, allowing viewers to better appreciate the artworks.

In home environments, track lights can also play a unique role. For an open-plan living room, track lights can illuminate the sofa area, dining area, and reading corner separately, creating a layered light and shadow effect. In a study or studio, track lights can focus on the desk, providing sufficient working lighting while avoiding light diffusion affecting the rest area. In addition, the simple design of track lights can perfectly integrate with modern home styles, becoming a low-key yet practical decoration in the space.

In general, track lights are a lighting device that integrates flexibility, practicality, and aesthetics. Through the combination of tracks and movable light heads, they realize precise control of light. We are a professional manufacturer of track lights, our track lights, whether for commercial display or home lighting, they can meet diverse needs and bring a more layered light and shadow experience to the space. Welcome to contact us to get the price list.
