Outdoor Downlight Waterproof IP65 Surface Ceiling Light FT-MDL06
Features:
● Flicker-Free & Low UV/IR Emission
● Optional Smart Control.OEM/ODM Support
● Multiple Color Temperatures–2700K-6000K
● Long Lifespan (50,000+ Hours),Low maintenance
● Sealed Gasket Design-Ensures waterproof integrity

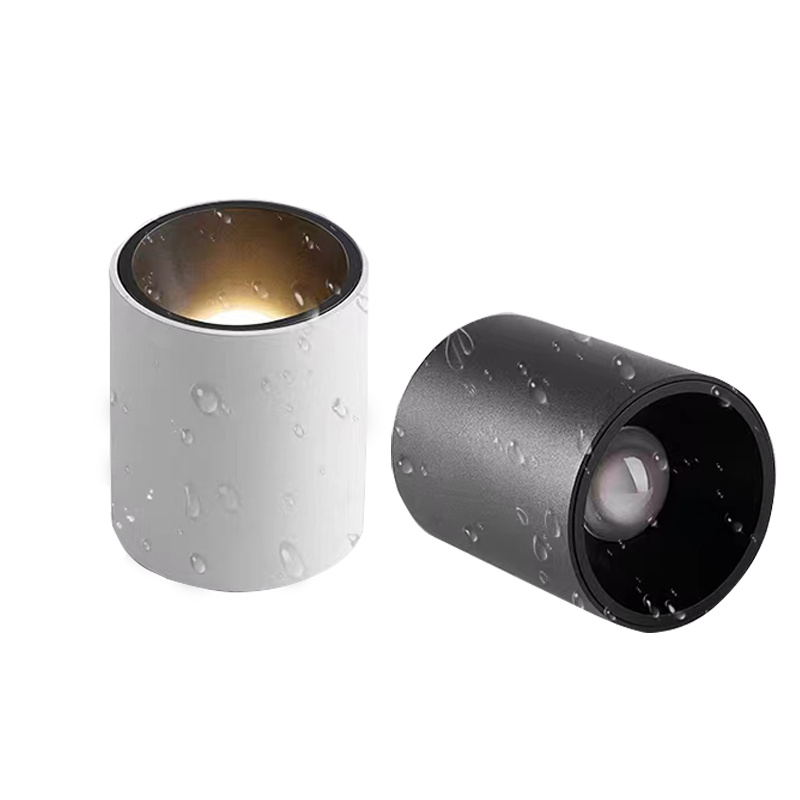

● IP65 Waterproof Rating-Dustproof and protected against water jets
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 10-20W：0.5 ; 25W-50W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Ceilng Mount Downlight |
| Power | 10W/15W/20W/25W/30W/35W/40W/45W/50W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |

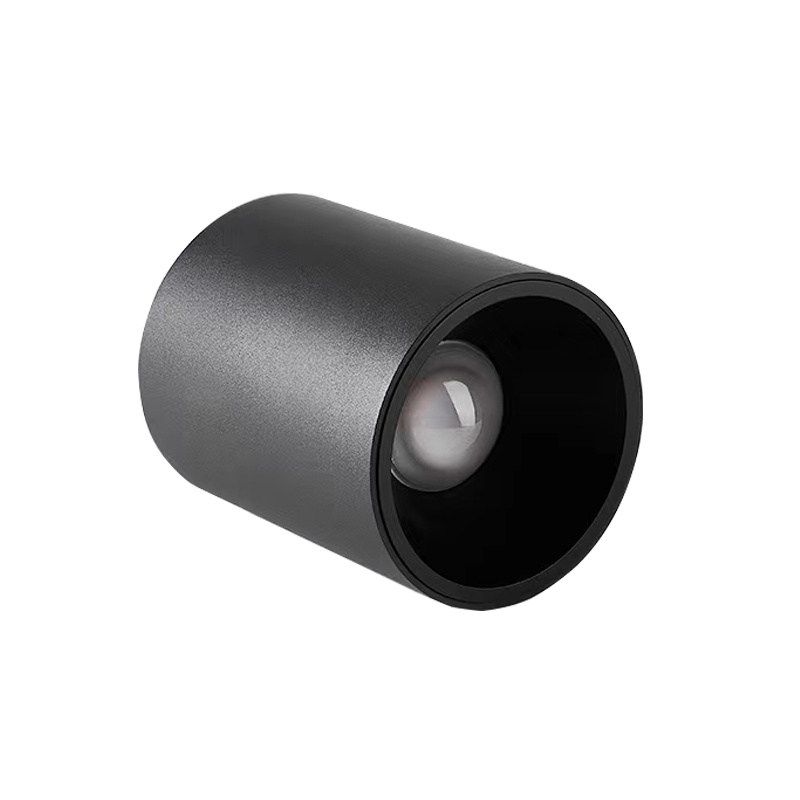

| Color | Black/White |
| Beam angle | 30° / 60° |
| CRI (Ra>) | 80/90/95 |
| Dimension(mm) | D75*H100/D75*H150/D115*H135/D115*H160/D140*H170 |
| Working Temperature( °C ) | -20 ~ +50 |

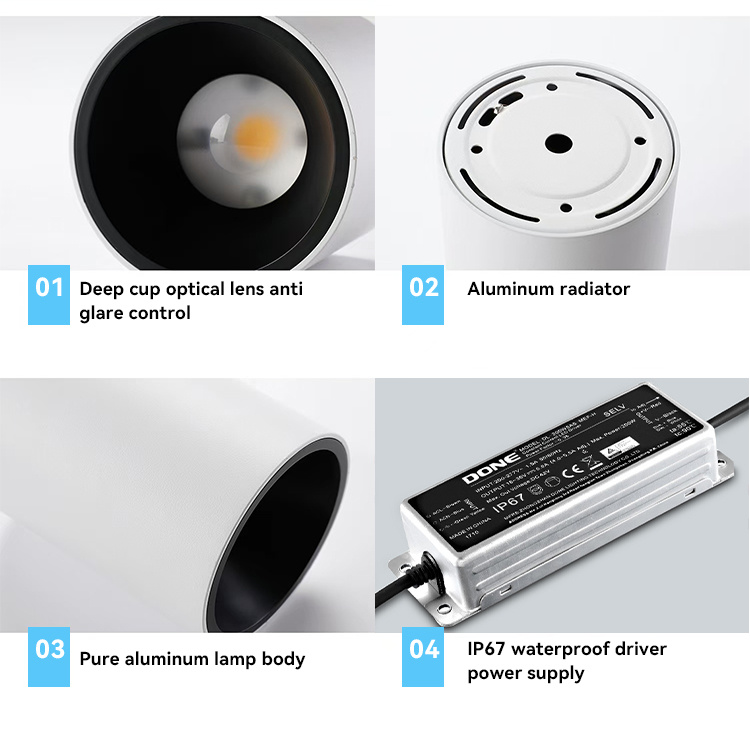

| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10W-20W: 0.5 ; 25W-50W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

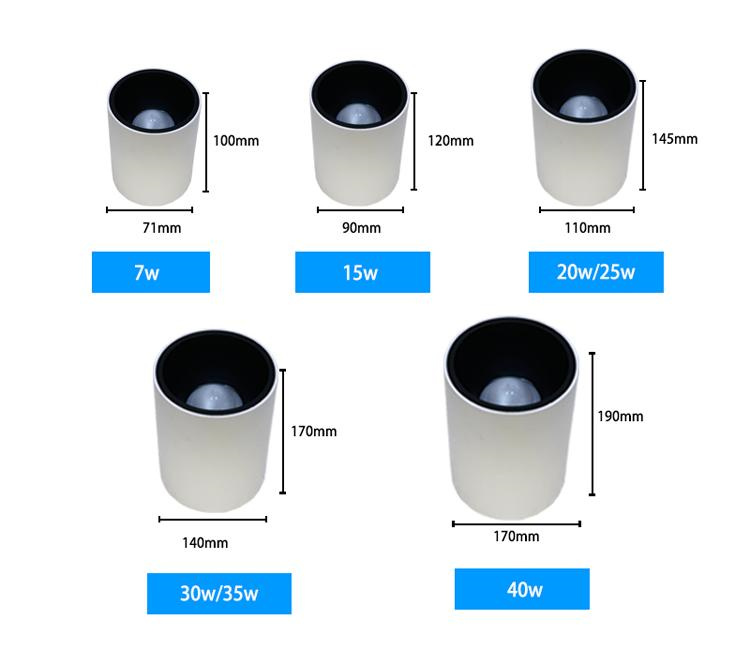

Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL06-10W |
10W |
D71*H100 |
2700K |
|
FT-MDL06-15W |
15W |
D90*H120 |
|
|
FT-MDL06-20W |
20W |
D110*H145 |
|
|
FT-MDL06-25W |
25W |
D110*H145 |
|
|
FT-MDL06-30W |
30W |
D140*H170 |
|
|
FT-MDL06-35W |
30W |
D140*H170 |
|
|
FT-MDL06-40W |
30W |
D170*H190 |
|
|
FT-MDL06-45W |
30W |
D200*H210 |
|
|
FT-MDL06-50W |
30W |
D200*H210 |
MDL06 Modern Outdoor & Indoor Downlight – Weatherproof, Smart & Stylish Lighting Solution
Contemporary Design Meets Outdoor Durability

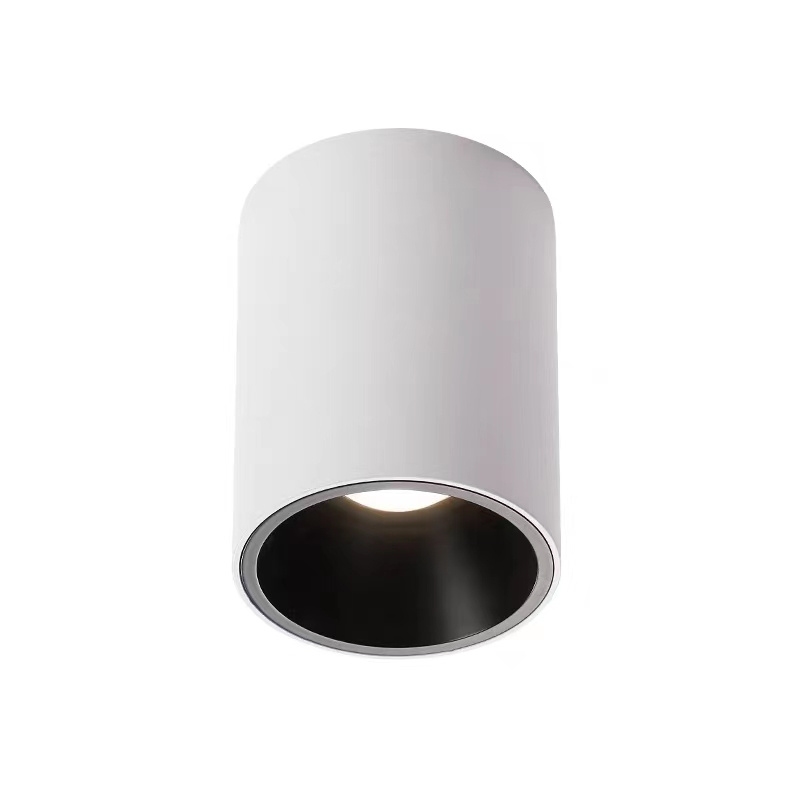

The MDL06 Downlight combines sleek, minimalist aesthetics with rugged outdoor performance, making it the perfect lighting solution for patios, balconies, covered walkways, and even indoor spaces. Crafted with a high-grade aluminum housing, it delivers both elegance and resilience, while its IP65 waterproof rating ensures reliable operation in rain, snow, and dust-prone environments.

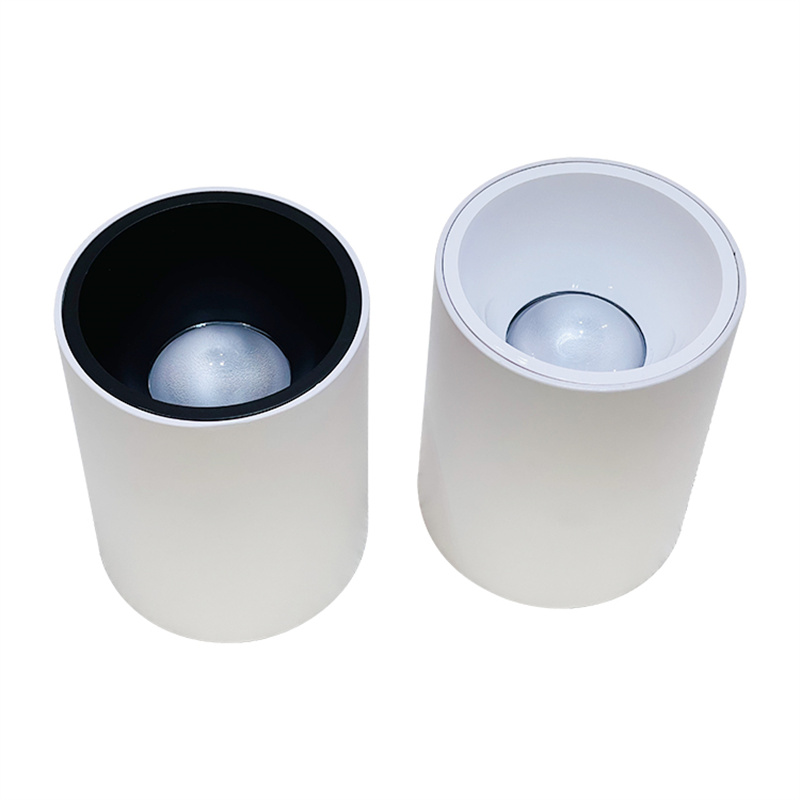

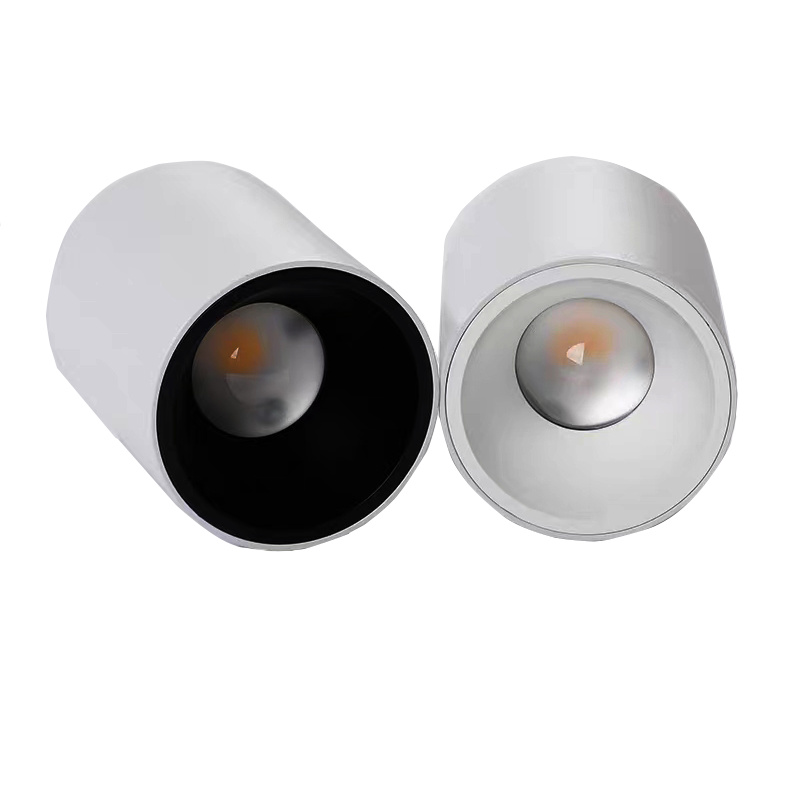

Featuring a versatile installation design, the MDL06 can be mounted as a surface-downlight or suspended ceiling light, adapting effortlessly to different architectural needs. Choose between sophisticated black or crisp white finishes, and further customize the look with three reflector cup options (black, white, or silver) to match your décor perfectly.
Flicker-Free, Eye-Friendly Illumination

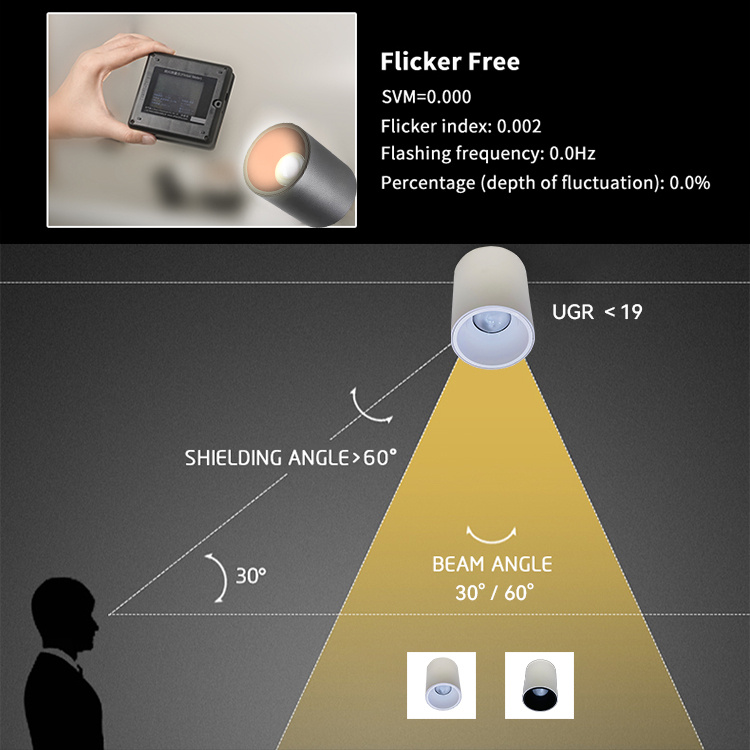

Designed for visual comfort, the MDL06 features flicker-free technology, reducing eye strain and fatigue—ideal for spaces where people spend extended periods. With a UGR (Unified Glare Rating) below 19, it provides soft, uniform lighting without harsh glare, making it suitable for:
✔ Outdoor dining areas & lounges
✔ Covered terraces & balconies
✔ Indoor kitchens & living rooms
✔ Commercial corridors & entryways
Customizable Brightness & Color Temperature
Wide Power Range (10W – 50W) for Every Need
·10W-20W: Perfect for mood lighting in outdoor seating areas or pathways.
·25W-35W: Great for task lighting in covered patios or indoor workspaces.
·40W-50W: Ideal for high-traffic commercial zones or large outdoor installations.
Full CCT Adjustment (2700K – 6500K)
Tailor the ambiance to your preference:
·Warm White (2700K-3000K): Creates a cozy, inviting glow for outdoor lounges and restaurants.
·Neutral White (3500K-4500K): Enhances visibility in kitchens, garages, and retail spaces.
·Cool White (5000K-6500K): Boosts alertness and security in driveways, warehouses, and offices.
Smart Dimming & Advanced Control Compatibility
The MDL06 supports both fixed and tunable white dimming, integrating seamlessly into modern smart lighting systems.
Single CCT Dimming Options
·TRIAC: Works with standard dimmer switches for smooth brightness control.
·0-10V: Allows precise dimming in commercial and architectural setups.
·DALI: Enables individual or zoned lighting control for advanced automation.
Tunable White (CCT Adjustable) Dimming
·2.4G RF Remote: Adjust brightness & color temperature wirelessly from a handheld controller.
·Tuya Smart Home (Zigbee/Bluetooth/Wi-Fi): Control via voice assistants (Alexa, Google) or smartphone apps.
·DALI DT8: Professional-grade dynamic white tuning for high-end lighting projects.
Flexible Installation – Surface or Suspended Mount
Whether you need a flush ceiling look or a suspended fixture, the MDL06 adapts effortlessly:
✔ Surface Mounting: Easy installation on concrete, wood, or drywall ceilings.
✔ Pendant Suspension: Ideal for higher ceilings or decorative lighting setups.

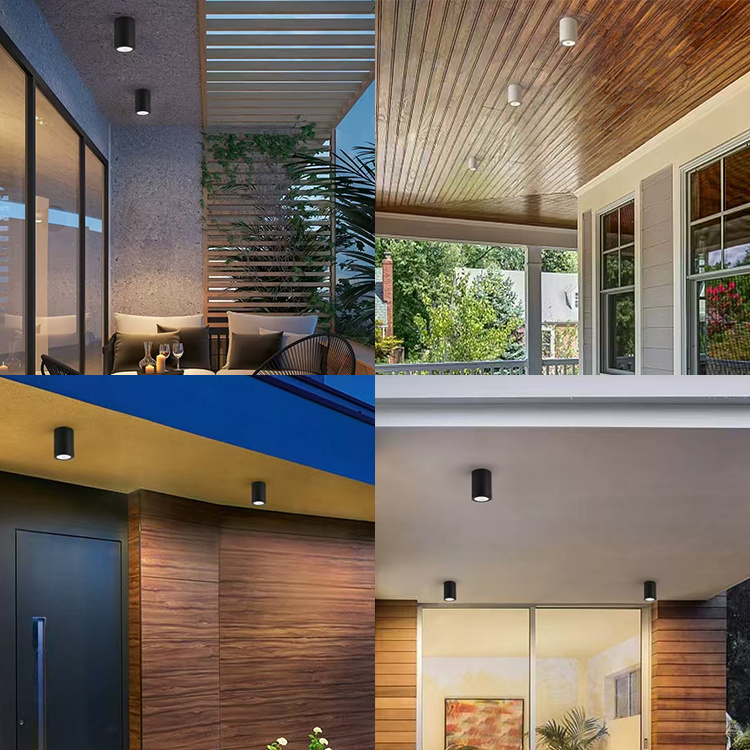

Ideal Applications for Indoor & Outdoor Use
The MDL06’s weatherproof construction and smart features make it perfect for:
✔ Residential: Balconies, pergolas, covered porches, kitchens, living rooms.
✔ Hospitality: Outdoor restaurants, hotel terraces, poolside lounges.
✔ Commercial: Storefronts, entrance canopies, office building exteriors.
Why Choose the MDL06 Downlight?

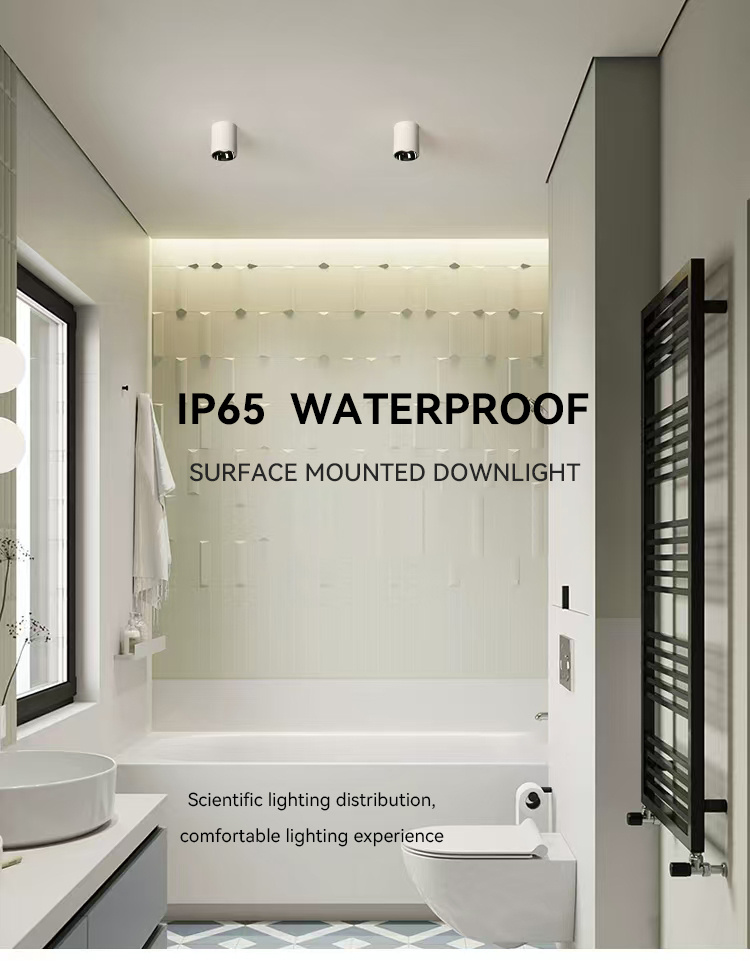

✅ IP65 Waterproof – Built to withstand rain, dust, and humidity.
✅ Anti-Glare & Flicker-Free (UGR<19) – Healthier light for extended use.
✅ Wide Power & CCT Range (10W-50W / 2700K-6500K) – Fully customizable lighting.
✅ Smart Control Ready – Works with TRIAC, 0-10V, DALI, 2.4G, Tuya, and DALI DT8.

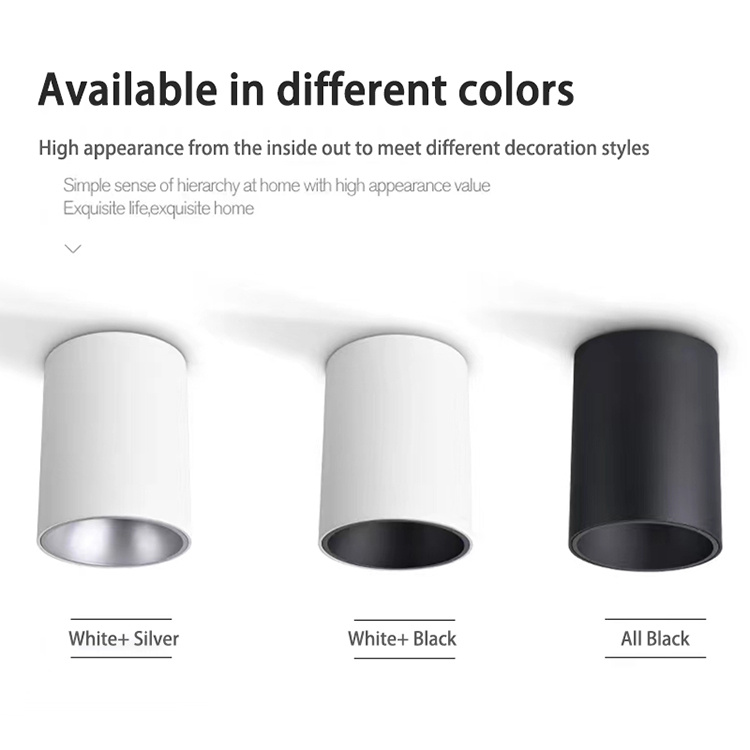

✅ 3 Reflector Cup Colors – Black, white, or silver for design flexibility.
✅ Dual Mounting Options – Surface or suspended for versatile placement.
Upgrade to MDL06 – Where Style Meets All-Weather Performance
Whether illuminating an al fresco dining area, a modern balcony, or an indoor living space, the MDL06 delivers superior light quality, smart functionality, and enduring style.
