IP65 Square LED Spot Light Waterproof HGS21-Square 1 Head
Features：
- Easy Replacement: Tool-less design for quick lamp replacement.
- High Brightness: Powerful LED chip for intense and bright illumination.
- Flicker-Free Free: Flicker-free lighting to reduce eye strain and fatigue.
- Eco-Friendly LED: Mercury-free and UV-free, safe for health and environment.
- Low Heat Emission: Even with long use, the surface remains relatively cool.
- Surge Protection: Built-in surge protection to ensure stability against voltage fluctuations.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 7-20W:0.5 25W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led Waterproof Deep Cup Spot Light |
|
Power |
7W/10W/12W/15W/20W/25W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
Bridgelux/OSRAM Cob Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
15°/24°/36°/55° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
58*55mm/78*75mm/98*95mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
7-20W:0.5 25W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Adjustable led anti-glare spot light |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
FT-HGS21-10W
|
Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-HGS21-7W |
7W |
65*65*H100 |
58*55 |
15°/24°/36°/55° |
|
|
FT-HGS21-10W |
10W |
85*85*H106 |
78*75 |
||
|
FT-HGS21-12W |
12W |
85*85*H106 |
78*75 |
15°/24°/36°/55° |
|
|
FT-HGS21-15W |
15W |
85*85*H106 |
78*75 |
15°/24°/36°/55° |
|
|
FT-HGS21-20W |
20W |
105*105*H126 |
98*95 |
15°/24°/36°/55° |
|
|
FT-HGS21-25W |
25W |
105*105*H126 |
98*95 |
15°/24°/36°/55° |
IP65 Square LED Spot Light | DALI 0-10V Triac Dimmable - Premium Architectural Lighting Solution
When selecting lighting for moisture-prone spaces—whether a steamy bathroom, a humid kitchen, a covered outdoor patio, or a damp commercial corridor—only a fixture built for durability, performance, and universal adaptability will suffice. Our IP65 Waterproof LED Downlight is engineered to be the definitive lighting solution for all wet and damp locations, merging industrial-grade waterproofing with sleek design, eye-friendly illumination, and global compatibility. Crafted to meet strict international standards and modern residential and commercial lighting demands, this recessed spotlight delivers unwavering reliability in high-humidity environments while elevating any space with natural, vivid light and a seamless aesthetic. It is more than a lighting fixture; it is a long-lasting, energy-efficient investment that checks every box for homeowners, designers, and project managers alike.

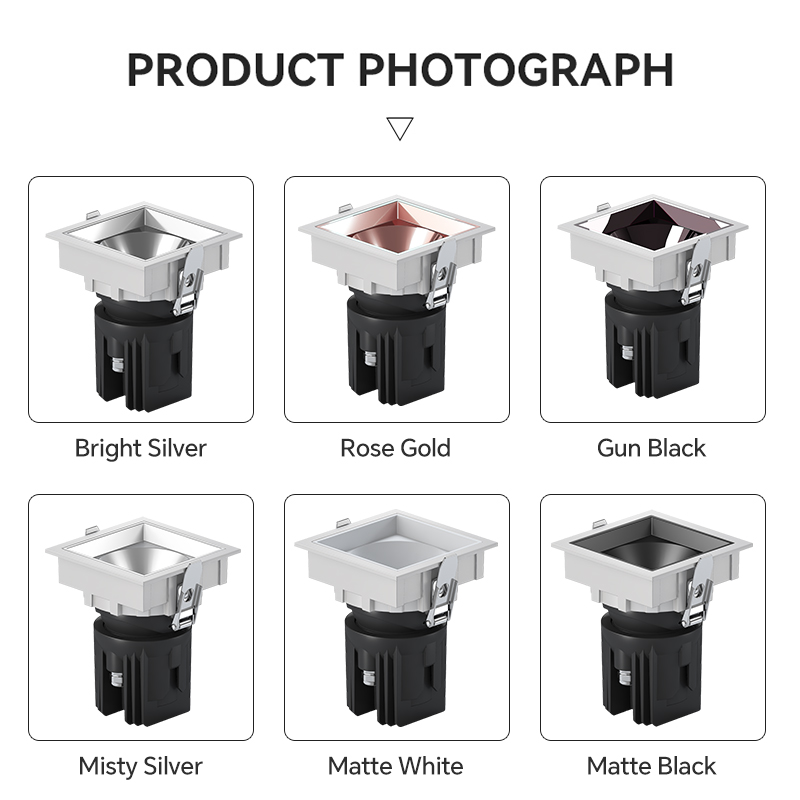

Unmatched Design Flexibility: Customizable Color & Versatile Dimming
We understand that every lighting project has unique requirements, which is why our Square LED Spot Light offers unparalleled design flexibility to match any décor, style, or architectural vision. At the core of this flexibility is our interchangeable inner cup color system, which allows you to tailor the fixture’s appearance to your specific needs—whether you want it to blend harmoniously with the building’s exterior or stand out as a bold design accent.
Choose from a wide range of premium inner cup colors to achieve your desired look: Matte White for a clean, minimalist aesthetic that blends seamlessly with light-colored facades and modern interiors; Matte Black for a sleek, sophisticated finish that adds depth and contrast to dark or neutral surroundings; Matte Silver for a subtle, contemporary shine that complements metallic accents and modern architecture; Gun Black for a bold, industrial-inspired look that makes a statement in urban and modern spaces; Bright Silver for a polished, reflective finish that catches the light and adds a touch of luxury; and Rose Gold for a warm, elegant touch that elevates high-end projects such as luxury hotels and upscale residential properties. This interchangeable system makes it easy to adapt the fixture to different design themes, ensuring consistency across your entire lighting project.
Beyond aesthetic customization, our Square LED Spot Light supports multiple advanced dimming options to meet the demands of smart buildings, energy-saving initiatives, and personalized lighting control. Whether you’re working on a large-scale commercial project or a residential retrofit, we have the dimming solution to fit your needs:
1. 0-10V Dimming: The industry standard for commercial energy-saving controls, 0-10V dimming allows for smooth, precise light adjustment from 0% to 100%, making it ideal for offices, retail spaces, and commercial buildings where energy efficiency is a top priority. This dimming method ensures consistent performance and compatibility with most commercial lighting control systems, helping you reduce energy consumption without compromising on light quality.
2. DALI Dimming: Designed for large-scale automated buildings such as hotels, shopping malls, and office complexes, DALI (Digital Addressable Lighting Interface) dimming offers addressable control, allowing you to adjust individual fixtures or groups of fixtures remotely. This advanced dimming option provides unparalleled flexibility, making it easy to create custom lighting scenes, schedule lighting changes, and integrate with building management systems (BMS) for seamless smart control.
3. Triac Dimming (Leading/Trailing Edge): Perfect for residential retrofit projects and spaces where existing dimmer switches are in place, Triac dimming is compatible with most standard residential dimmer switches. Whether you’re upgrading your home’s outdoor lighting or retrofitting a commercial space, this dimming option ensures easy installation and smooth, flicker-free light adjustment, enhancing the ambiance of any space.
Technical Specifications & Global Compliance: Built for Durability & Reliability
Our IP65 Square LED Spot Light is engineered to withstand the harshest outdoor conditions while delivering consistent, long-lasting performance. Built with premium materials and advanced technology, it offers zero-maintenance operation, ensuring that your lighting project remains functional and beautiful for years to come. Here’s a detailed breakdown of its technical specifications and global compliance:
• Housing: Crafted from high-quality die-cast aluminum, the fixture’s housing is designed for maximum durability and heat dissipation. The corrosion-resistant finish protects against rust, fading, and wear, making it suitable for both indoor and outdoor use—even in coastal areas or regions with harsh weather conditions. The die-cast aluminum construction also ensures that the fixture remains lightweight yet sturdy, making installation quick and easy.
• Optics: Featuring a deep anti-glare design, our Square LED Spot Light delivers precise beam control, minimizing light pollution and ensuring that light is directed exactly where it’s needed. The anti-glare feature reduces eye strain and creates a more comfortable lighting environment, making it ideal for spaces where light quality is paramount—such as hotel lobbies, residential gardens, and commercial plazas. The precise beam control also allows you to highlight specific architectural details, plants, or decorative elements, adding depth and dimension to your space.
• Electrical: Equipped with a wide voltage AC100-277V 50/60Hz driver, this fixture is compatible with power grids worldwide, making it a versatile choice for global projects. The Plug & Play design ensures easy installation, with no additional wiring or modifications needed for different voltage standards—whether you’re working in the USA (110V), Europe (230V), Saudi Arabia (220V), or other regions. The driver is also engineered for energy efficiency, reducing power consumption and lowering your operating costs.
• Waterproof Rating: With an IP65 weatherproof rating, our Square LED Spot Light is fully protected against dust, rain, snow, and splashes, ensuring reliable operation in even the most challenging outdoor environments. Whether it’s exposed to heavy rain, extreme temperatures, or dusty conditions, this fixture will continue to perform at its best, making it ideal for outdoor landscape lighting, poolside accents, building facade washing, and other outdoor applications.
• Certifications: We understand the importance of compliance in global markets, which is why our Square LED Spot Light is fully certified to meet the highest industry standards. It complies with CE (European Conformity), RoHS (Restriction of Hazardous Substances), SAA (Australian Safety Approval), EMC (Electromagnetic Compatibility), and LVD (Low Voltage Directive) certifications, ensuring that it meets the safety, environmental, and performance requirements of markets worldwide. This means you can rest assured that your project will pass local inspections effortlessly, avoiding delays and additional costs.
• Warranty: Backed by a 5-year warranty, our Square LED Spot Light offers peace of mind and long-term value. We stand behind the quality of our products, and our warranty covers any defects in materials or workmanship, ensuring that you receive a reliable, high-performance fixture that will last for years to come. This warranty is a testament to our commitment to quality and customer satisfaction, making us a trusted partner for your lighting projects.
Why Choose Our Square LED Spot Light? The Ultimate Lighting Solution
With so many LED spotlights on the market, what sets our IP65 Square LED Spot Light apart? Here are the key reasons why it’s the perfect choice for your next architectural or landscape lighting project:
- Unrivaled Versatility: Designed for both indoor and outdoor use, this fixture is suitable for a wide range of applications, including outdoor landscape lighting, poolside accents, building facade washing, hotel lobbies, villa gardens, commercial plazas, retail spaces, and more. Its wide voltage compatibility and multiple dimming options make it a versatile choice for global projects, whether you’re working on a small residential retrofit or a large-scale commercial development.
- Trendsetting Aesthetics: The square shape is a rising trend in modern European architecture, offering a sleek, contemporary alternative to traditional round spotlights. Its clean lines and customizable inner cup colors allow it to adapt to any design style, from minimalist and modern to luxurious and elegant. Whether you want the fixture to blend into the background or stand out as a decorative element, it delivers the perfect aesthetic for your project.
- Global Compliance & Peace of Mind: Our fixture is fully certified to meet the highest industry standards, ensuring that it complies with local regulations in the USA, Europe, Middle East, Southeast Asia, and other regions. This means you can avoid costly delays and inspections, and rest assured that your project is up to code. The 5-year warranty also provides added peace of mind, knowing that you’re investing in a reliable, long-lasting product.
- Energy Efficiency & Cost Savings: Equipped with an energy-efficient driver and LED technology, our Square LED Spot Light consumes less power than traditional lighting fixtures, reducing your energy bills and carbon footprint. The dimming options also allow you to adjust light levels based on your needs, further optimizing energy consumption. With zero-maintenance operation, you’ll also save on maintenance costs over the life of the fixture.
- Easy Installation & Maintenance: The Plug & Play design and lightweight construction make installation quick and easy, even for large-scale projects. The corrosion-resistant housing and durable materials ensure that the fixture requires no maintenance, allowing you to focus on other aspects of your project. Whether you’re a professional lighting installer or a DIY enthusiast, you’ll appreciate the ease of installation and long-term reliability of this fixture.

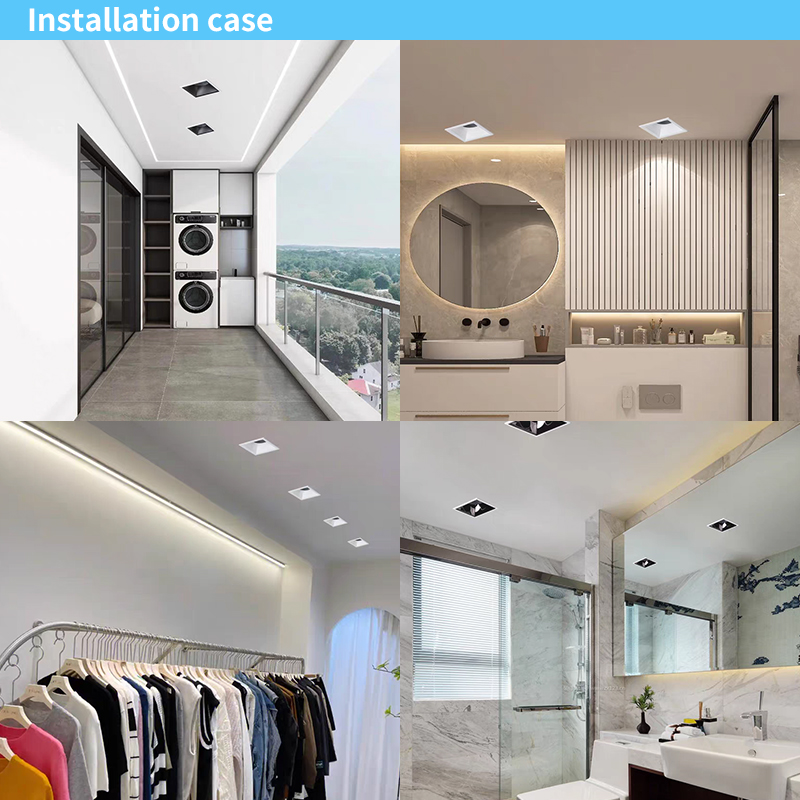

Application Scenarios: Transform Any Space
Our IP65 Square LED Spot Light is designed to transform any space, adding beauty, functionality, and ambiance to a wide range of applications. Here are just a few examples of how you can use this fixture to elevate your projects:
- Hotel & Hospitality: Use the fixture to highlight hotel facades, illuminate outdoor patios and pool areas, or create a welcoming ambiance in lobbies and reception areas. The customizable colors and dimming options allow you to create a luxurious, inviting atmosphere that impresses guests.
- Luxury Villas & Residential Properties: Enhance your home’s exterior with landscape lighting, highlight garden features, or illuminate poolside areas. The sleek square design adds a touch of modern elegance to your property, while the IP65 rating ensures reliable performance in all weather conditions.
- Commercial Plazas & Retail Spaces: Use the fixture to illuminate storefronts, highlight architectural details, or create a vibrant atmosphere in public plazas. The dimming options allow you to adjust light levels based on the time of day, creating a dynamic lighting experience that attracts customers.
- Public Spaces & Landscapes: Illuminate parks, gardens, monuments, and public squares with our durable, weatherproof fixture. The precise beam control allows you to highlight specific features, while the IP65 rating ensures reliable operation in outdoor environments.
At Fitlight Lighting, we are committed to delivering high-quality, innovative lighting solutions that meet the needs of global projects. Our IP65 Square LED Spot Light is the result of years of research and development, designed to provide unparalleled performance, versatility, and aesthetics. Whether you’re a professional lighting designer, contractor, or homeowner, this fixture is the perfect choice for your next lighting project.
Invest in the best—choose our IP65 Square LED Spot Light and elevate your architectural and landscape lighting to new heights. With its customizable design, versatile dimming options, global compliance, and long-lasting durability, it’s the ultimate lighting solution for any project, anywhere in the world.
