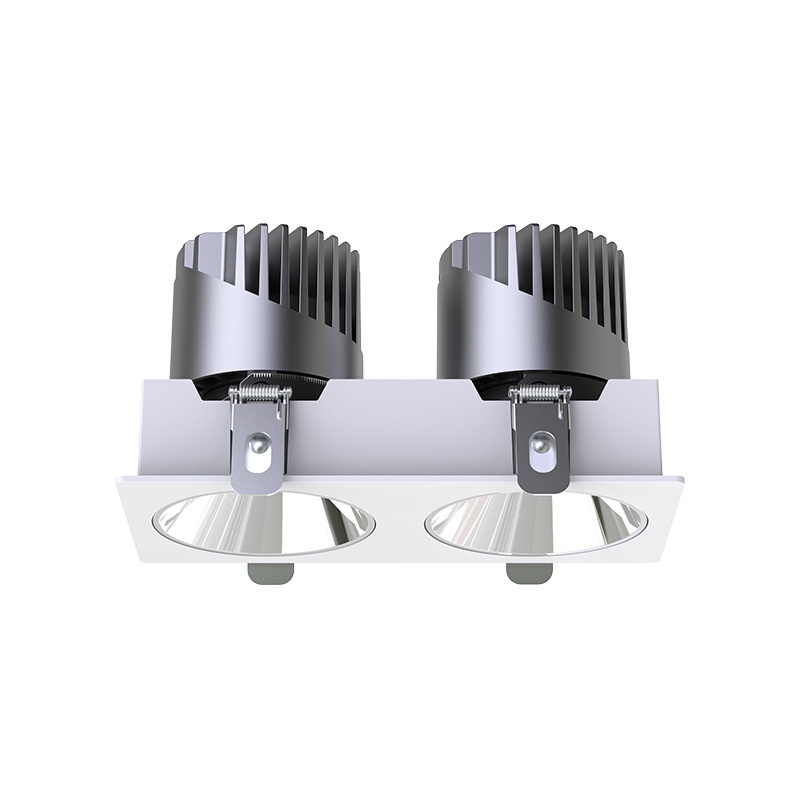

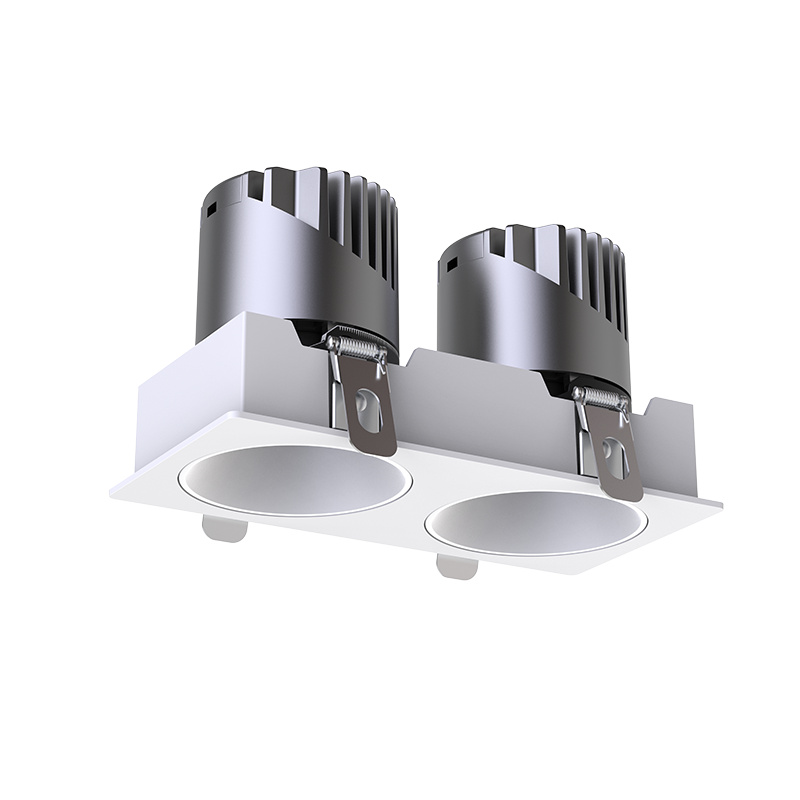

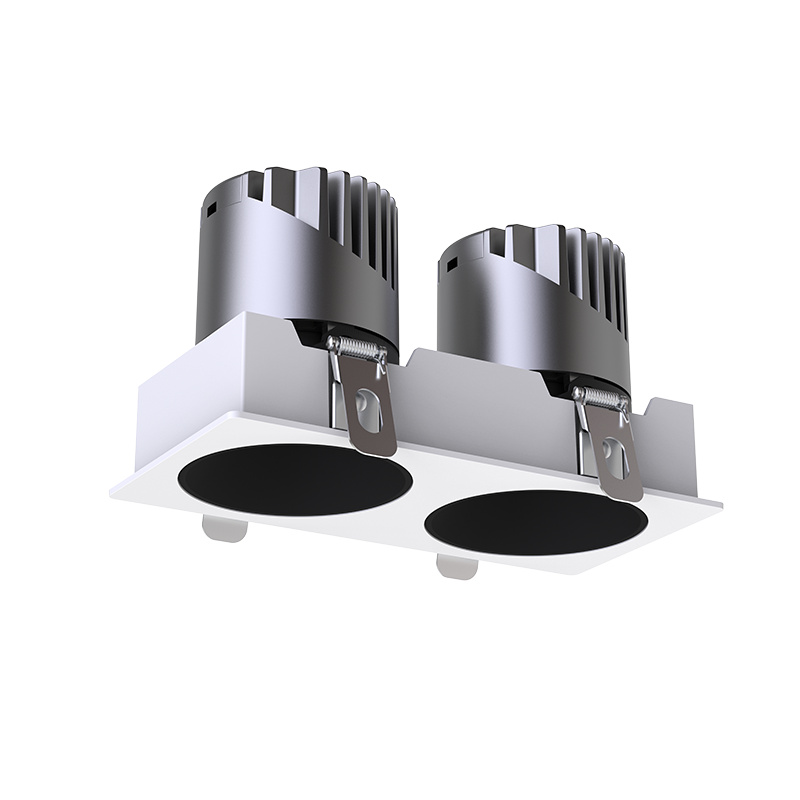

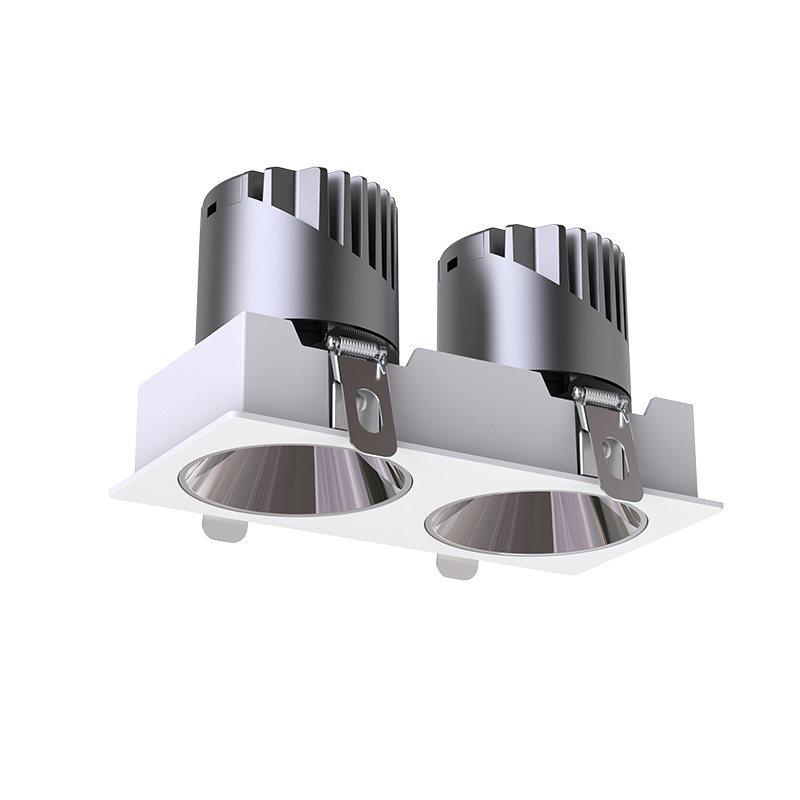

Recessed Ceiling Double Spotlight Fixture for Home FT-HGS10
Features:
● Ultra-Low UGR (<19)

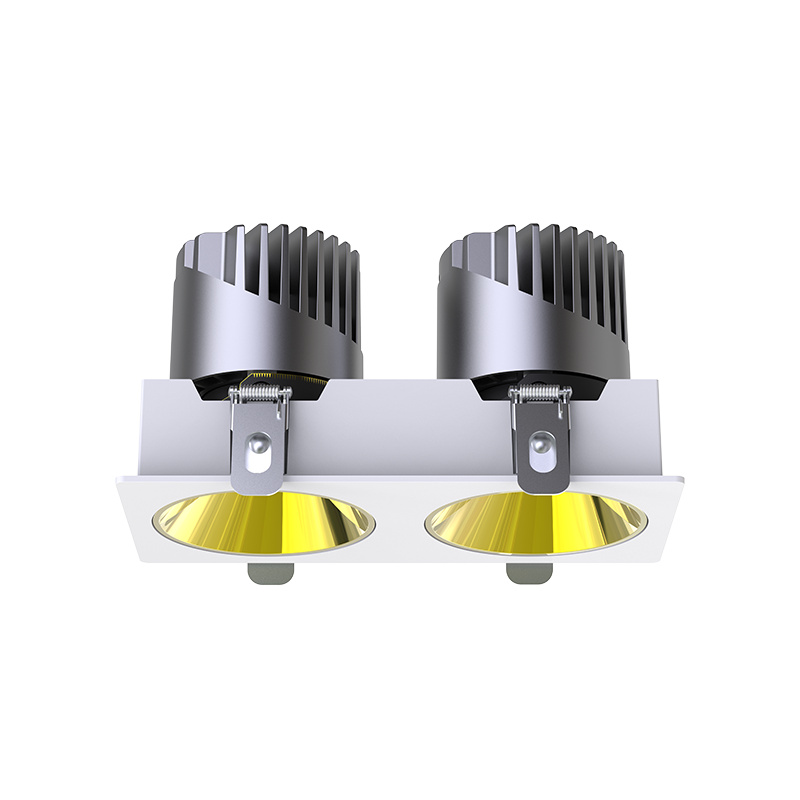

● Reflector Color Options
● Modular Design Flexibility
● Deep Recessed Optics (≥30mm)
● Multi-Layer Anti-Glare System
● Flicker-Free Dimming (1%-100%)
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 2*7W/2*10W/2*12W/2*15W/2*20W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 8°/15°/24°/38°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 165*75MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

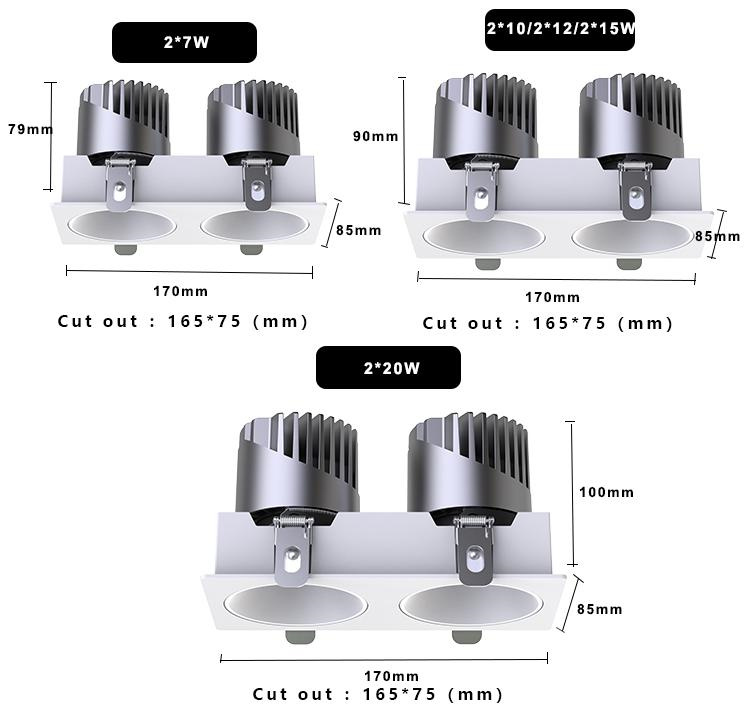

Model No. |
Watts |
Size(mm) |
Cut Out |
LED Color |
|
FT-HGS10-7W*2 |
7W*2 |
170*85*79MM |
165*75MM |
2700K
|
|
FT-HGS10-10W*2 |
10W*2 |
170*85*90MM |
165*75MM |
|
|
FT-HGS10-12W*2 |
12W*2 |
170*85*90MM |
165*75MM |
|
|
FT-HGS10-15W*2 |
15W*2 |
170*85*100MM |
165*75MM |
|
|
FT-HGS10-20W*2 |
20W*2 |
170*85*100MM |
165*75MM |

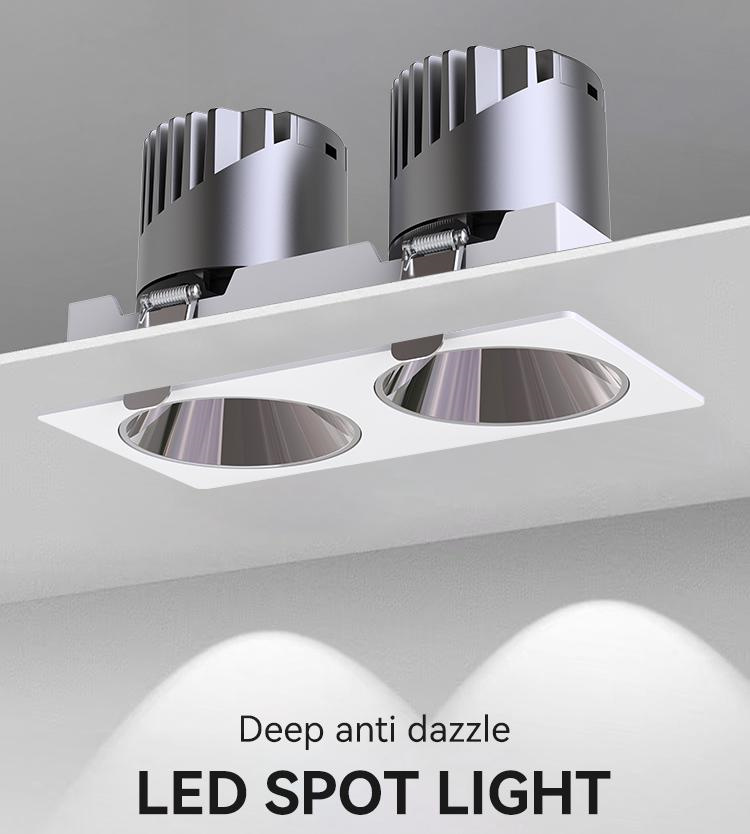

Double head spotlight
This dual-head spotlight combines two adjustable light sources in a lamp body, expanding coverage and brightness. The twin-head design enhances illumination by merging the output of both lamps, delivering powerful, focused lighting where you need it.
Reduce the number of opening holes in the ceiling, installation is simpler and more cost-effective.
Deep Anti-Glare Design
This downlight features a deeply recessed design that hides the light source completely, eliminating harsh glare while providing smooth, even illumination.
• Deep-set design prevents direct glare for comfortable visibility
• Gentle, natural light reduces eye strain in any setting
• Sleek, low-profile look maintains a clean ceiling appearance (no visible fixtures)
• Ideal for any space where both lighting performance and style are important
Different Beam Angles for Precision Lighting
This spotlight offers five precision beam angles (8°/15°/24°/38°/55°) to suit any lighting need:
8° Ultra-Narrow Beam
• Pinpoint accuracy for fine details
• Ideal for jewelry displays, gallery pieces
15° Narrow Spot – Sharp accent lighting; Perfect for artwork, high-end retail
24° Medium Flood – Even task lighting; Great for kitchens, office desks
38° Wide Flood – Broad coverage; Best for living rooms, dining spaces
55° Extra-Wide Flood – Spacious ambient light; Ideal for ceilings, large entryways

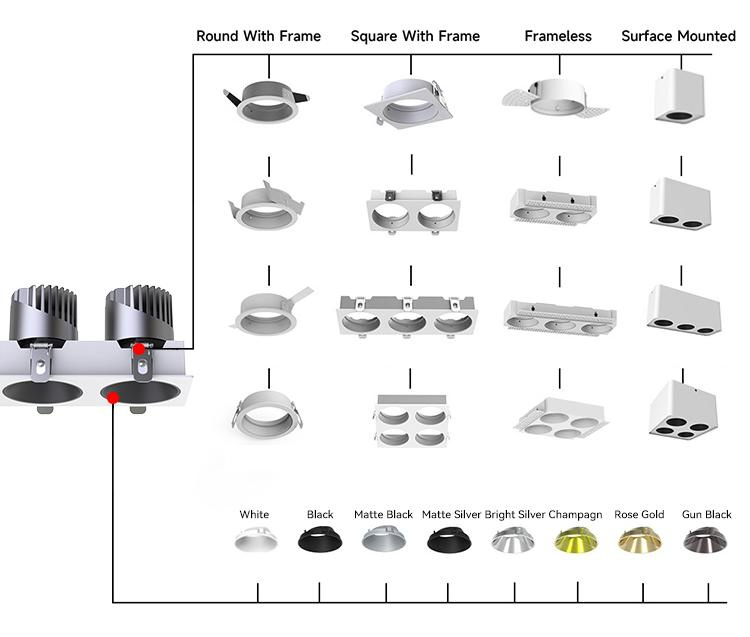

Modular Spotlight System – The Smart Lighting Choice
This innovative spotlight system offers a flexible modular design, letting you mix and match components to create the perfect lighting setup for any room.
Available Options:
Design Styles:
• Round spotlights (classic and stylish)
• Square spotlights (modern and clean)
Light Configurations:
• Single-head (for precise accent lighting)
• Double-head (for balanced lighting)
• Three-head (for wider coverage)
• Quad-head (for full, even brightness)
Versatile Lighting Options: Choose from 7W 10W 12W 15W 20W
Find your perfect brightness with our premium spotlights, available in multiple wattages to suit any space:
Brightness Guide:
• 7W - Soft glow for display cases and decorative lighting
• 10W - Ideal for home workspaces and cozy reading nooks
• 12W - Perfect for boutique shops and stylish retail displays
• 15W - Great for restaurant tables and café seating areas
• 20W - Powerful lighting for art galleries and special exhibits
Smart Lighting Control Options
Choose the perfect lighting control for your needs:
Dimmer Choices:
• Works with regular wall dimmers (Triac)
• Professional 0-10V dimming
• DALI network control for advanced setups
Adjustable White Light (Warm to Cool):
Change from cozy warm (2700K) to bright cool (6500K) light
Wireless Control:
Works with: Bluetooth, WiFi, Zigbee smart home systems
Pro Wired Control:
Uses standard DALI DT8 for professional installations
Smart Features:
• Smooth color changes
• No flickering - easy on the eyes
• Works with all major smart home systems

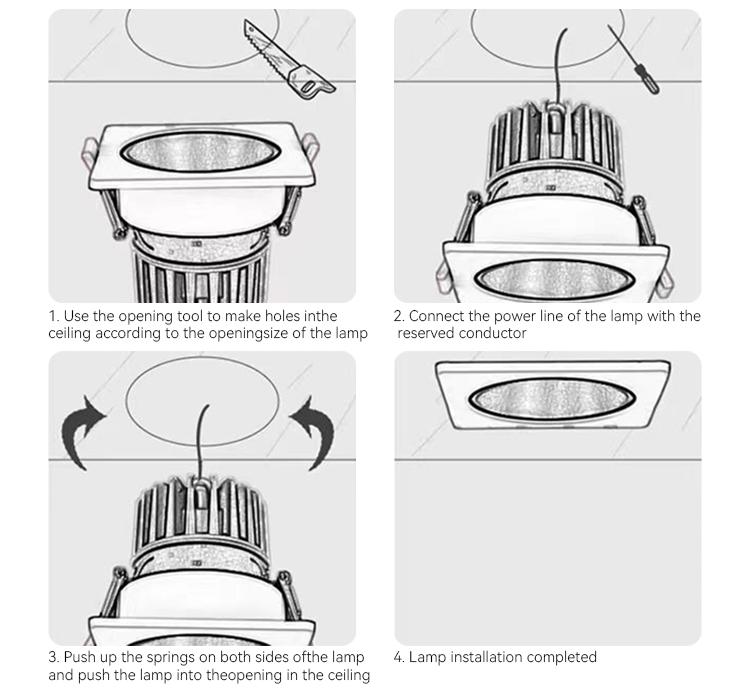

Easy to install
1. Make holes according to the opening size of lamps
2. Connect to 220V household electricity (regardless of zero and live line)
3. Push up the snap
4. Turn on the lamp for test, and the installation is completed
Safety Tip: Always ensure the circuit is de-energized during installation.

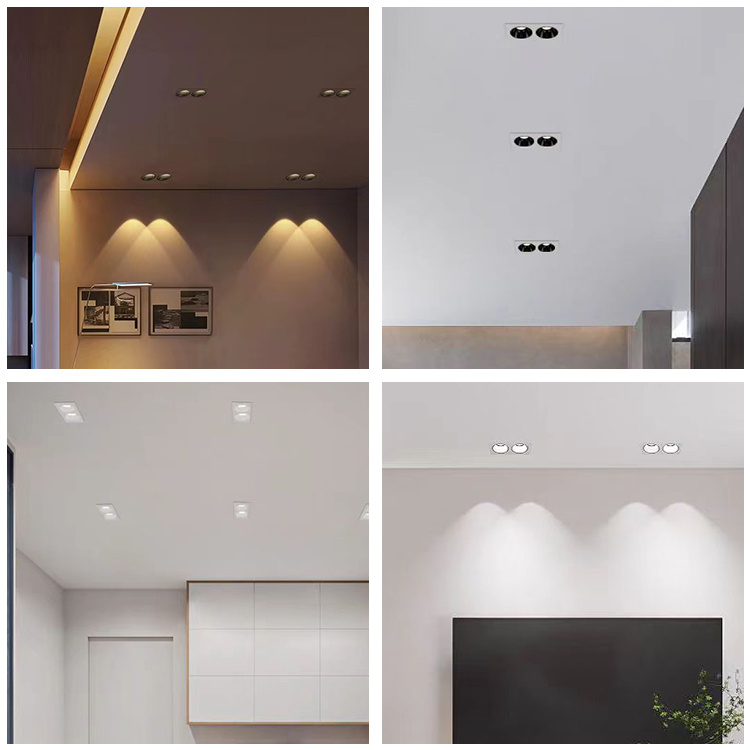

Application
Retail displays, Museum lighting , Residential spaces, Work areas
Adaptable Illumination: Modular Square Anti-Glare Spotlights (2/3/4 Heads)
Our modular square recessed spotlights redefine versatility, combining precise anti-glare performance with flexible multi-head designs. Engineered as integrated matrix systems within a single architectural frame, they deliver targeted lighting solutions for demanding commercial and residential spaces where concentrated output and visual comfort are paramount.
Key Applications & Advantages:
1. High-Intensity Task Zones:
● Applications: Commercial kitchens (prep stations), laboratory benches, workshop task areas, assembly lines, garage workbenches.
● Advantages: Dual-head modules concentrate high lumen output precisely where intense, shadow-free illumination is critical. The square frame ensures neat alignment over work surfaces, while integrated anti-glare optics (UGR<19) prevent eye strain under bright light.
2. Premium Display & Feature Lighting:
● Applications: Boutique retail displays (jewelry, cosmetics), gallery plinths, museum exhibits, high-end residential feature walls.
● Advantages: Triple-head configurations create dynamic focal clusters. Adjustable heads allow directional highlighting from multiple angles within one aperture, enhancing object dimensionality. Deep-recessed modules eliminate distracting glare on glass or glossy finishes.
3. Wide-Area Ambient with Uniformity:
● Applications: Conference rooms, open-plan offices, hotel lobbies, classroom centers, low-ceiling basements requiring broad coverage.
● Advantages: Quad-head systems deliver expansive, seamless ambient light from a single cutout. Strategically spaced emitters within the frame achieve superior uniformity (minimizing hotspots) and eliminate the "cave effect" in constrained spaces. Wide flood optics (e.g., 55°) enhance spatial perception.
Modular System Benefits:
● Simplified Installation & Ceiling Integrity: One large aperture replaces multiple small cutouts, drastically reducing installation time, minimizing ceiling weakening, and maintaining structural aesthetics. Compatible with standard large junction boxes.
● Design Flexibility: Scale light intensity (lumens) and coverage density by selecting 2, 3, or 4-head modules within the same sleek square profile. Ideal for retrofits or custom layouts.
● Optimized Performance: Each head incorporates independent high-efficacy LEDs with advanced micro-prismatic lenses or deep baffles, ensuring consistent ultra-low glare (UGR<19 typical) and uniform color (CRI>90) across all configurations.
● Streamlined Aesthetics: Achieve complex lighting schemes with a clean, geometric footprint. The unified square frame presents a minimalist, professional appearance, superior to clustered single fixtures.
Ideal for architects and designers seeking efficient, high-impact lighting with reduced ceiling penetrations. Our modular downlights merge powerful adaptability with uncompromising visual comfort.
