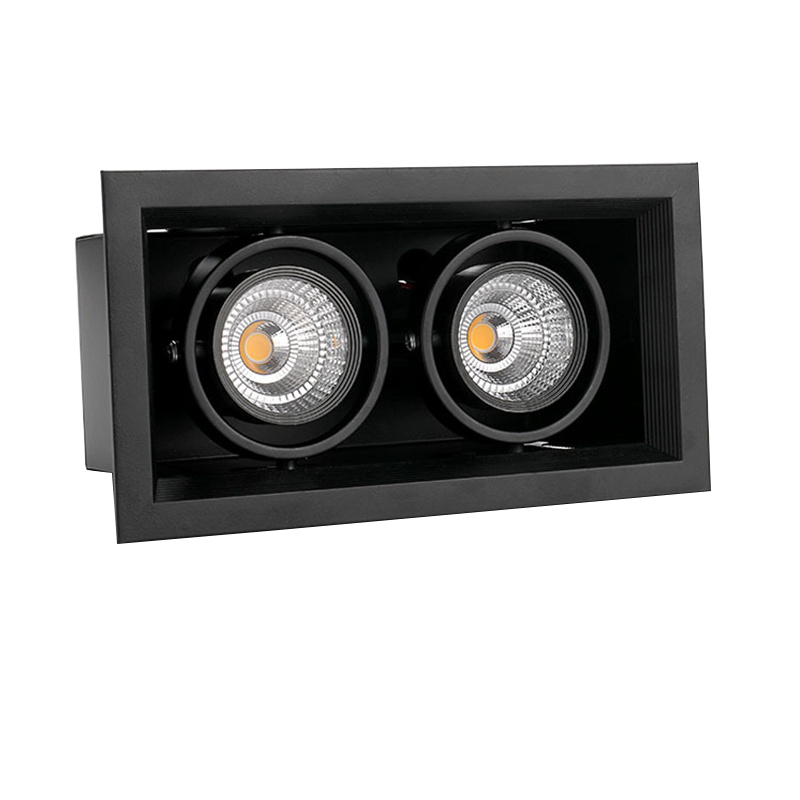

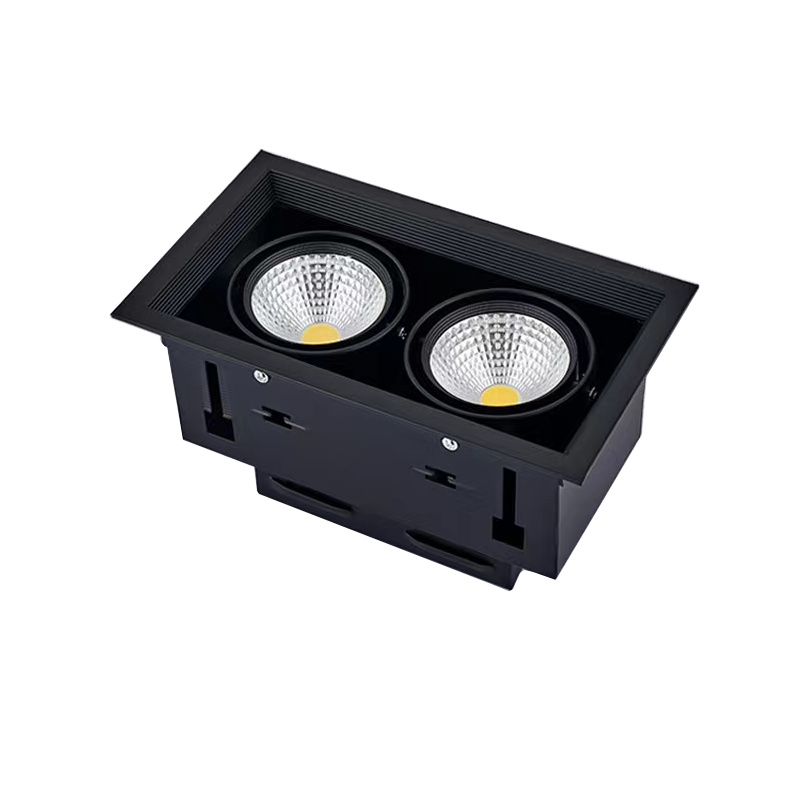

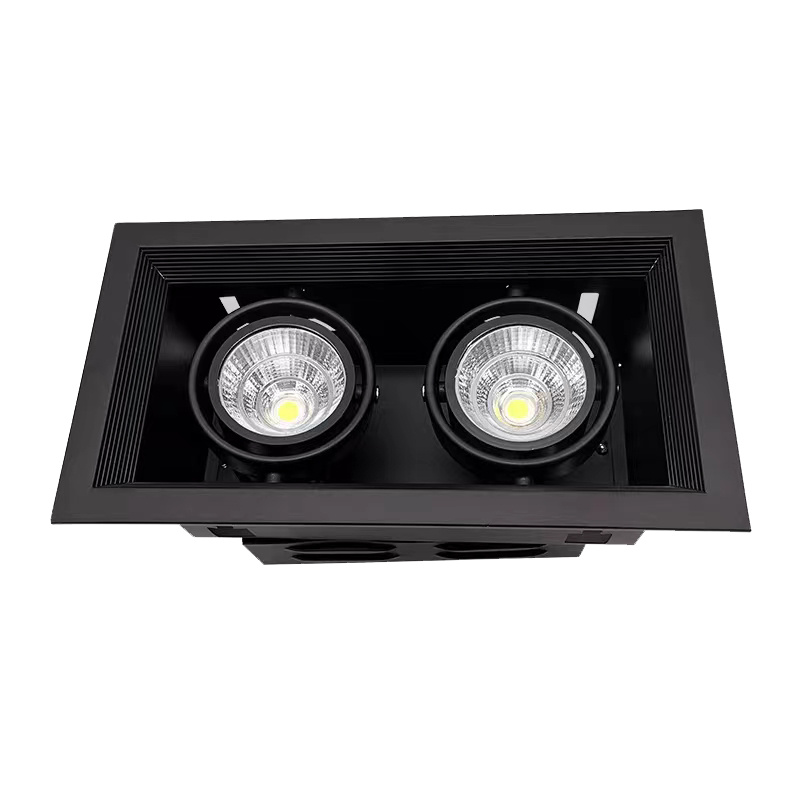

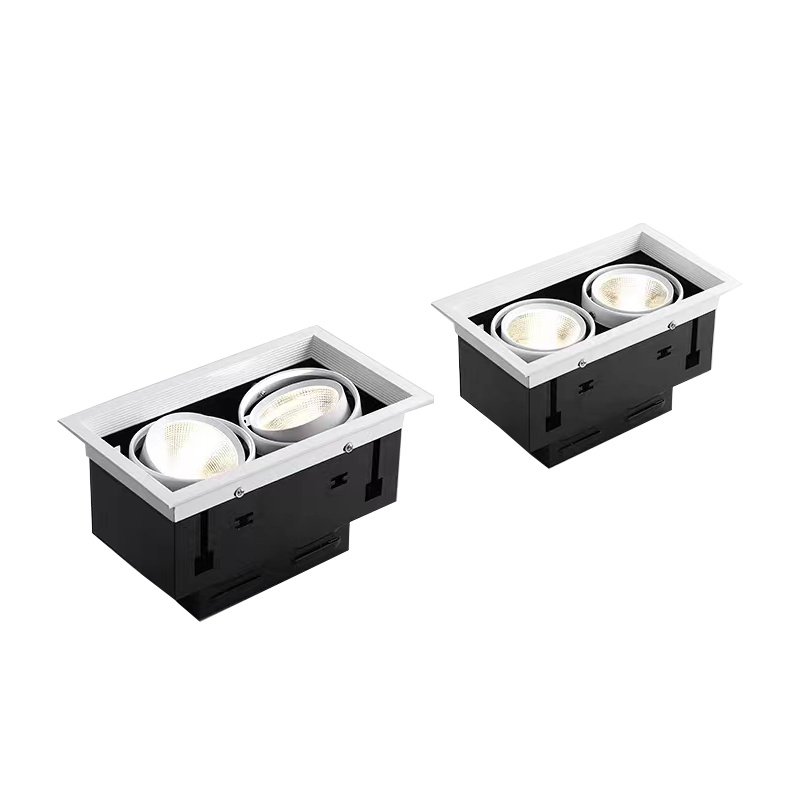

Recessed Double Lighting Led Downlight for Ceiling Tiles Made in China FT-GL01*2
Features:
● Snap-In Installation，aluminum Housing
● Dimmable Function,long Lifespan,IP44 Rated
● RoHS Compliant–Free from hazardous substances
● Low Heat Emission–Safe for prolonged operation
● Wide Voltage Range–AC100-277V for global compatibility
● Corrosion-Resistant,low Heat Emission,5-Year Warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-30W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Dual-head Grille Downlight |
| Power | 3*5W/3*7W/3*10W/3*15W/3*20W/3*25W/3*30W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°,24° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 100*100/145*145/165*165MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-30W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

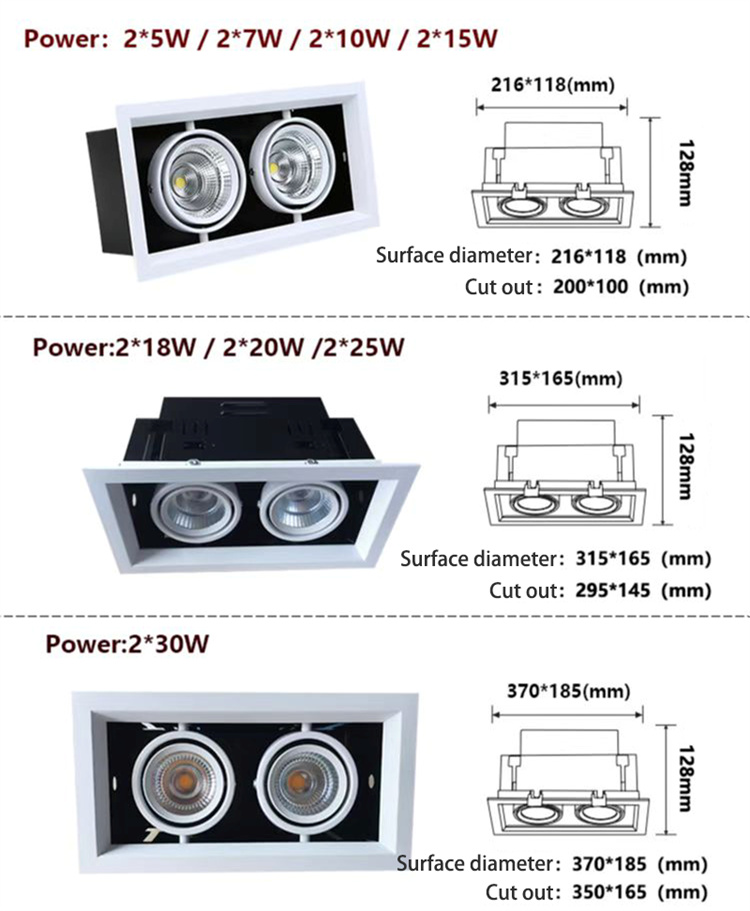

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL01-3*5W |
3*5W |
306*120 |
285*100 |
2700K
|
|
FT-GL01-3*7W |
3*7W |
306*120 |
285*100 |
|
|
FT-GL01-3*10W |
3*10W |
306*120 |
285*100 |
|
|
FT-GL01-3*15W |
3*15W |
306*120 |
285*100 |
|
|
FT-GL01-3*20W |
3*20W |
425*165 |
405*145 |
|
|
FT-GL01-3*25W |
3*25W |
425*165 |
405*145 |
|
|
FT-GL01-3*30W |
3*30W |
500*185 |
480*165 |
Premium Multi-Head LED Grid Light System - Modern Design with Unmatched Versatility
Next-Generation Lighting Solution for Commercial & Residential Spaces
Introducing our advanced LED grid lighting system that redefines modern illumination. Engineered with three integrated LED heads in a single sleek aluminum housing, this innovative fixture delivers superior light coverage while dramatically reducing installation complexity. Perfect for offices, retail environments, and industrial applications, our grid light combines cutting-edge design with exceptional functionality to meet the most demanding lighting requirements.
Revolutionary Features & Benefits
1. Three-Head Integrated Design - Installation Made Simple
· Single-unit construction eliminates multiple cutouts - installs as easily as standard panel lights
· Contemporary square profile blends seamlessly with modern architectural styles
· Significant cost savings - up to 60% reduction in labor compared to installing individual fixtures
· Clean, unified appearance - no more cluttered ceiling layouts
2. High-Efficiency Power Options (3×5W to 3×30W)
Customize brightness for any application:
· 3×5W-3×10W: Perfect for accent lighting (lobbies, hallways, decorative applications)
· 3×15W-3×20W: Ideal general lighting (offices, conference rooms, retail spaces)
· 3×25W-3×30W: High-output solution (warehouses, manufacturing floors, gymnasiums)
Delivers 3x coverage area of conventional single-head fixtures
3. Precision 180° Adjustable Heads
· Independent control of all three light heads
· Eliminate dark zones by directing light exactly where needed
· Create dynamic lighting scenes - perfect for retail displays or task areas
· Maintains perfect alignment - no sagging or drifting over time
4. Full Spectrum Color Temperature Selection
Match lighting to your environment's mood and function:
· 2700K-3500K: Warm, inviting atmosphere (restaurants, hotels, residential)
· 4000K-5000K: Crisp, productive lighting (offices, classrooms, clinics)
· 6000K: Daylight clarity (industrial facilities, garages, laboratories)
5. Dual Beam Angle Options
· 15° Spot Beam: Precision lighting for displays and workstations
· 24° Flood Beam: Even illumination for general area coverage

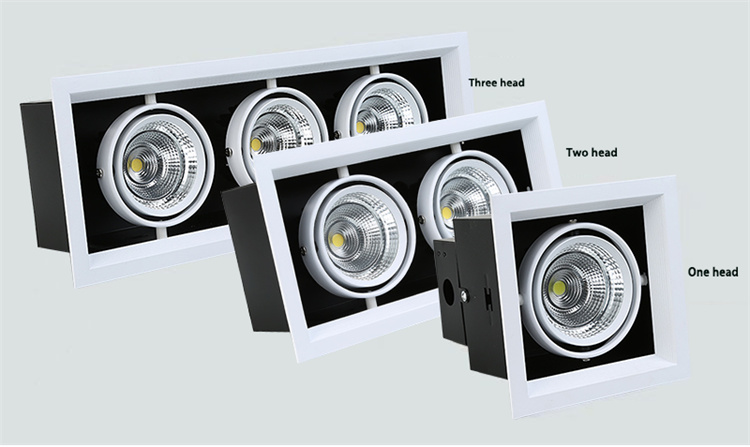

6. Modular Configuration Choices
Select the perfect setup for your space:
· Single-head: Focused task lighting solution
· Double-head: Balanced illumination for medium areas
· Three-head (flagship): Maximum coverage and flexibility
7. Premium Aluminum Construction
· Aerospace-grade aluminum housing ensures optimal heat dissipation
· 50,000+ hour lifespan - reduces maintenance costs significantly
· Corrosion-resistant finish for durability in demanding environments
· Lightweight yet rugged - weighs 30% less than steel alternatives
Technical Excellence
· Material: High-grade aluminum body with tempered glass diffuser
· Voltage: 100-277V (universal voltage compatibility)
· Color Rendering: CRI ≥90 (exceptional color accuracy)
· Certifications: CE, RoHS, SAA, LVD,EMC,ISO9001
· Warranty: Industry-leading 5-year coverage
Ideal Applications
· Corporate Spaces: Boardrooms, open offices, reception areas
· Retail Environments: Boutiques, showrooms, gallery lighting
· Hospitality: Hotel lobbies, restaurants, lounge areas
· Industrial: Warehouses, factories, workshops
· Healthcare: Clinics, laboratories, examination rooms

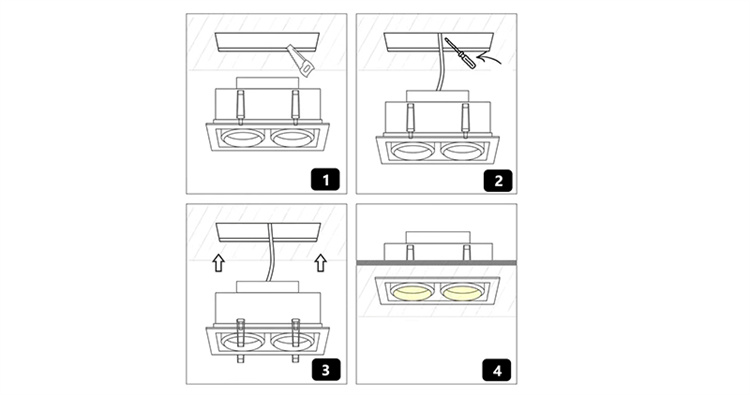

How To Install Quickly
Installation of Light with springs:
The instalation method can be instaed according to the installation diagramoftheluminaire.The instalation position ofthe luminaire is selected by theembedded installation, and the hanging parts,cables,instalation tools, etc.required forinstallation are prepared. The luminaires are led out according to relevantspecifications, and the luminalres are hanged by hanging parts,etc,The back cover is pre-selected and properly hung or embedded to the pre-selected position.
1. Make holes in the ceiling according to the size of the lamp
2. Connect the power cord of the lamp with the reserved conductor .

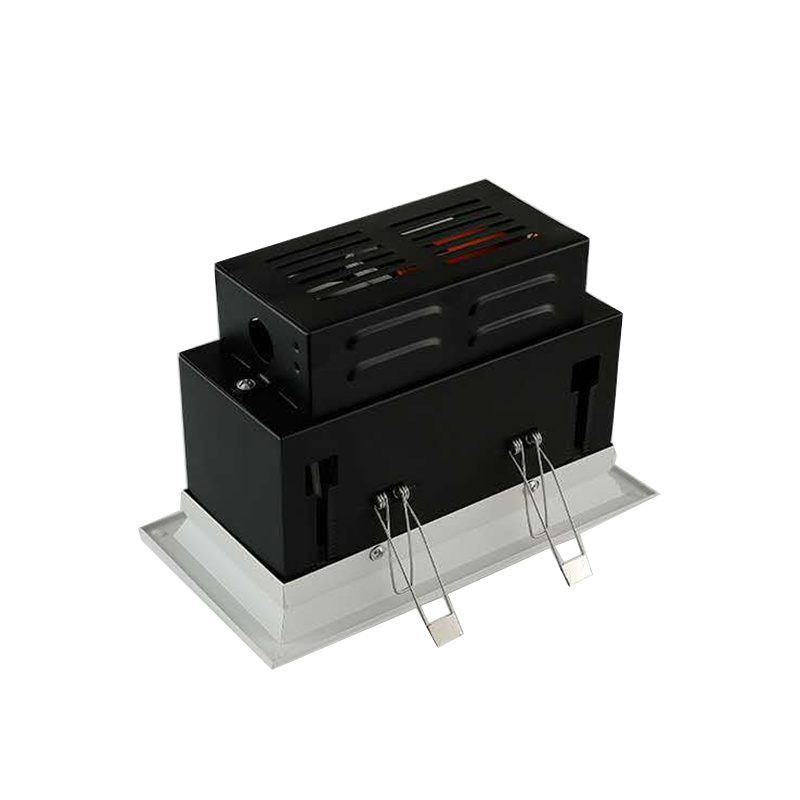

3. The spring clips on both sides of the lamp shall be vertical, and the lamp shall be installed in the ceiling with holes.
4. After confirming the size of the opening and the fitting of the lamp, put down thespring buckle. After the installation of the lamp is completed, the power can be turned on for use.
The front-end power supply must be cut off during installation. The power supply must be cut off when repairing or replacing parts.
