Square Recessed Led Grille Pot Lighting Downlight FT-GL01
Features:
● High CRI >90
● Flicker-Free Technology
● Multi-Head Options – single, double, or triple-head
● Compatible with leading dimmer systems (optional)
● Saves up to 80% energy vs. traditional lighting
● Aluminum Housing–Lightweight yet durable heat dissipation
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 5-20W：0.5 ; 25W-30W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Grille Downlight |
| Power | 5W/7W/10W/15W/20W/25W/30W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°,24° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 100*100/145*145/165*165MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 5W-20W: 0.5 ; 25W-30W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

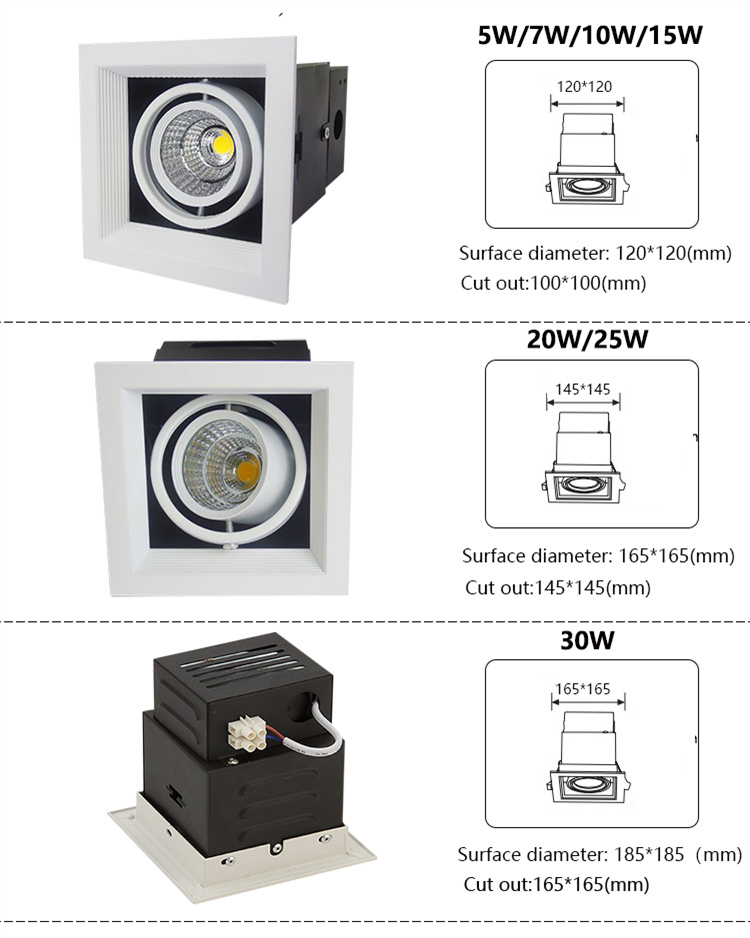

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL01-5W |
5W |
120*120 |
100*100 |
2700K
|
|
FT-GL01-7W |
7W |
120*120 |
100*100 |
|
|
FT-GL01-10W |
10W |
120*120 |
100*100 |
|
|
FT-GL01-15W |
15W |
120*120 |
100*100 |
|
|
FT-GL01-20W |
20W |
165*165 |
145*145 |
|
|
FT-GL01-25W |
25W |
165*165 |
145*145 |
|
|
FT-GL01-30W |
30W |
185*185 |
165*165 |
Modern LED Grille Light – Adjustable Multi-Head Design for Precision Lighting
Ultimate Flexibility & Customization for Your Space
Upgrade your commercial, retail, or residential lighting with our sleek, modern LED grille light. Designed for versatility and performance, this fixture offers adjustable heads, multiple power options, and customizable light settings to fit any environment. Whether you need focused task lighting or broad ambient illumination, our Grille light delivers high efficiency, durability, and style.
Key Features & Benefits

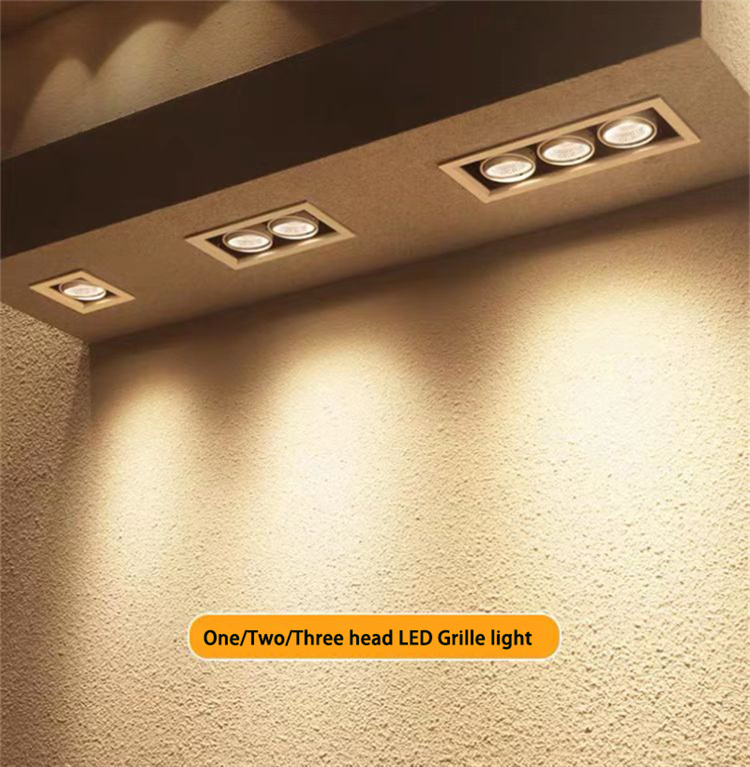

1. Single, Double, or Triple Head Options – Perfect for Any Lighting Layout
Choose between 1-head, 2-head, or 3-head configurations to match your lighting needs.
·Single-head: Ideal for focused task lighting (e.g., retail displays, workstations).
·Double-head: Provides balanced illumination for offices, kitchens, or workshops.
·Three-head: Ensures wide, even coverage in larger spaces like showrooms or conference rooms.
2. Sleek Square Design – Modern & Minimalist Aesthetic
Unlike traditional round Grille lights, our square-shaped fixture blends seamlessly into contemporary interiors.
·Premium aluminum frame – Durable, lightweight, and corrosion-resistant.
·Low-profile design – Fits flush with ceilings for a clean, unobtrusive look.
3. Multiple Power Options (5W-30W) – Energy-Efficient & Bright
Select the perfect brightness level for your application:
·5W-10W: Soft accent lighting (hallways, cafes, decorative use).
·15W-20W: Balanced general lighting (offices, retail stores).
·25W-30W: High-intensity task lighting (warehouses, workshops).
✅ Saves up to 80% energy vs. traditional halogen or fluorescent lights.

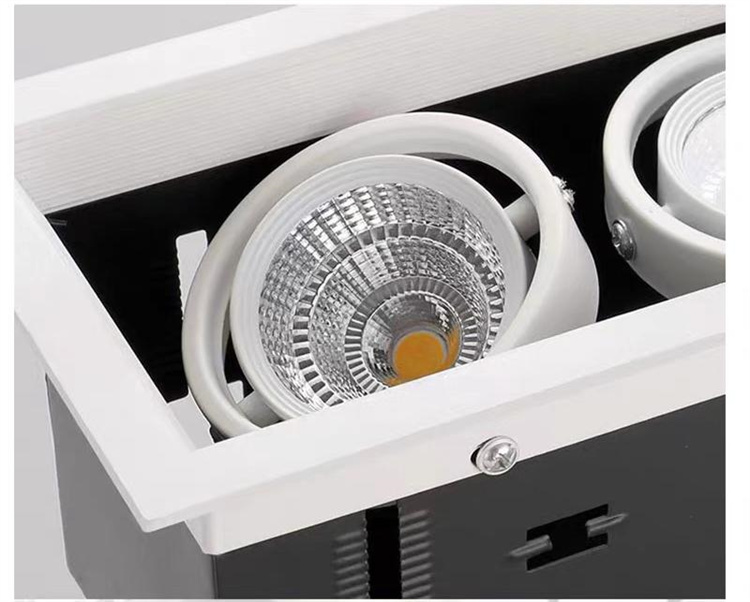

4. 355° Adjustable Heads – Precision Lighting Control
Each LED head rotates 355°, allowing you to direct light exactly where needed.
·Perfect for spotlighting artwork, merchandise, or workspaces.
·No glare or shadows – Smooth, flicker-free illumination.
5. Wide Range of Color Temperatures (2700K-6000K) – Set the Right MoodChoose from warm to cool white to create the ideal atmosphere:
·2700K-3500K: Cozy, inviting light (restaurants, hotels, living spaces).
·4000K-5000K: Neutral, natural light (offices, retail, kitchens).
·6000K: Crisp, daylight-like brightness (garages, workshops, hospitals).
6. Narrow (15°) or Medium (24°) Beam Angle – Tailored Light Spread
·15° beam: Intense, focused spotlight (ideal for highlighting products or artwork).
·24° beam: Wider coverage for general lighting (desks, countertops, retail displays).
Technical Specifications
✔ Material: High-grade aluminum + tempered glass
✔ Input Voltage: 100-277V (universal voltage)
✔ CRI (Color Rendering Index): ≥90 (vibrant, true-to-life colors)
✔ Lifespan: 50,000+ hours (low maintenance, long-lasting)
✔ Certifications: CE, RoHS, UL (safety guaranteed)
Ideal Applications
·Offices & Conference Rooms – Glare-free, high-CRI lighting for productivity.
·Retail Stores & Showrooms – Adjustable heads for perfect product displays.
·Hotels & Restaurants – Warm white options for a welcoming ambiance.
·Warehouses & Workshops – High-power models for bright, shadow-free lighting.
How To Install Quickly
Installation of Light with springs:
The instalation method can be instaed according to the installation diagramoftheluminaire.The instalation position ofthe luminaire is selected by theembedded installation, and the hanging parts,cables,instalation tools, etc.required forinstallation are prepared. The luminaires are led out according to relevantspecifications, and the luminalres are hanged by hanging parts,etc,The back cover is pre-selected and properly hung or embedded to the pre-selected position.
1. Make holes in the ceiling according to the size of the lamp
2. Connect the power cord of the lamp with the reserved conductor .
3. The spring clips on both sides of the lamp shall be vertical, and the lamp shall be installed in the ceiling with holes.
4. After confirming the size of the opening and the fitting of the lamp, put down thespring buckle. After the installation of the lamp is completed, the power can be turned on for use.
The front-end power supply must be cut off during installation. The power supply must be cut off when repairing or replacing parts.
Premium LED Square Grille Light: Superior Performance for Modern Spaces
Elevate your commercial or residential lighting with our high-efficiency LED square grille light, designed to deliver bright, uniform illumination while maintaining a sleek, low-profile aesthetic. Perfect for offices, retail stores, schools, and healthcare facilities, this fixture combines energy savings, durability, and visual comfort in one advanced lighting solution.
✅ Ultra-Bright & Flicker-Free Lighting
● High lumen output (up to 100lm/W) ensures optimal brightness with zero flicker, reducing eye strain in workspaces.
● Uniform light distribution eliminates dark spots and shadows, enhancing visibility.
✅ Energy-Saving & Long Lifespan
● 60% lower energy consumption compared to traditional fluorescent grid lights.
● 50,000+ hours lifespan minimizes maintenance costs and replacements.
✅ Robust & Durable Construction
● High-quality aluminum frame ensures excellent heat dissipation, preventing overheating.
● Tempered glass or PMMA diffuser options for enhanced durability and light diffusion.
✅ Customizable Light Effects
● Available in 3000K (warm white), 4000K (neutral white), and 6000K (cool white) to suit different environments.
● Optional dimming & smart control compatibility (DALI, 0-10V, or WiFi).
✅ Wide Application Scenarios
✔ Offices & conference rooms
✔ Supermarkets & retail stores
✔ Hospitals & schools
✔ Hotels & lobbies
Why Choose Our LED Grille Light?
→ CE, RoHS, SAA certified for safety and reliability
→ 5 year warranty for worry-free usage
→ Sleek, modern design that blends seamlessly into any interior
Upgrade to a brighter, smarter, and more efficient lighting solution today!
