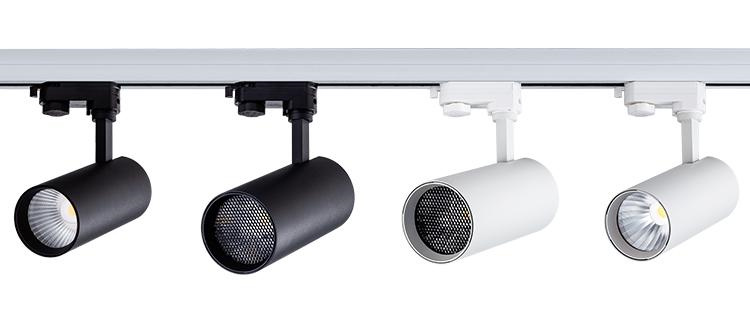

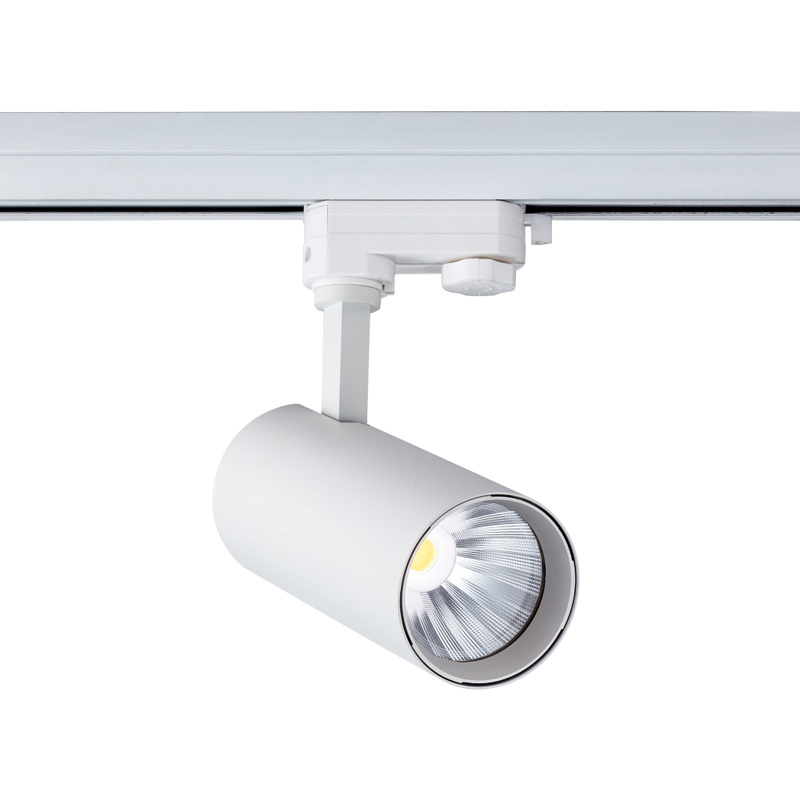

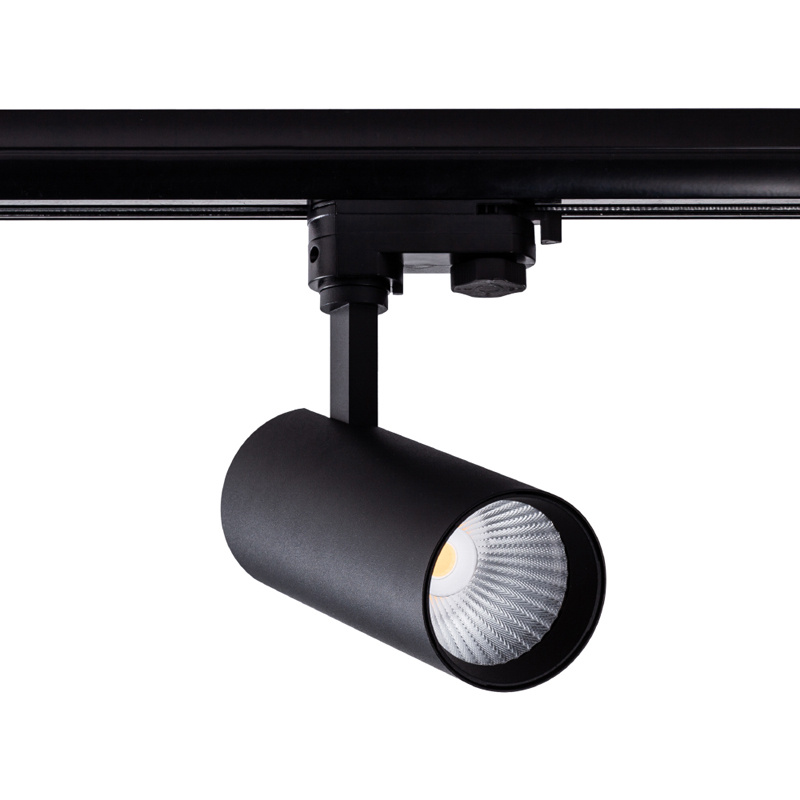

Studio Surface Ceiling Built-in Driver Track Light Fixture FT-TL21
Features:
● Built-in Driver Track Light
● Aerospace-Grade Aluminum
● CRI≥90 - Museum-grade color rendering
● 15°/24°/38°/60°beam options (UGR<19)
● True Flicker-Free - <1% flicker at all dim levels
● 0-10V/DALI/TRIAC/TUYA multi-protocol
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Anti-Glare Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| (Other driver brands can also choose from) | |
| Color | White Black For Option |
| Beam angle | 15°/24°/38°/60° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) /Cool White (5000K/6000K) |
| PF | 15-20W：0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home/ Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

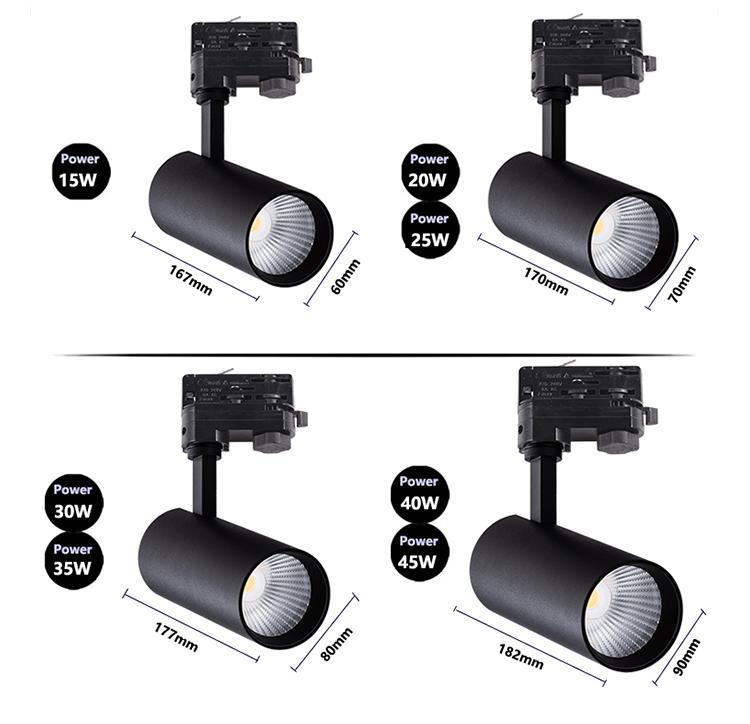

Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL21-15W |
15W |
D60*H167 |
1275lm |
2700K
|
|
FT-TL21-20W |
20W |
D70*H170 |
1700lm |
|
|
FT-TL21-25W |
25W |
D70*H170 |
2125lm |
|
|
FT-TL21-30W |
30W |
D80*H177 |
2550lm |
|
|
FT-TL21-35W |
35W |
D80*H177 |
2975lm |
|
|
FT-TL21-40W |
40W |
D90*H182 |
3400lm |
|
|
FT-TL21-45W |
45W |
D90*H182 |
3825lm |
The advantages of the product

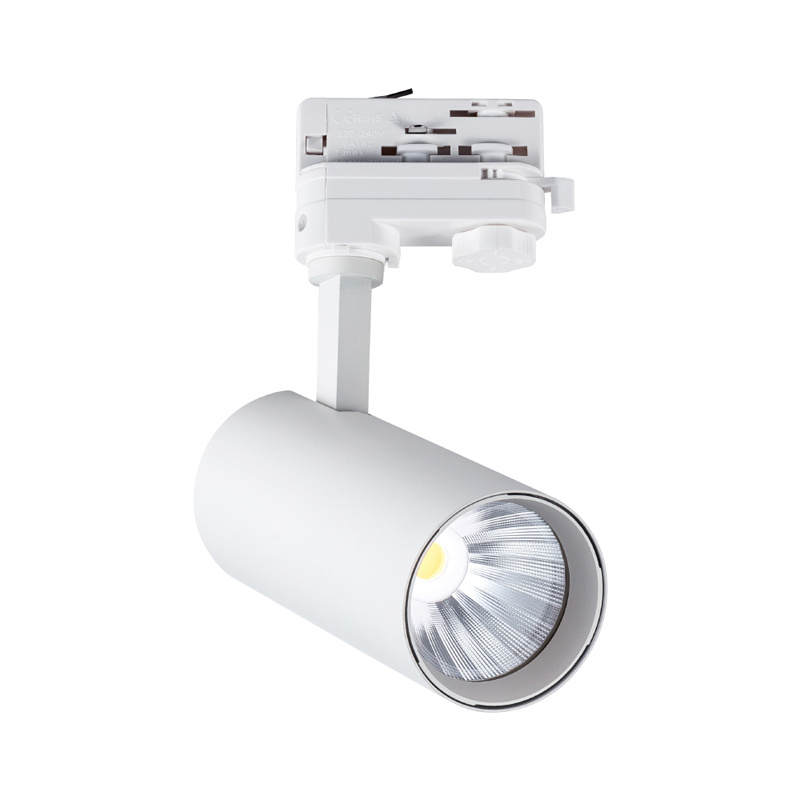

The power supply is built-in the lamp head of the track light, which is more design-oriented and easy to install. There is no exposed power supply at all, making it suitable for a minimalist style.

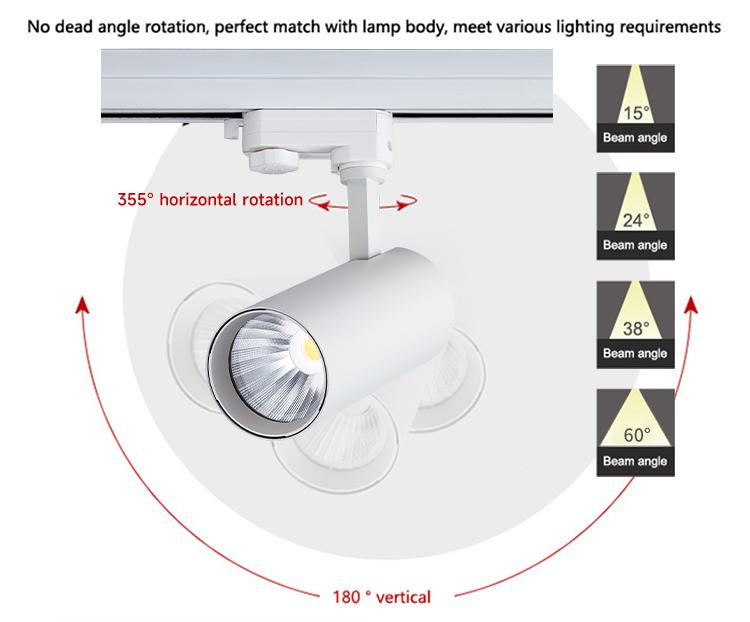

This track light features a bidirectional adjustment capability of 360° horizontal rotation and 90° vertical rotation, providing extremely high flexibility and precise light control for lighting design. When adjusting products or transforming Spaces, there is no need to move the tracks. Just rotate the lamp heads to redistribute the light.

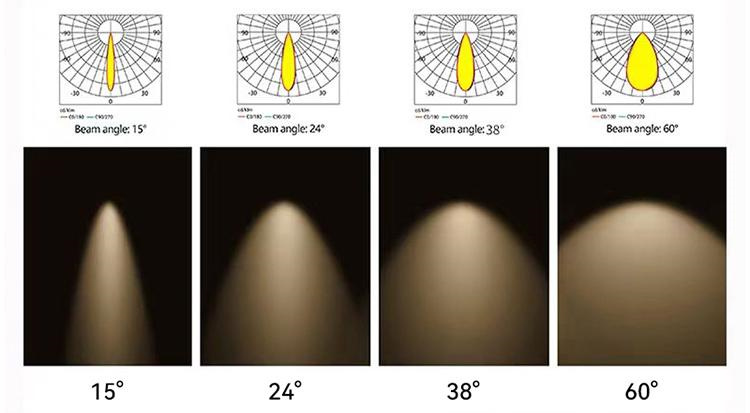

· Our track light is available in multiple beam angles—15° (spot), 24° (narrow flood), 38° (flood), and 60° (wide flood)—providing flexibility for precise lighting control in various settings.
· Available in multiple wattages (15W–45W ), which can meet both household needs and commercial purposes.

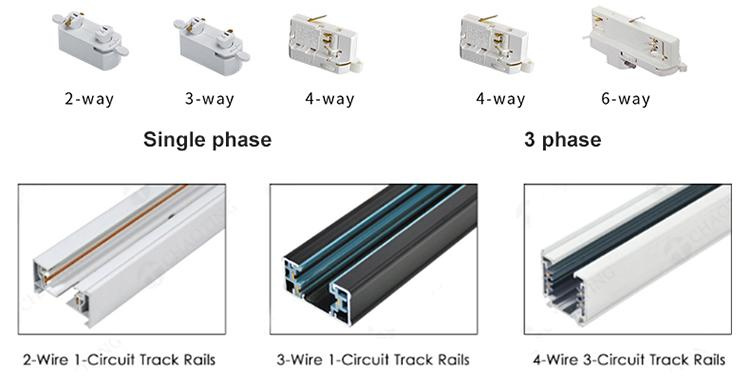

Our track light adapters are available in 2-wire, 3-wire and 4-wire. Different countries can choose according to their different needs.
This track light supports 0-10V/DALI/Tric dimming system.

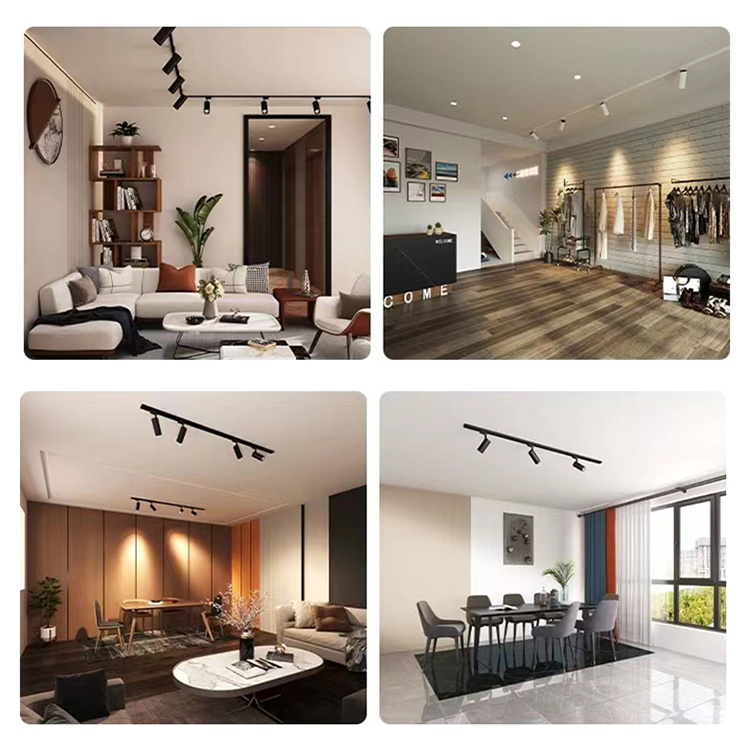

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Understanding LED Track Light Adaptors: 2-Wire, 3-Wire & 4-Wire Systems
Choosing the correct adaptor (connector) for LED track lights is essential for compatibility and electrical safety. Our track lights support 2-wire, 3-wire, and 4-wire adaptors, each designed for different power systems and regional standards.
Key Differences
● 2-Wire (L+N): Basic live and neutral connection, suitable for simple on/off control. Common in residential and basic commercial lighting (e.g., Europe 220-240V).
● 3-Wire (L+N+PE): Adds a protective earth (ground) wire for enhanced safety, used in high-power or industrial applications (e.g., North America 120V/277V).
● 4-Wire (L1+L2+N+PE): Supports dimmable or smart control systems (0-10V/DALI), ideal for advanced lighting scenes in galleries, museums, and offices.
Regional Adaptor Selection Guide
✔ North America (UL/CSA): Typically uses 3-wire (120V/277V) for grounded safety.
✔ Europe (CE): Prefers 2-wire or 3-wire (220-240V), with 4-wire for DALI control.
✔ Asia/Australia: Varies by country—3-wire (grounded) is standard, while 4-wire suits smart buildings.
Pro Tip: For dimmable or color-tuning track lights, opt for 4-wire adaptors. Our global-certified adaptors ensure seamless installation worldwide.
