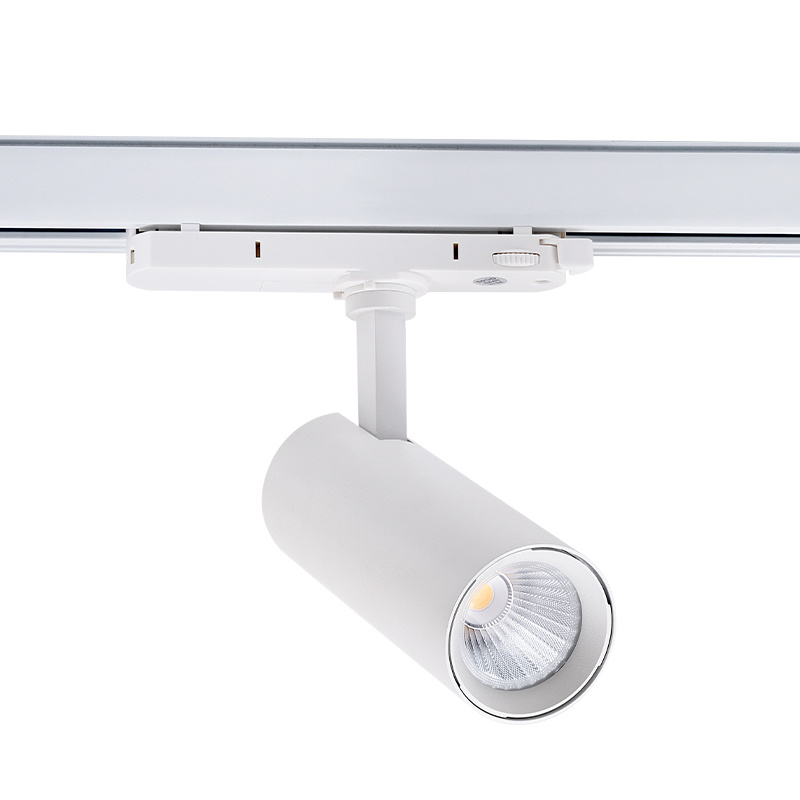

Studio Surface Ceiling Built-in Driver Track Light Fixture FT-TL21
Features:
● Built-in Driver Track Light
● Aerospace-Grade Aluminum
● CRI≥90 - Museum-grade color rendering
● 15°/24°/38°/60°beam options (UGR<19)
● True Flicker-Free - <1% flicker at all dim levels
● 0-10V/DALI/TRIAC/TUYA multi-protocol
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Anti-Glare Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp) |
| Power | 15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| (Other driver brands can also choose from) | |

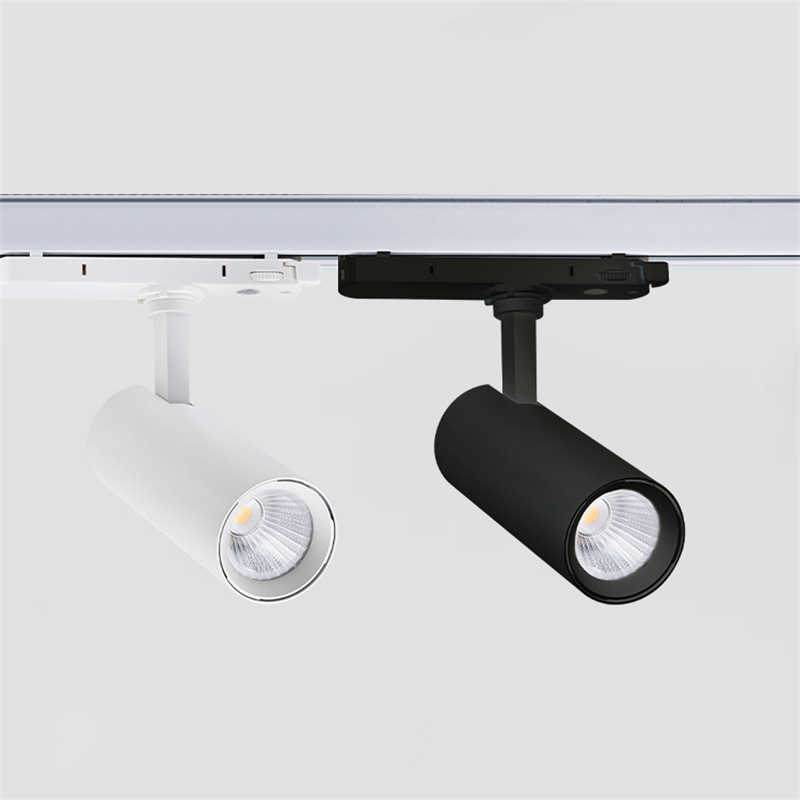

| Color | White Black For Option |
| Beam angle | 15°/24°/38°/60° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) Cool White (5000K/6000K) |
| PF | 15-20W：0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home/ Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

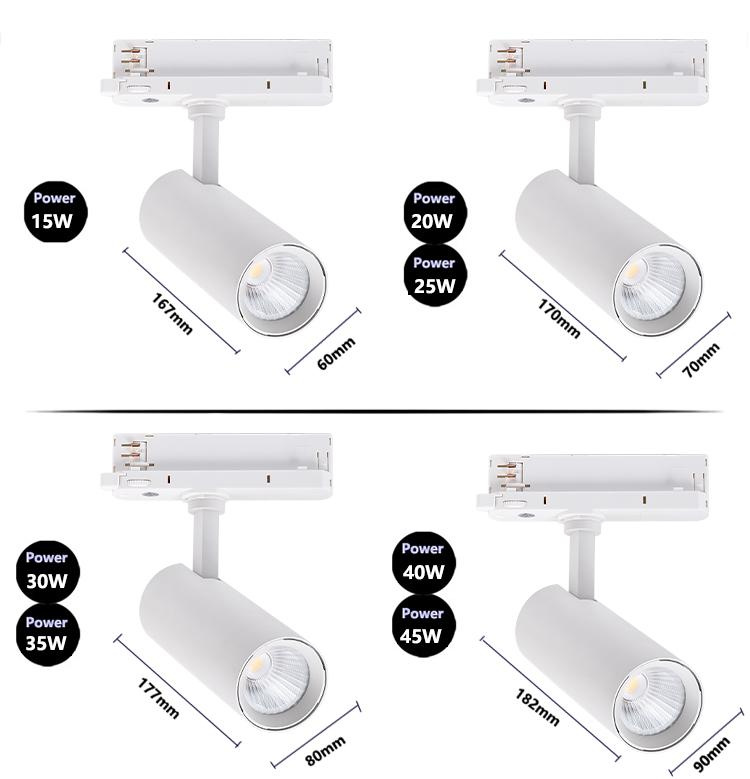

Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL21-15W |
15W |
D60*H167 |
1275lm |
2700K
|
|
FT-TL21-20W |
20W |
D70*H170 |
1700lm |
|
|
FT-TL21-25W |
25W |
D70*H170 |
2125lm |
|
|
FT-TL21-30W |
30W |
D80*H177 |
2550lm |
|
|
FT-TL21-35W |
35W |
D80*H177 |
2975lm |
|
|
FT-TL21-40W |
40W |
D90*H182 |
3400lm |
|
|
FT-TL21-45W |
45W |
D90*H182 |
3825lm |
The advantages of the product

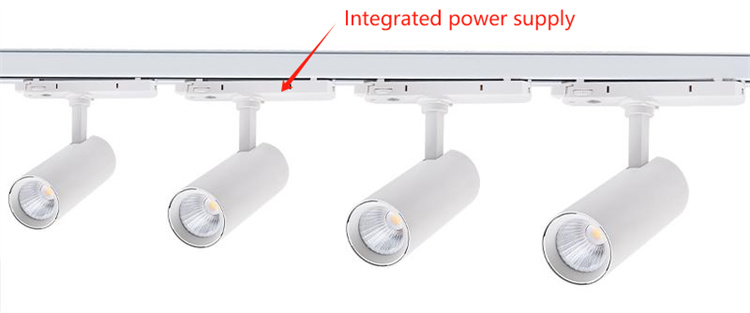

The drive and track are integrated into one, reducing exposed components and making the track system more concise, which is suitable for modern minimalist style decoration.

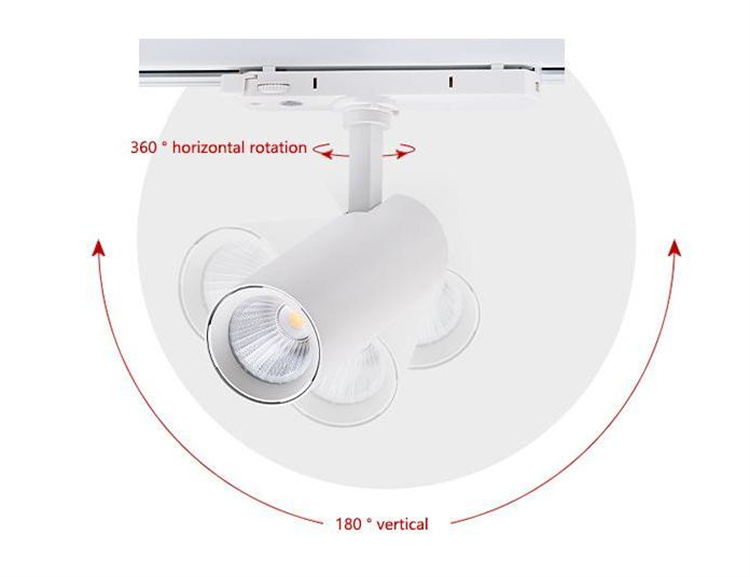

This track light features a bidirectional adjustment capability of 360° horizontal rotation and 90° vertical rotation, providing extremely high flexibility and precise light control for lighting design. When adjusting products or transforming Spaces, there is no need to move the tracks. Just rotate the lamp heads to redistribute the light.
· Our track light is available in multiple beam angles—15° (spot), 24° (narrow flood), 38° (flood), and 60° (wide flood)—providing flexibility for precise lighting control in various settings.
· Available in multiple wattages (15W–45W ), which can meet both household needs and commercial purposes.
Our track light adapters are available in 2-wire, 3-wire and 4-wire. Different countries can choose according to their different needs.
This track light supports 0-10V/DALI/Tric dimming system.

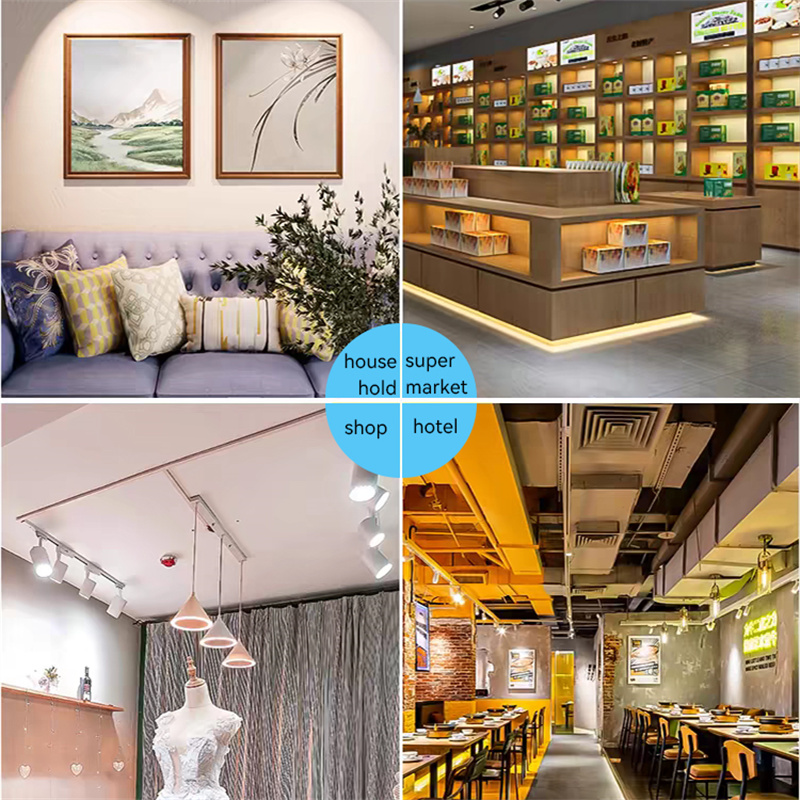

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
Understanding LED Track Light Adaptors: 2-Wire, 3-Wire & 4-Wire Systems
LED Track Light Adapters Explained: 2-Wire vs 3-Wire vs 4-Wire
Getting your track lighting adapter right ensures safe installation and full functionality. We offer three universal adapter types to match different electrical systems:
1. 2-Wire System (L+N)
Simple live+neutral setup
Basic on/off control
2. 3-Wire System (L+N+PE)
Adds safety ground wire
Required for commercial spaces
Standard in North America (120V/277V)
3. 4-Wire System (L1+L2+N+PE)
Enables smart lighting control
Works with dimmers/DALI systems
Perfect for museums and offices
Regional Guide:
North America: 3-wire (safety first)
Europe: 2-wire or 3-wire (+4-wire for smart control)
Asia/Oceania: Typically 3-wire, 4-wire for smart buildings
Expert Tip: Planning dimming or color control? Always choose 4-wire adapters. Our globally-certified options work anywhere.
