Surface Mounted Led Cob 25W Downlights Factory FT-MDL07
Features:
● Dimmable Functionality
● Low Glare Optics (UGR <19)
● Uniform Light Distribution
● Robust IP Rating (IP20/IP44)
● High CRI Options (≥80 / ≥90)
● Multiple CCT Options (2700K–6000K)
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5 ; 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Surface Mounted Downlight |
| Power | 7W/10W/12W/15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 36° |
| CRI (Ra>) | 80/90/95 |

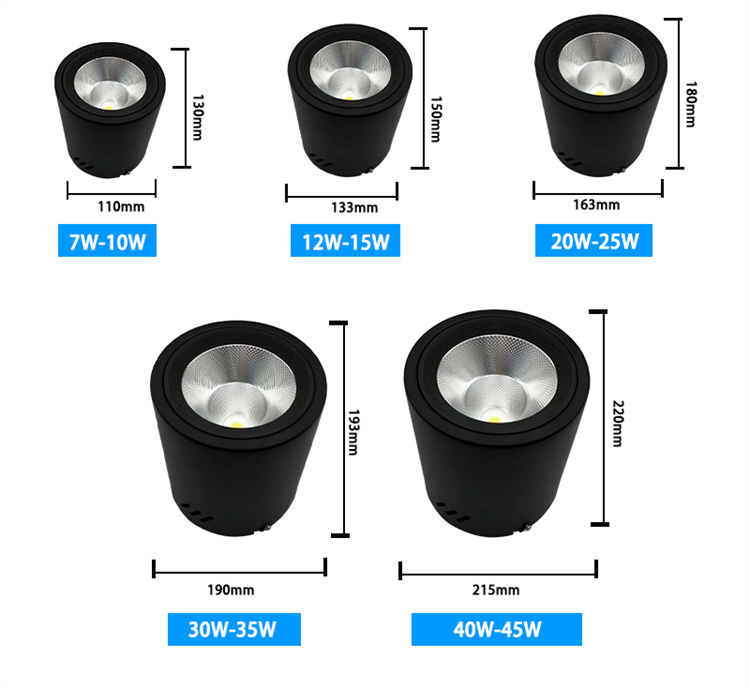

| Dimension(mm) | D110*H130 /D133*H150/D163*H180/D190*H193/D215*H220mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7W-25W: 0.5 ; 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |

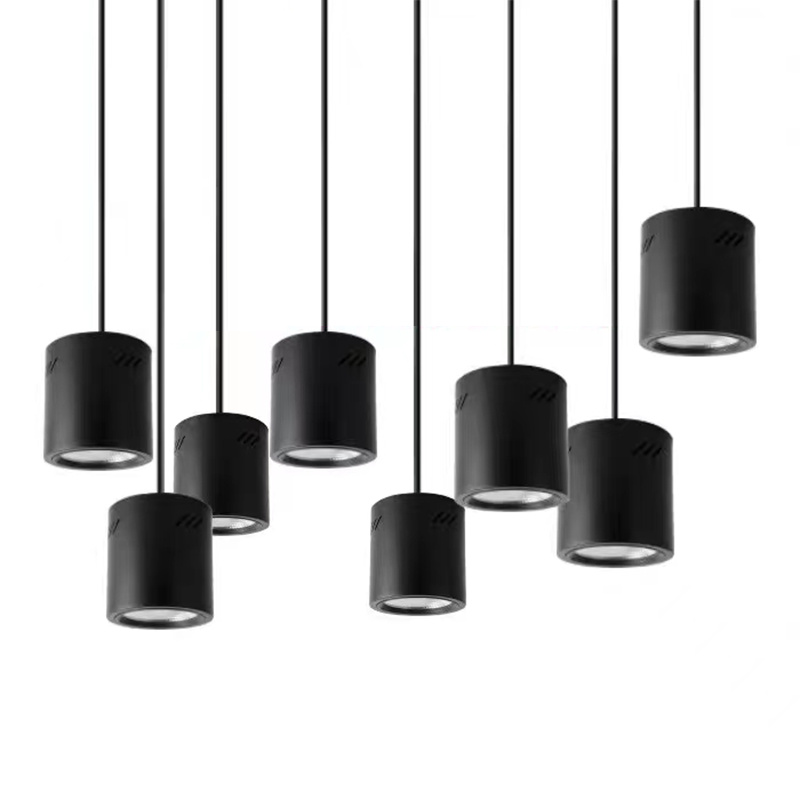

| Installation | Surface mounted/pendant |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|
Model No. |
Watts |
Dimension(mm) |
LED Color |
|
FT-MDL07-7W |
7W |
D110*H130 |
2700K |
|
FT-MDL07-10W |
10W |
D110*H130 |
|
|
FT-MDL07-12W |
12W |
D133*H150 |
|
|
FT-MDL07-15W |
15W |
D133*H150 |
|
|
FT-MDL07-20W |
20W |
D163*H180 |
|
|
FT-MDL07-25W |
25W |
D163*H180 |
|
|
FT-MDL07-30W |
30W |
D190*H193 |
|
|
FT-MDL07-35W |
35W |
D190*H193 |
|
|
FT-MDL07-40W |
40W |
D215*H220 |
|
|
FT-MDL07-45W |
45W |
D215*H220 |
High-Output Surface Downlight: Industrial Efficiency, Expansive Coverage
Engineered for grand-scale illumination, our large-format surface downlights deliver unmatched energy savings and superior light distribution across vast commercial and industrial spaces. With diameters up to 215mm and outputs of 10,000–25,000 lumens, these powerhouse fixtures replace 300W–1000W legacy lighting while consuming 70–85% less energy—slashing operational costs without compromising brilliance.
Revolutionary Energy Efficiency:
● Massive Power Savings
A single 45W LED unit (4275 lm) outperforms a 180W metal halide fixture, reducing energy consumption by 72%. Over a 60,000-hour lifespan, this saves $1,800+ in electricity per fixture (at $0.15/kWh).

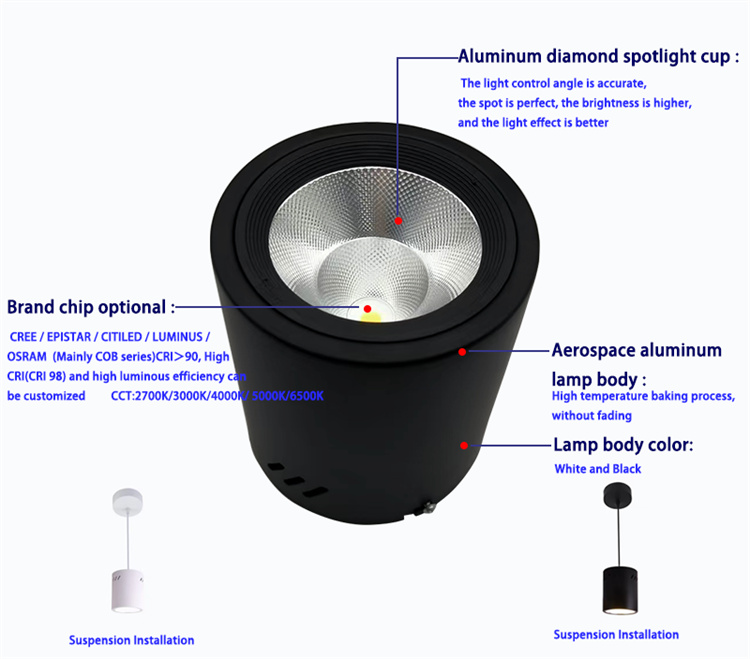

·Use high-quality raw materials
1.Aluminum diamond spotlight cup：
The light control angle is accurate,
the spot is perfect, the brightness is higher,
and the light effect is better
2.Brand chip optional：
CREE/EPISTAR/CITILED/LUMINUS /
OSRAM (Mainly coB series)CRl>90, High
CRI(CRi 98) and high luminous efficiency can be customized
3.Aerospace aluminum lamp body :
High temperature baking process,without fading
4.Lamp body color:
White and Black
·Advanced Thermal Management
Oversized die-cast aluminum housings with extended fins dissipate heat 40% faster than standard downlights, maintaining >95% lumen output at 50,000 hours. No lumen depreciation in high-ambient settings (up to 50°C).
·Smart Grid Compatibility
0–10V/DALI dimming cuts power to 20% during off-peak hours. Universal voltage (100–277V) ensures stable operation in regions with unstable grids.
Unrivaled Application Scope:
🏭 Industrial Giants
• Warehouses: 25°C cooler operation vs. HIDs protects temperature-sensitive inventory
• Manufacturing floors: Uniform 150 lux coverage at 8m mounting height
• Loading bays: 50,000-hour durability withstands forklift vibrations
🏬 Commercial Landmarks
• Airport concourses: Glare-free 5000K light enhances passenger navigation
• Supermarkets: 90+ CRI renders produce authentically (NSF-certified housings)
• Gymnasiums: Flicker-free performance under high-motion activities
🏛 Architectural Spaces
• Atriums: Suspended clusters create sculptural lighting statements
• Museums: 36° precision optics highlight large exhibits without UV damage
Engineering Superiority
Sustainability: 100% recyclable aluminum, RoHS-compliant PCBs
Warranty: 5-year coverage—industry-leading for large-scale LEDs
Why Global Clients Choose Us:
► 35% fewer fixtures required vs. standard downlights
► 5-minute retrofit installation onto existing junction boxes
► Carbon footprint reduced by 12 tons CO₂ per fixture annually
