Suspended 4 ft Linkedable Led Linear Dining Room Chandeliers Wholesale FT-LL1F2
Features:
● Light source: San’an SMD LED
● Long LED life: More than 50,000 hours
● Low heat, less than 60°C
● No mercury or other inorganic
● Homogeneous flood illumination
● Machined aluminum heat fins with excellent thermal efficiencies
● 5 years limited warranty
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 20W:0.5 25W-55W: 0.95
- Driver LIFUD / Boke Optional
- LED source San’an
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Modern Linear Lighting |
| Power | 20W/25W/30W/35W/40W/45W/50W/55W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | SMD2835 |
| Shell color | White And Black For Option |
| Beam angle | 140° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum Housing+PS Diffuser |
| CCT | Warm White(2700K/3000K/3500K) / Cool White(4000K) / Natural white(5000K/6000K) |
| PF | 0.95 |
| Installation | Surface Mounted/Pendant/Suspending |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/Office/Hospital .etc |
|
Model No. |
Watts |
Size （mm/ft） |
Lumens |
LED Color |
|
FT-LL1F2-20W |
20W |
600*50*70mm/2ft |
＞100LM/W |
Warm White (2700K/3000K/3500K) |
|
FT-LL1F2-25W |
25W |
600*50*70mm/2ft |
＞100LM/W |
|
|
FT-LL1F4-35W |
35W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F4-40W |
40W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F4-45W |
45W |
1200*50*70mm/4ft |
＞100LM/W |
|
|
FT-LL1F5-50W |
50W |
1500*50*70mm/5ft |
＞100LM/W |
|
|
FT-LL1F5-55W |
55W |
1500*50*70mm/5ft |
＞100LM/W |
The advantages of the product

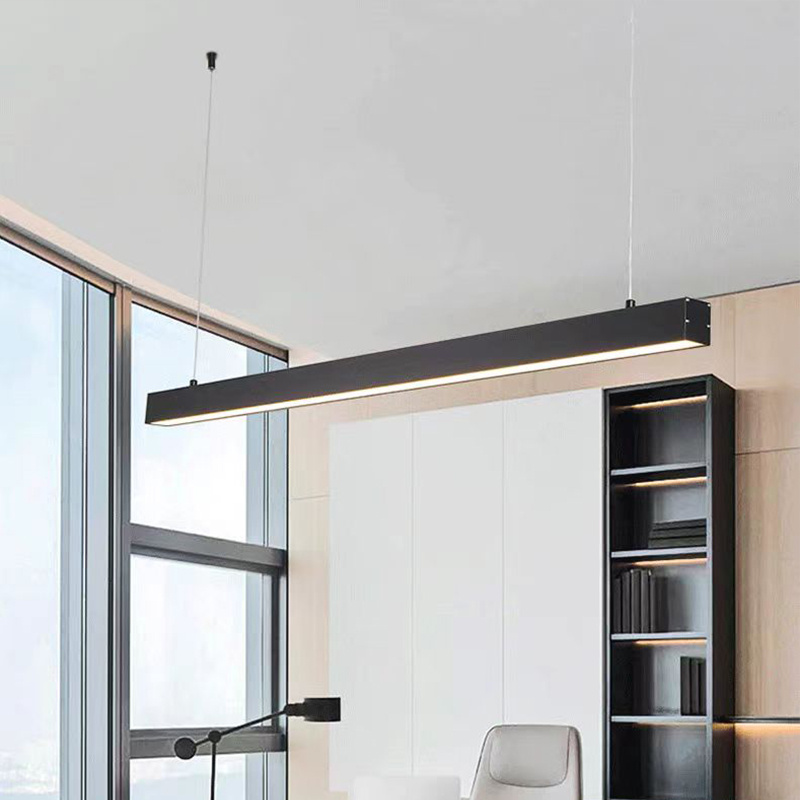

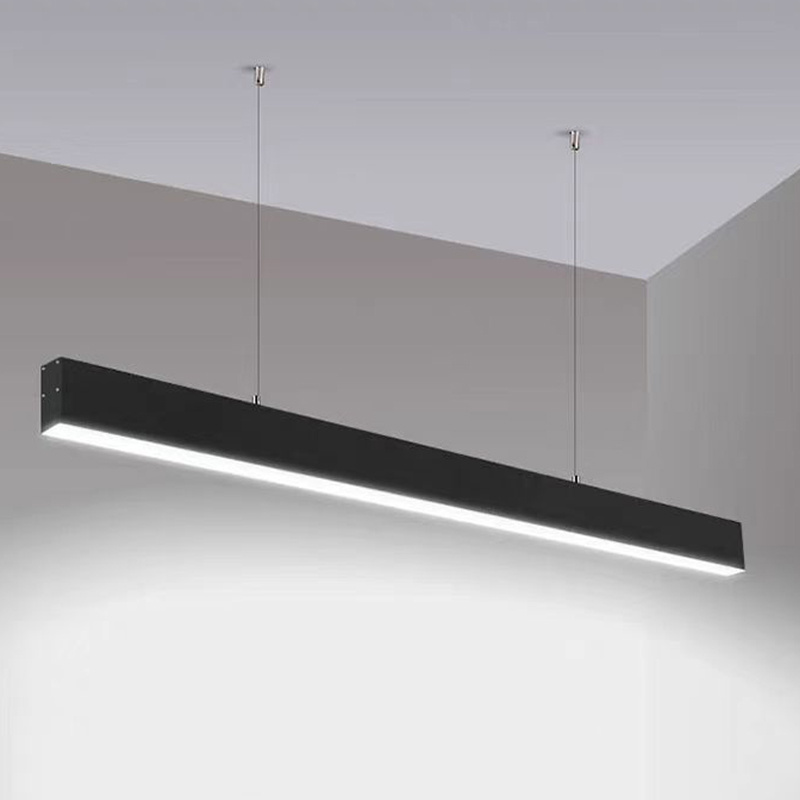

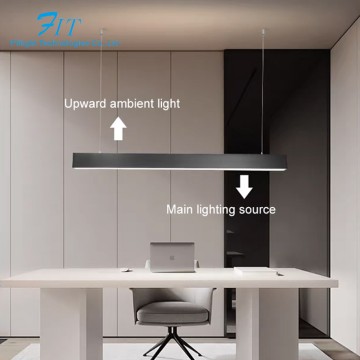

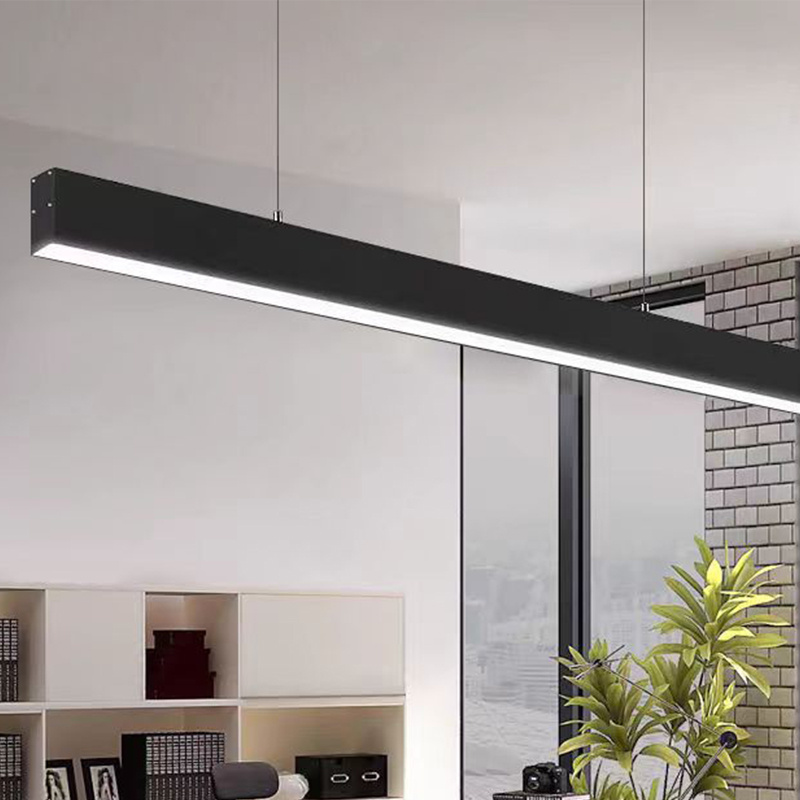

· This linear light is installed by hanging wires and can be freely adjusted in length, breaking the limitations of traditional ceiling lighting and making the space more layered.

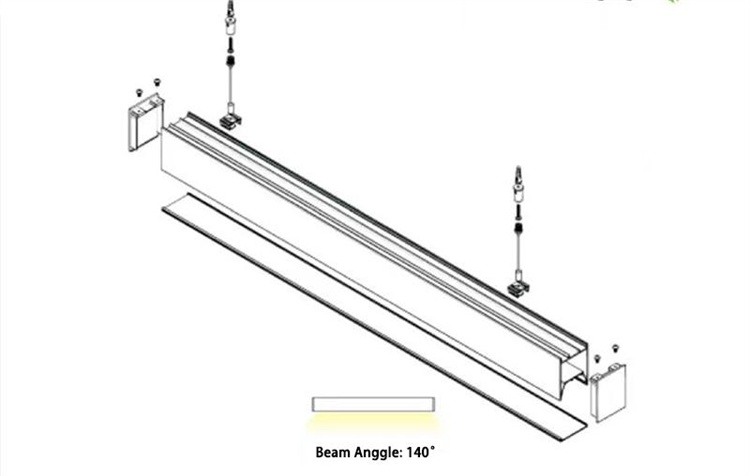

· The beam Angle of this linear light is 140 degrees, providing wide-range illumination. The light distribution is uniform and the coverage area is large, which can save electricity

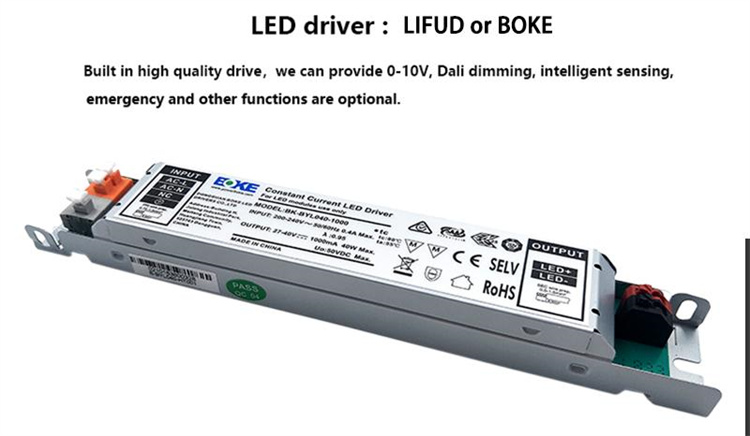

For this hanging line light, we use well-known brands such as lifud or Boke to drive it, achieving no flicker and protecting your eyes.

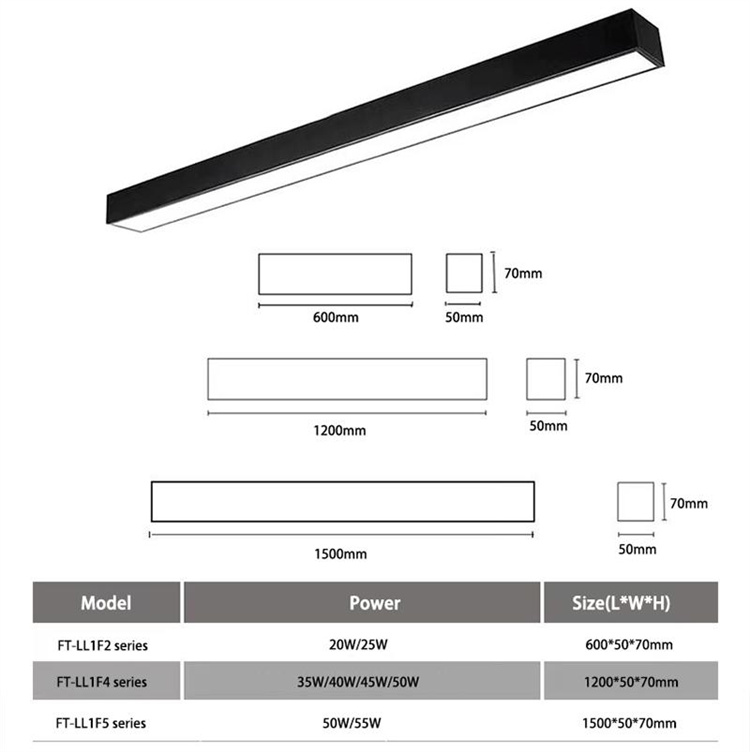

For this linear light, we offer lengths of 600mm,1200mm and 1500mm to choose from. They can be seamlessly spliced to meet any length requirements of yours.

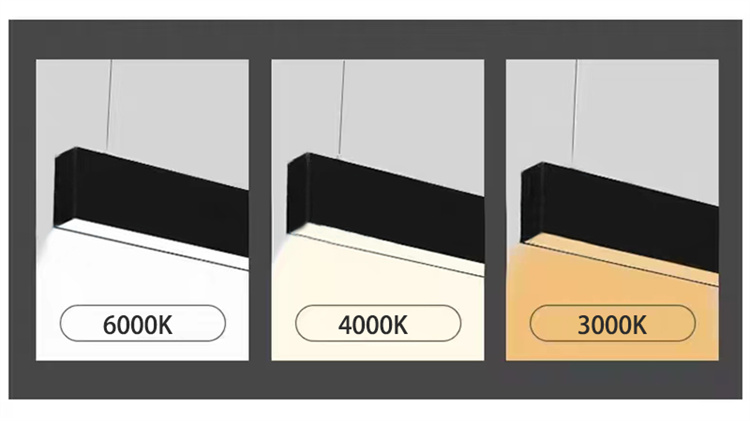

The color temperature of the linear lamp:
This linear light comes in different color temperatures to choose from: 2700K/3000K for warm white, 4000K for natural white, and 5000K/6000K
Cold white

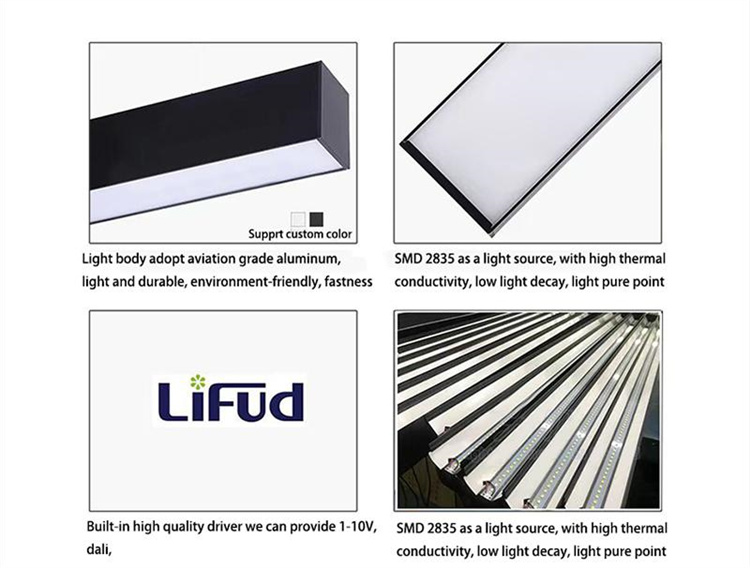

Details:
1. Light body adopt aviation grade aluminum,light anddurable ,environment-friendly,fastness
2. SMD 2835 as a light source, with high thermaconductivity,low light decay, light pure point
3. Built-in high quality driver we can provide 1-10V,dali
4. SMD 2835 as a light source, with high thermalconductivity,low light decay, light pure point
Led Linear Light Application

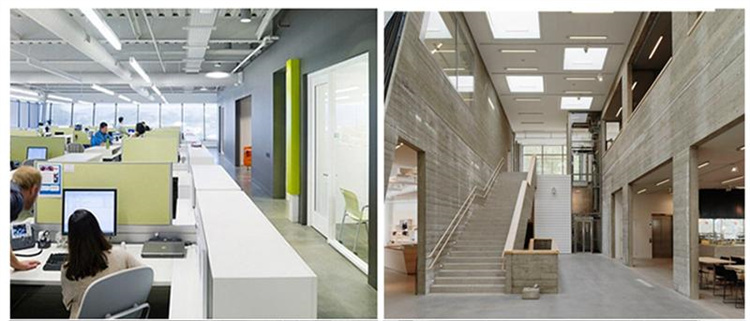

Linear lights can be used in restaurants, offices, meeting rooms, corridors, hospitals, supermarkets, etc.
