IP65 Recessed LED Downlight Anti-Glare Ceiling Light
Features：
- High Color Rendering: CRI > 90, accurately restoring the true color of objects.
- Uniform Light Emission: Consistent and uniform light beam distribution.
- Selectable Color Temp: 2700K，3000K, 3500K(Warm), 4000K (Neutral), 5000K, 6000K (Daylight).
- Optional Beam Angles: 55° to suit different lighting needs.
- Multi-Dimming Solutions: Compatible with Triac dimmer, 0-10V, and DALI systems.
- Smooth Dimming Experience: Stepless dimming with no flicker or noise.
Specifications：
- Input Voltage: AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF: 10-20W:0.5 25W:0.95
- Driver : LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source: CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI: 80/90/95
- Lifespan: 50000hrs
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led IP65 Waterproof Downlight |
|
Power |
10W/12W/15W/18W/20W/25W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
bridgelux SMD Led Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
55° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
¢75/¢95/¢120mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
10-20W:0.5 25W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Led Waterprood Outdoor Recessed Dwonlight |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
| Model No. | Watts | Size(mm) | Cut Out(mm) | Beam Angle | LED Color |
| FT-DLT17-10W | 10W | D87*H57 | ¢75 | 55° | 2700K/3000K/ 3500K/4000/ 5000K/6000K |
| FT-DLT17-12W | 12W | D87*H57 | ¢75 | ||
| FT-DLT17-15W | 15W | D107*H63 | ¢95 | ||
| FT-DLT17-18W | 18W | D107*H63 | ¢95 | ||
| FT-DLT17-20W | 20W | D130*H70 | ¢120 | ||
| FT-DLT17-25W | 25W | D130*H70 | ¢120 |

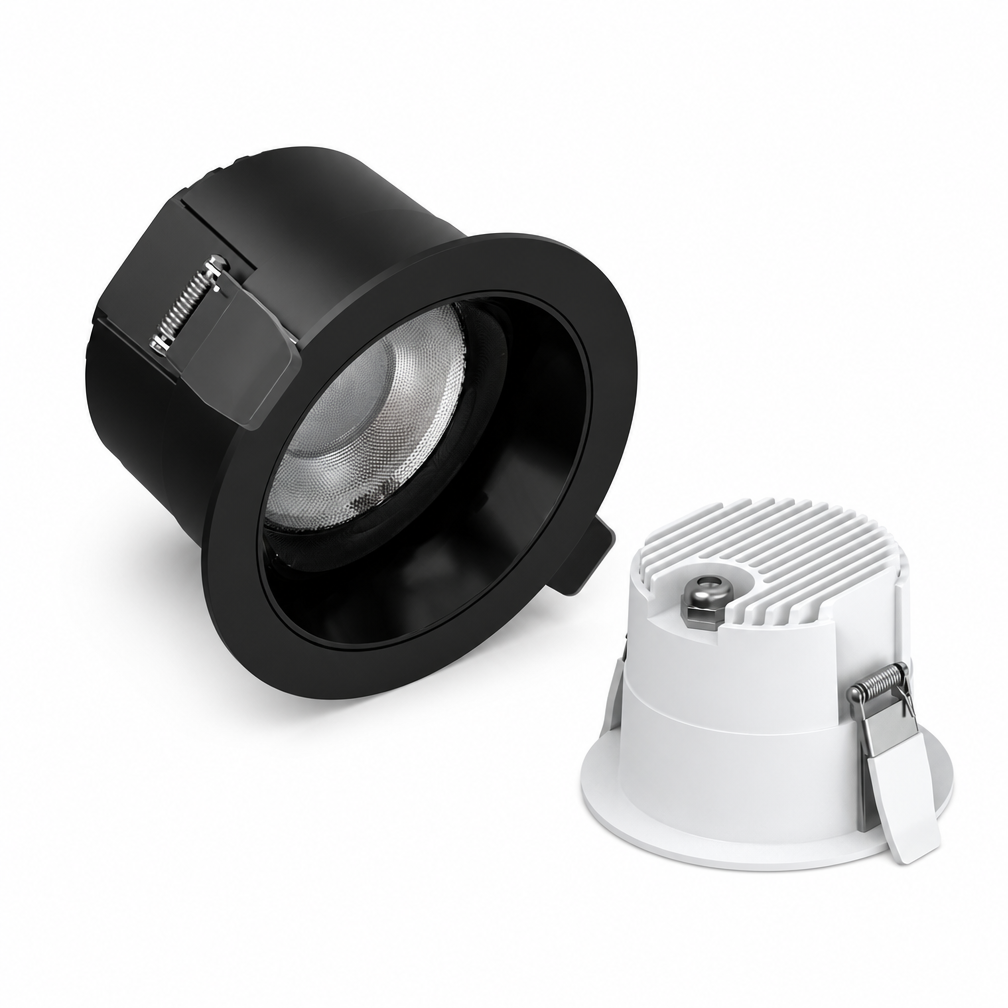

FT-DLT17 IP65 Waterproof Recessed LED Downlight | Deep Anti-Glare Ceiling Light
The FT-DLT17 is a professional-grade recessed LED downlight engineered for premium indoor lighting projects. Featuring IP65 FULL WATERPROOF RATING,UGR＜8 DEEP ANTI-GLARE optical design, ≥90 CRI true color rendering and 100LM/W HIGH LUMINOUS EFFICACY, this fixture delivers stable, comfortable and long-lasting illumination. Available in multiple wattages, rich trim finishes and full smart dimming options, it perfectly fits wet-area residential and commercial spaces. Supplied directly by a professional LED lighting manufacturer, all units come with a 5-YEAR OFFICIAL WARRANTY and customizable OEM/ODM SERVICE.
Product Display & Core Features

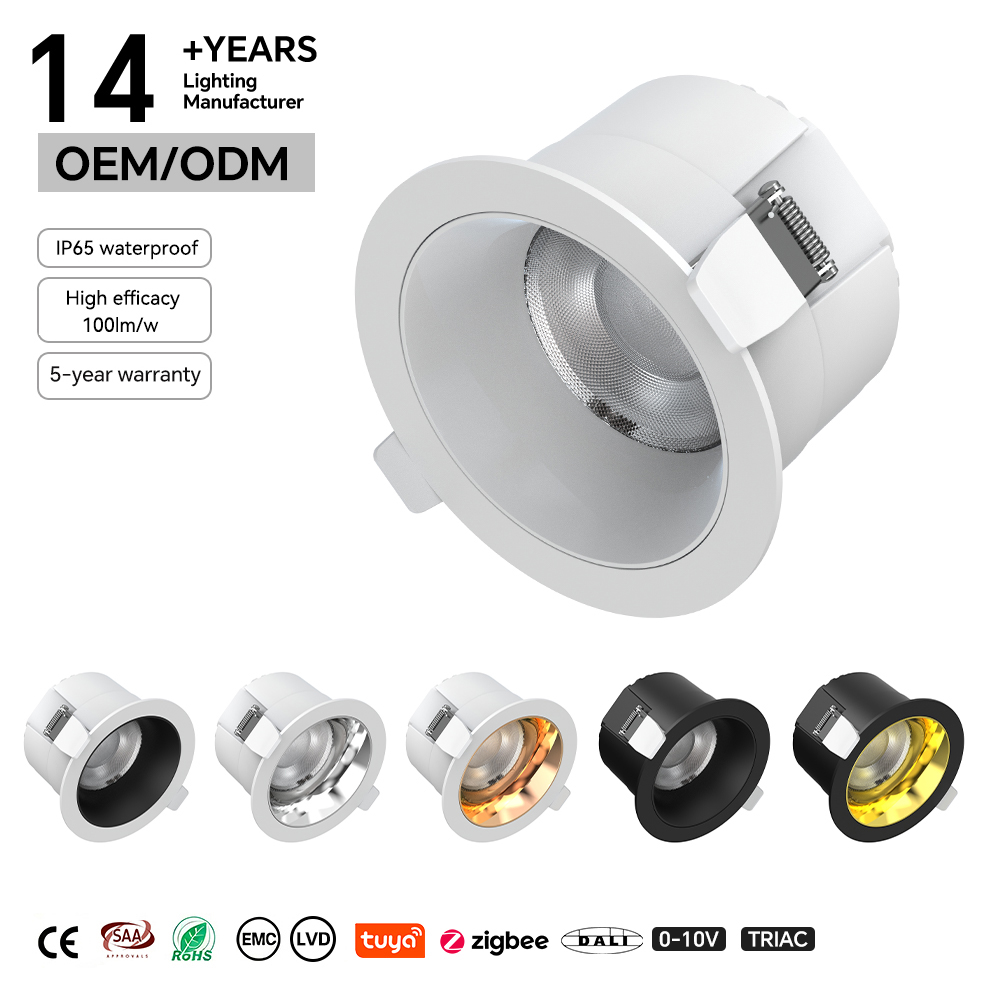

Overall Product Overview & Certified Premium Performance
Meet the FT-DLT17 IP65 RECESSED LED DOWNLIGHT, a high-end ceiling light developed by our factory with over 14 years of professional lighting manufacturing experience. This high-efficiency lighting fixture achieves 100LM/W HIGH EFFICACY and is fully protected by a reliable 5-YEAR WARRANTY. It supports a full range of stylish trim options including white, black, silver, rose gold and champagne gold to match diverse interior design styles. Fully certified with CE, RoHS, SAA, EMC, LVD, the downlight is compatible with multiple advanced dimming systems: TUYA, ZIGBEE, DALI, 0-10V AND TRIAC DIMMING. Custom OEM & ODM solutions are available for global lighting brand customization and engineering projects.

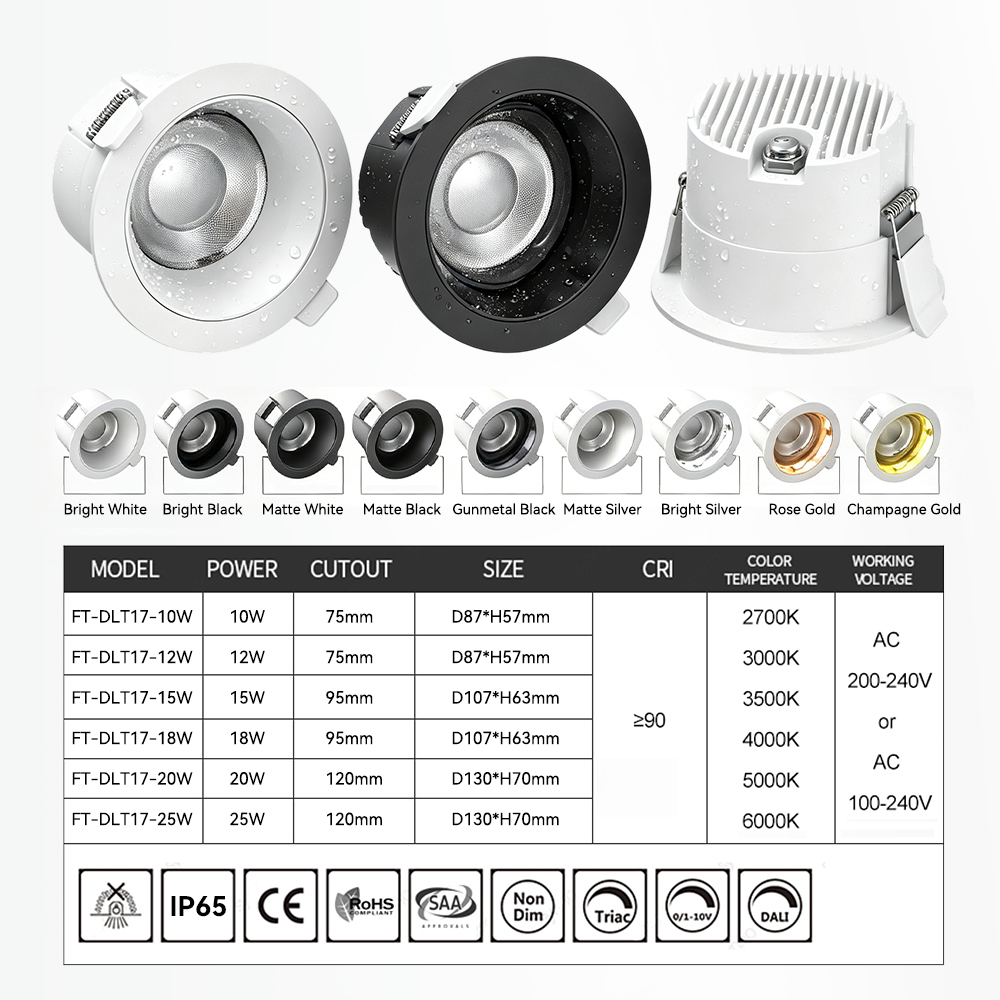

Complete Product Specifications & Customizable Parameters
The FT-DLT17 series provides ultra-flexible configuration options to meet diverse project demands. It covers mainstream power outputs including10W, 12W, 15W, 18W, 20W, 25W, matched with standard 75MM/95MM/120MM CEILING CUTOUT SIZES. Equipped with CRI≥90 HIGH COLOR RENDERING technology, it restores real and vivid object colors without color distortion. The color temperature ranges from2700K WARM WHITE TO 6000K COOL WHITE for full-scene mood adjustment. It supports AC 100-240V / 200-240V UNIVERSAL GLOBAL VOLTAGE and features a professional IP65 WATERPROOF GRADE. Multiple dimming modes including TRIAC, 0-10V AND DALI are optional, along with abundant finish choices: bright white/black, matte white/black, gunmetal black, matte silver, bright silver, rose gold and champagne gold.

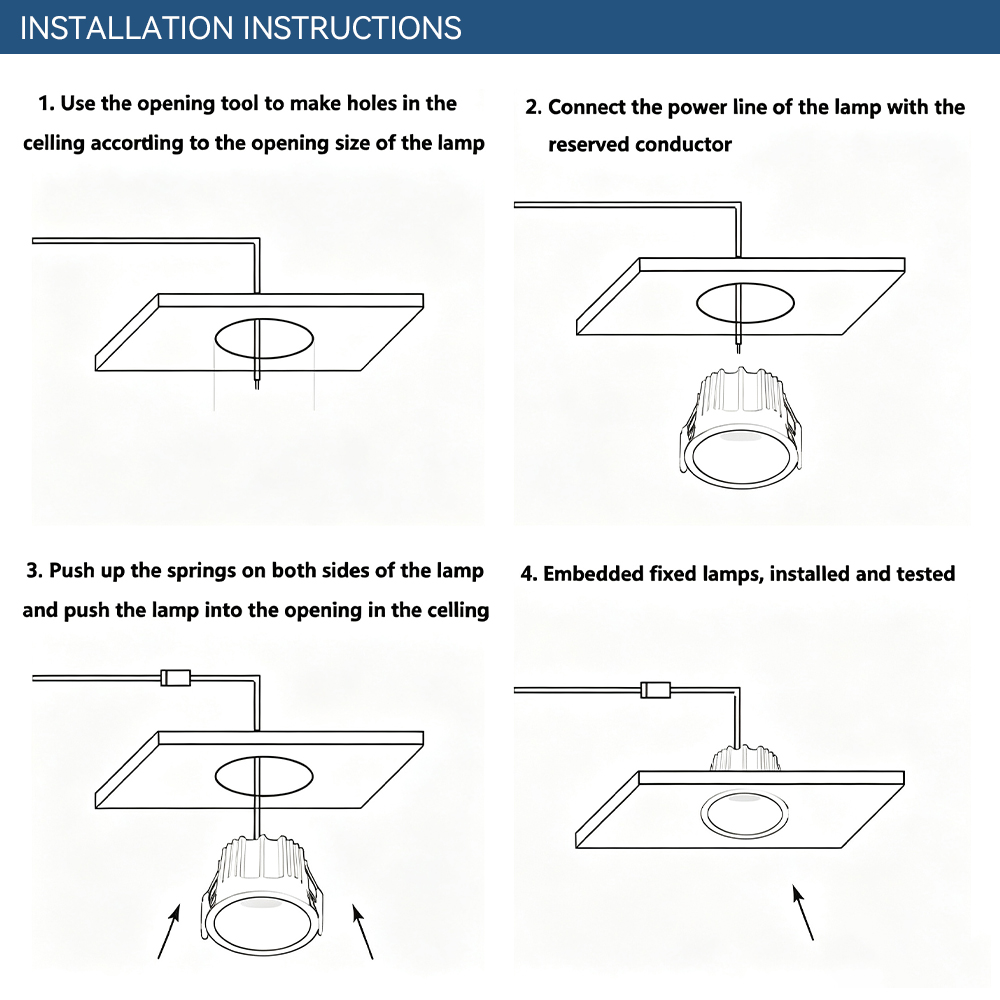

Fast & Simple 4-Step Installation
Fast & Simple 4-Step Installation
The FT-DLT17 features a user-friendly spring clip structure for tool-free, time-saving installation. Follow 4 simple steps for quick mounting: First, cut the ceiling opening strictly according to the standard cutout dimension. Second, complete safe wiring connection between the lamp cable and ceiling power wires. Third, squeeze the built-in high-tension spring clips and insert the fixture into the ceiling hole. Finally, release the clips to lock the light firmly in place and test power for normal operation. It is perfectly compatible with DRYWALL, PLASTERBOARD AND SUSPENDED CEILINGS, ideal for both new construction and renovation projects.

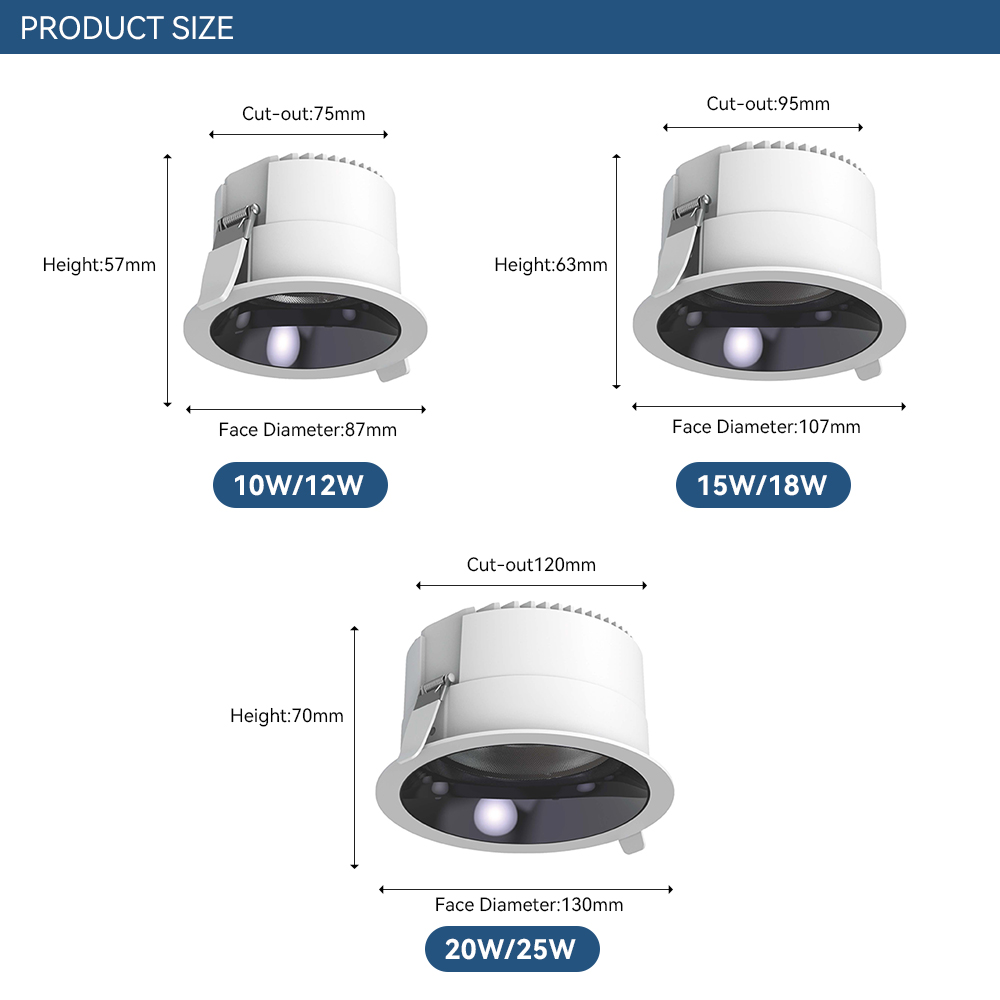

Exact Dimension Size Guide
The FT-DLT17 has three standardized size specifications to adapt to different ceiling depths and lighting area requirements. The 10W/12W model features a 75MM CUTOUT, 87mm face diameter and 57mm height. The 15W/18W model adopts a 95MM CUTOUT, 107mm face diameter and 63mm height. The high-power 20W/25W model requires a 120MM CUTOUT, with 130mm face diameter and 70mm height. The ultra-slim body design reduces ceiling space occupation, ensuring easy installation for most shallow ceiling environments.

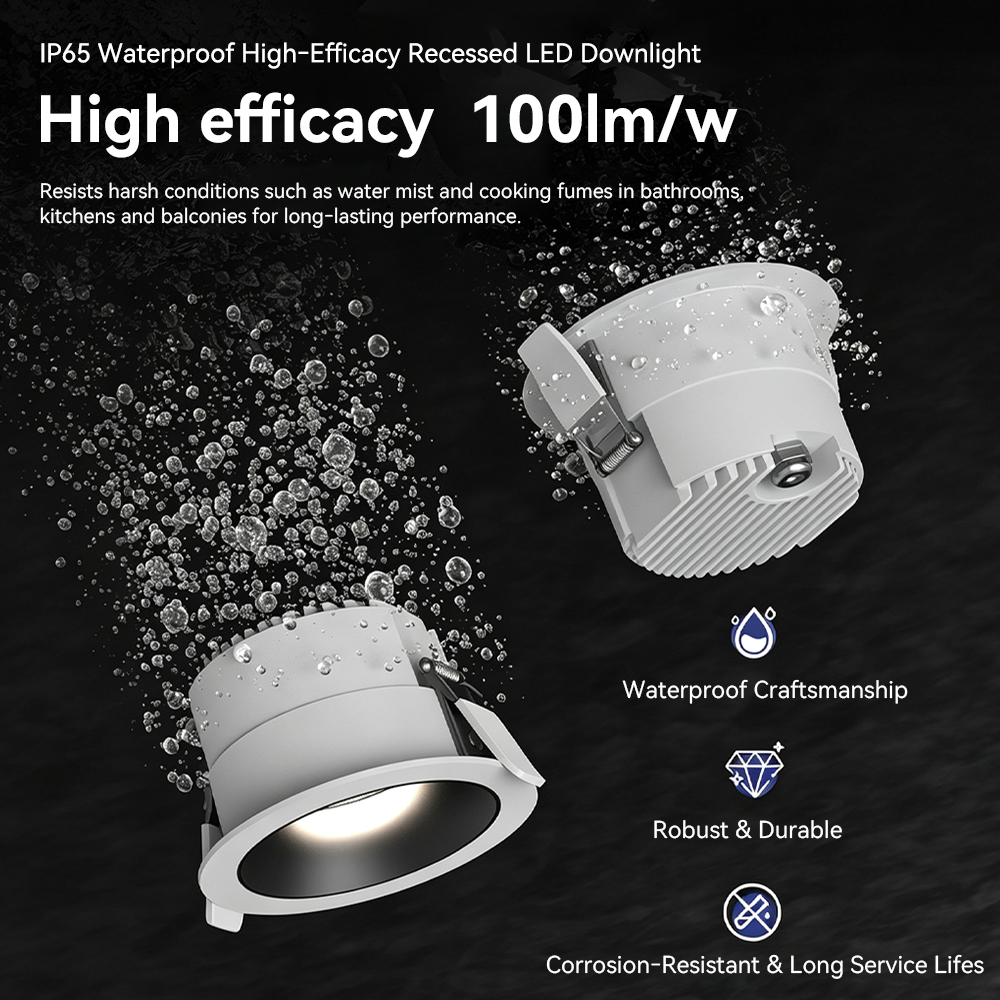

IP65 Waterproof & High-Efficiency Lighting Performance
Boasting IP65 FULL WATERPROOF & DUSTPROOF PROTECTION and 100LM/W SUPER HIGH LUMINOUS EFFICACY, the FT-DLT17 is professionally built for humid and wet indoor environments. It effectively resists water mist, kitchen oil fumes, moisture and dust erosion, solving the damage problem of ordinary downlights in damp spaces. With corrosion-resistant and durable housing structure, it maintains stable and consistent lighting performance for a long time, making it the IDEAL LIGHTING SOLUTION FOR BATHROOMS, SHOWERS, KITCHENS AND BALCONIES.

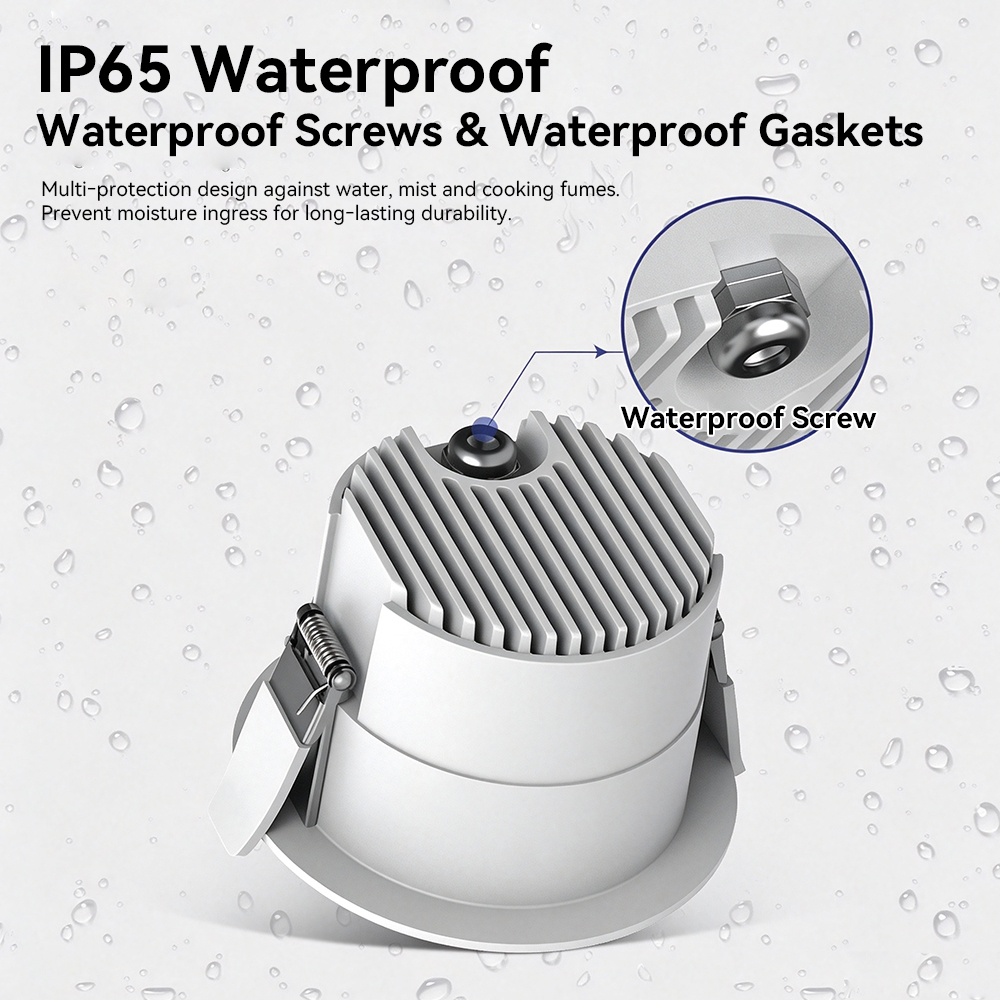

Professional Waterproof Sealing Structure
The FT-DLT17 adopts a multi-layer integrated waterproof protection structure. Equipped with WATERPROOF SCREWS AND HIGH-DENSITY SILICONE SEALING GASKETS, it forms an all-round tight barrier against liquid water and water vapor. This precision sealing design completely isolates external moisture, effectively protecting internal LED CHIPS AND DRIVERS from humidity damage, short circuit and aging. The upgraded waterproof craftsmanship greatly extends the fixture’s service life and ensures stable operation in long-term wet-area scenarios.

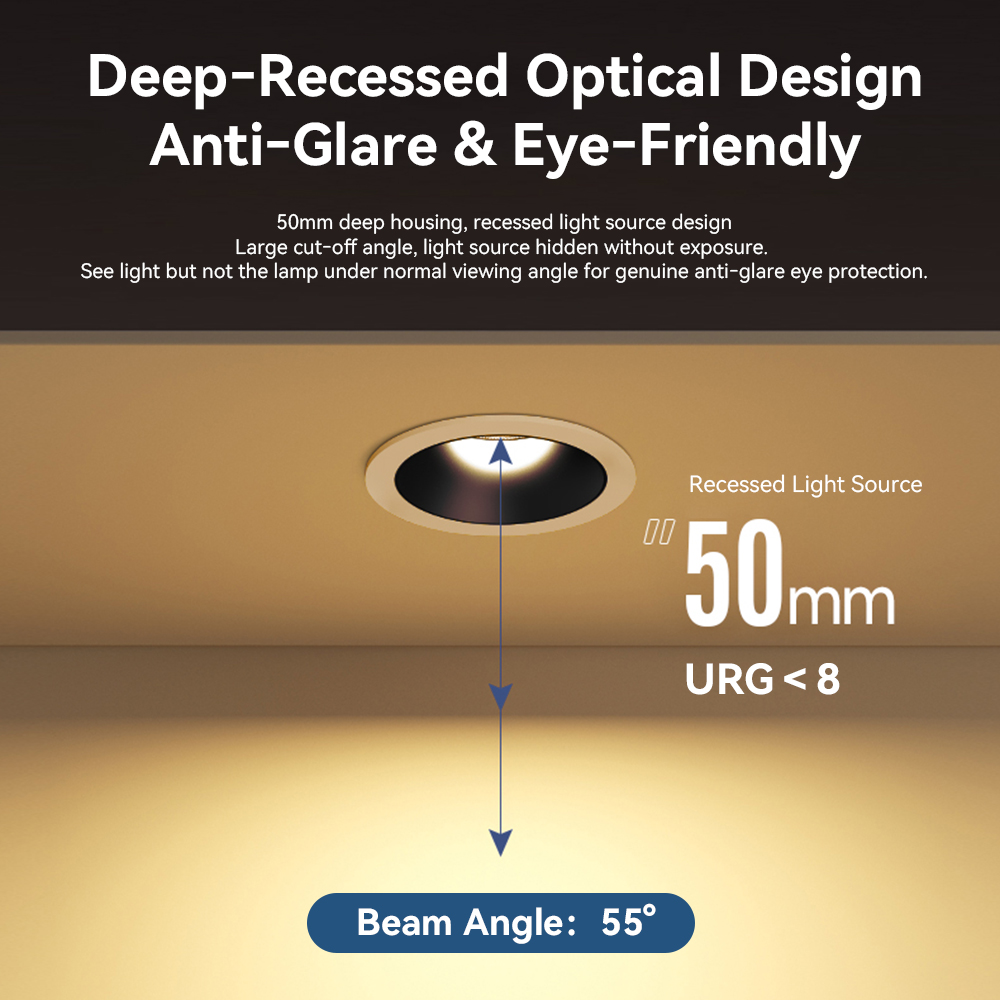

UGR＜8 Deep Anti-Glare Optical Technology
Featuring a50MM DEEP RECESSED CAVITY OPTICAL DESIGN, the FT-DLT17 achieves professional UGR＜8 ULTRA-LOW GLARE PERFORMANCE. The deep sunken structure completely hides the bare LED light source, with a standardized 55° PRECISION BEAM ANGLE and large cut-off angle. It delivers soft, uniform and eye-friendly light without harsh direct glare and light pollution, effectively reducing visual fatigue. This premium optical design is widely recognized for high-end scenarios such as residential living rooms, star hotels, offices and commercial exhibition spaces.

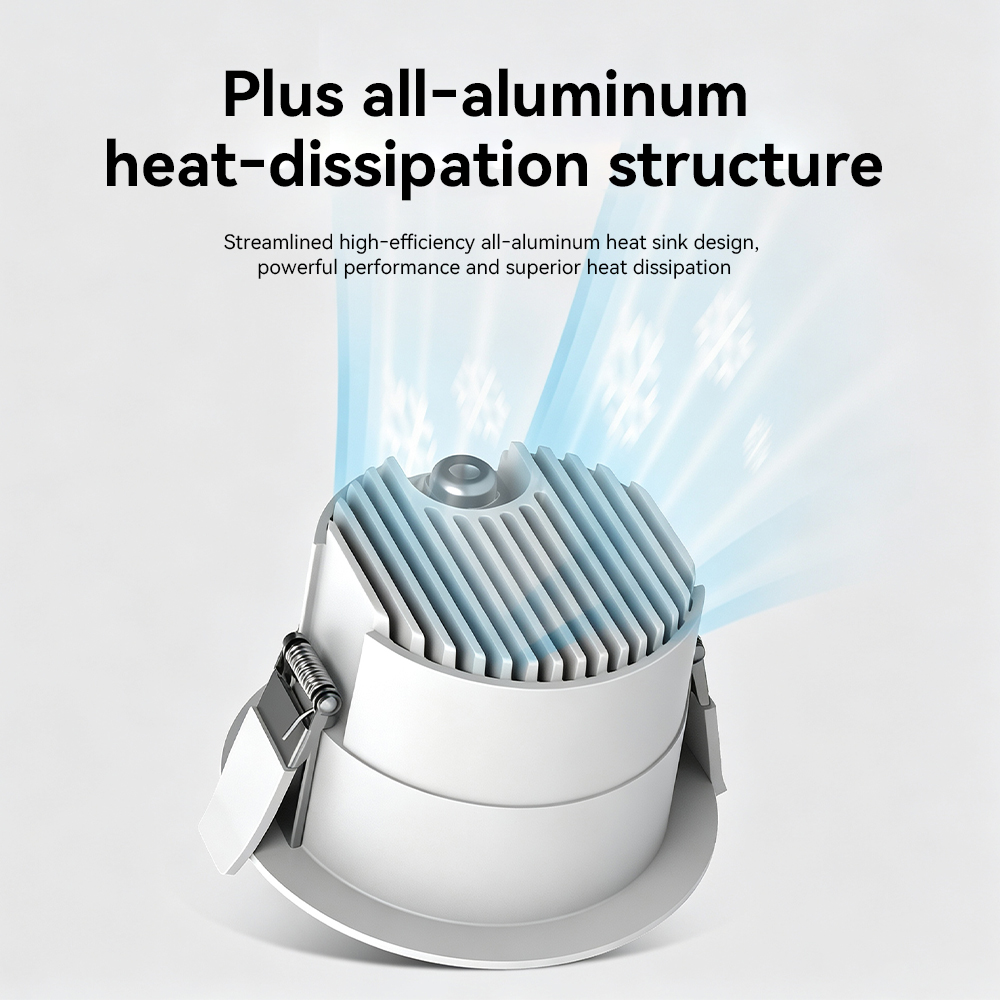

Full Aluminum High-Speed Heat Dissipation System
The FT-DLT17 adopts an integrated FULL ALUMINUM HEAT SINK STRUCTURE with streamlined heat dissipation grooves. The high-thermal-conductivity aluminum material rapidly absorbs and conducts the heat generated by LED chips, realizing efficient overall heat dissipation. Excellent temperature control keeps the fixture working at a low stable temperature, EFFECTIVELY SLOWING LUMEN DEPRECIATION AND EXTENDING THE OVERALL LIFESPAN of the lamp. The solid metal housing also improves impact resistance and structural durability for long-term commercial use.

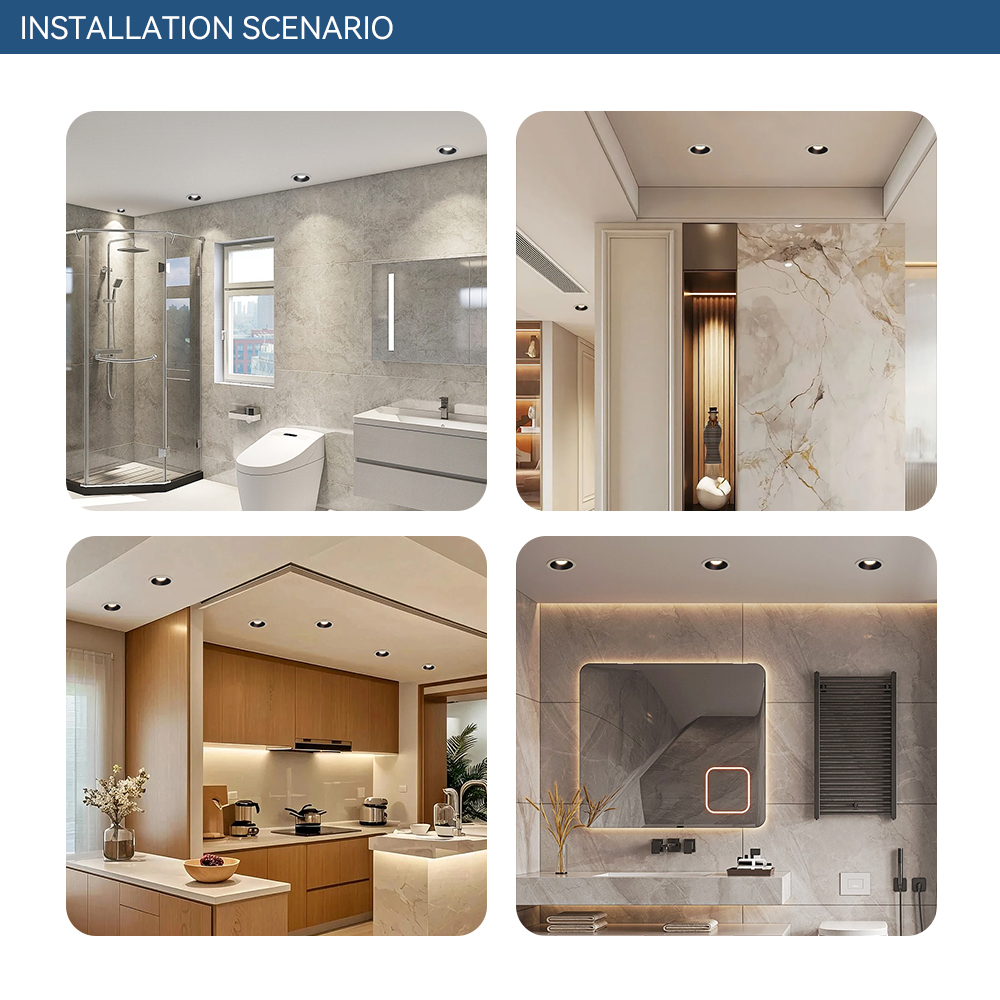

Wide Application Scenarios
With dual advantages of waterproof performance and high-quality lighting effect, the FT-DLT17 IP65 DOWNLIGHT covers full-scene indoor lighting needs. It is specially designed for WET AREAS INCLUDING BATHROOMS, SHOWER ROOMS AND KITCHENS. Meanwhile, its minimalist recessed appearance and soft anti-glare light are perfect for high-end residential spaces such as villas, living rooms and hallways, as well as commercial venues including hotel lobbies, retail stores, showrooms and restaurants. It creates a modern, elegant and comfortable lighting atmosphere for both home and commercial projects.
Factory Direct Supply & Customization Service
We are a professional LED LIGHTING DIRECT MANUFACTURER, providing one-stop FULL OEM & ODM CUSTOMIZATION for the FT-DLT17 series. We support customized CRI, CCT, BEAM ANGLE, TRIM FINISH, LASER LOGO AND PACKAGING. We provide free professional lighting simulation solutions within 24-48 hours based on your CAD drawings. We offer fast sample delivery in 3-5 days and stable mass production delivery in 10-18 days. All products pass strict CE, EMC, LVD, RoHS, SAA, ISO9001 certifications, with 5-YEAR WARRANTY and low 10PCS MOQ to support various project orders.
Core Product Advantages
1. IP65 Industrial-Grade Waterproof Protection
Equipped with silicone sealing gaskets and waterproof screws, the FT-DLT17 blocks steam, water mist and oil fume thoroughly. The professional IP65 WATERPROOF RATING enables safe and stable operation in bathroom wet zones and kitchen humid environments, which ordinary downlights cannot adapt to.
2. UGR＜8 Premium Anti-Glare Lighting
The 50mm deep recessed cavity shields the bright LED source completely. The 55° STANDARD BEAM ANGLE outputs uniform and soft light with ultra-low glare. It eliminates eye irritation and visual fatigue, meeting the high lighting standards of high-end architectural interior design.
3. 100LM/W High Efficacy & CRI90 True Color
Up to 100LM/W HIGH LUMINOUS EFFICACY saves more than 30% energy consumption compared with ordinary lamps. The ≥90 HIGH CRI accurately restores the true color of furniture, artworks and commodities, presenting richer and more natural visual effects.
4. Full Aluminum Durable Heat Dissipation
Integrated full aluminum heat sink achieves omnidirectional rapid heat dissipation, keeps the internal temperature stable during long-term operation, suppresses light decay, and greatly prolongs the service life of the downlight.
Complete Product Specifications
Size & Power Options
10W/12W: 75mm Cutout | 87mm Face Diameter | 57mm Height 15W/18W: 95mm Cutout | 107mm Face Diameter | 63mm Height 20W/25W: 120mm Cutout | 130mm Face Diameter | 70mm Height
Electrical & Lighting Parameters
Voltage: AC 100-240V / 200-240V (Global Universal) CCT: 2700K - 6000K (Customizable) CRI: Ra ≥ 90 Beam Angle: 55° Dimming Mode: TRIAC / 0-10V / DALI / Tuya / Zigbee Smart Dimming IP Rating: IP65 Waterproof
Optional Surface Finishes
Bright White, Bright Black, Matte White, Matte Black, Gunmetal Black, Matte Silver, Bright Silver, Rose Gold, Champagne Gold
Installation Instruction
The FT-DLT17 adopts high-tension spring clip mounting design, supporting fast flush installation for plasterboard and drywall ceilings. Precisely cut the ceiling hole according to the standard cutout size, complete safe wiring connection, squeeze the spring clips and push the fixture into the ceiling, then release the clips to finish installation. No extra brackets or professional tools are required for efficient construction.
Wide Application Scenarios
Residential Use: Bathroom, Shower Room, Kitchen, Living Room, Hallway, Luxury Villa Commercial Use: Hotel Lobby, Guest Room, Retail Store, Showroom, Office, Restaurant, All Indoor Wet-Area Projects
Manufacturer Service & Warranty
Professional OEM / ODM Customization
As a professional LED lighting factory with 14+ years of production experience, we provide full customized services for CRI, CCT, beam angle, surface finish, laser logo and packaging. We offer free lighting design simulation, fast sample service and flexible low MOQ to meet personalized brand and engineering project needs.
Certifications & After-Sales Guarantee
All FT-DLT17 downlights are fully certified with CE, RoHS, SAA, EMC, LVD, ISO9001. We provide a reliable 5-YEAR MANUFACTURER WARRANTY for all products, ensuring stable quality and worry-free after-sales service for global customers.
FAQ
-
Q1: Can this downlight be used in bathroom shower zones?
-
Q2: What dimming systems does this downlight support?
-
Q3: Is custom logo and color temperature available?
