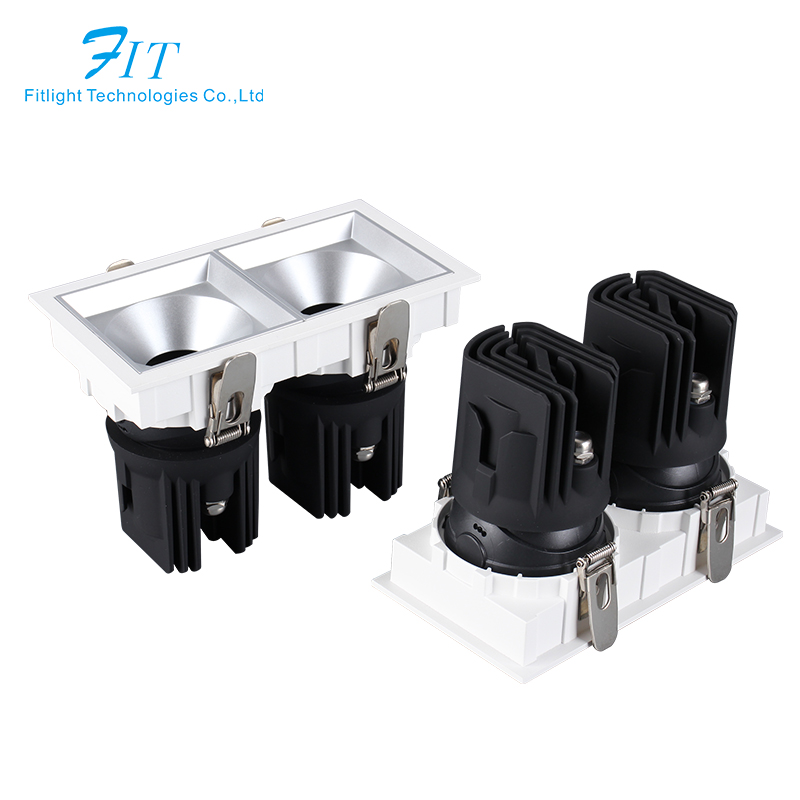

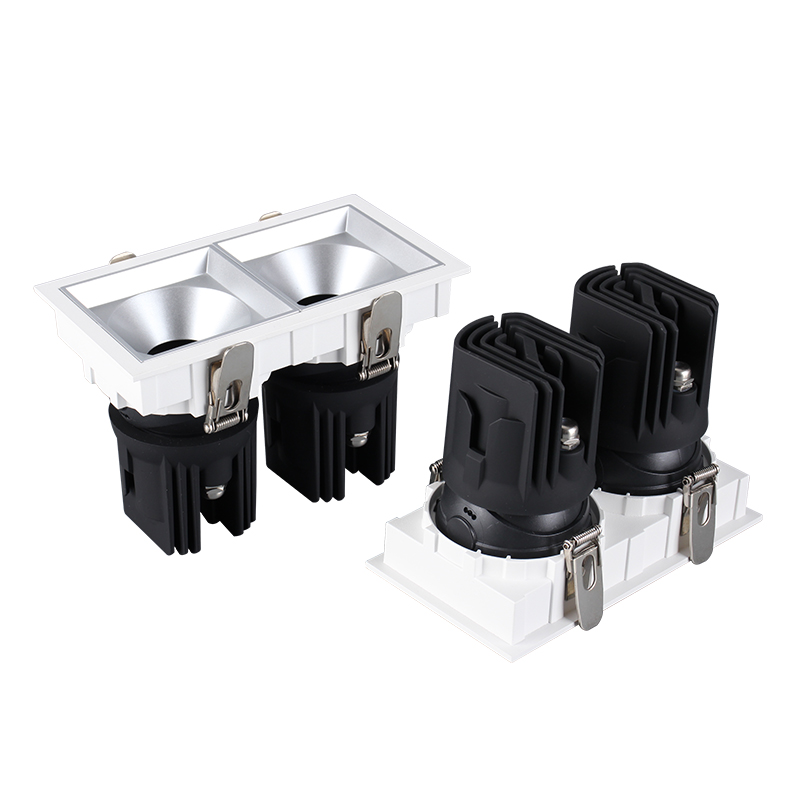

Waterproof Twin‑Head LED Spotlight-HGS21 Square 2 head
Specification
|
Brand Name |
Fitlight |
|
Item Type |
Led Trimless Double Waterproof Spotlight |
|
Power |
2*7W/2*10W/2*12W/2*15W/2*20W/2*25W |
|
Input Voltage(V) |
AC 110V ( ± 10%)/AC 220V( ± 10%) |
|
LED light source |
Bridgelux/OSRAM Cob Chip |
|
Color |
White, black, matte silver, gun black, bright silver, rose gold and antique bronze. |
|
Beam angle |
15°/24°/36°/55° |
|
CRI (Ra>) |
80/90/95 |
|
Cut out |
105*55mm/145*75mm/185*95mm |
|
Working Temperature( °C ) |
-20 ~ +50 |
|
Lamp Body Material |
Aluminum |
|
CCT |
Warm white(2700K/3000K/3500K)/Natural white (4000k)/Cool white (5000K/6000K) |
|
PF |
7-20W:0.5 25W:0.95 |
|
Dimmable |
Dimmable(0-10V ,Triac ,Dali) / TUYA (ZigbeeBluetooth) |
|
Key Feature1 |
Frameless Square Waterproof Spotlight |
|
Installation |
Recessed/Embedded |
|
Application |
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

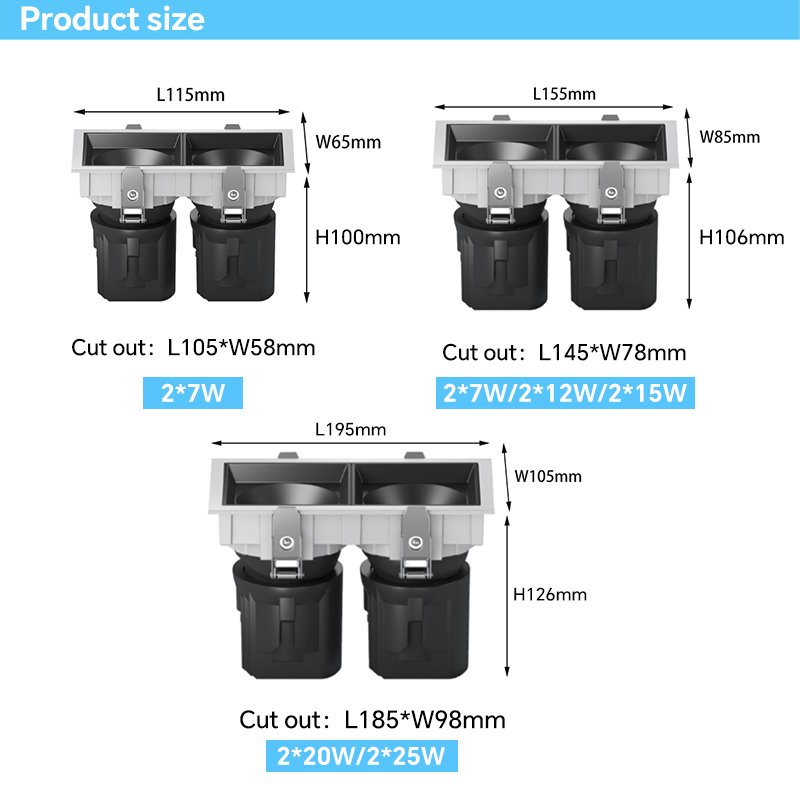

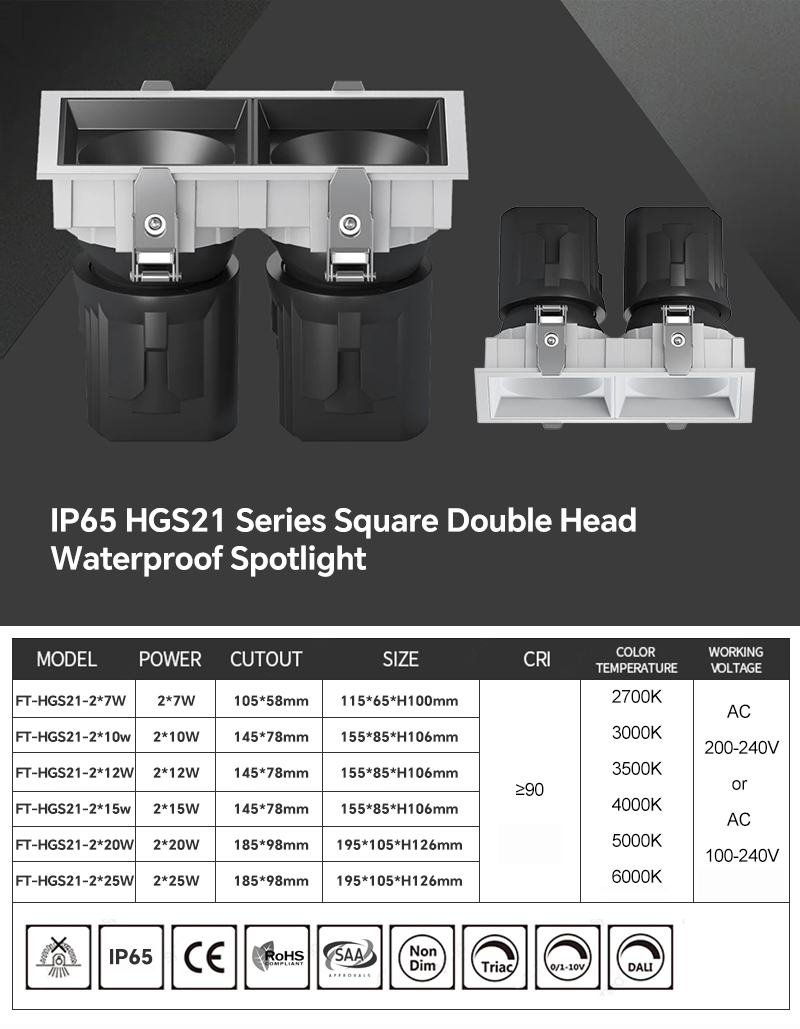

Model No.
|
Watts
|
Size(mm)
|
Cut Out(mm)
|
Beam Angle
|
LED Color
|
|
FT-HGS21-2*7W
|
2*7W
|
115*65*H100
|
105*58
|
15°/24°/36°/55°
|
2700K
3000K
3500K
4000K
5000K
6000K
|
|
FT-HGS21-2*10W
|
2*10W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*12W
|
2*12W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*15W
|
2*15W
|
155*85*H106
|
145*78
|
15°/24°/36°/55°
|
|
|
FT-HGS21-2*20W
|
2*20W
|
195*105*H126
|
185*98
|
15°/24°/36°/55°
|
|
|
FT-HGS20-2*25W
|
2*25W
|
195*105*H126
|
185*98
|
15°/24°/36°/55°
|

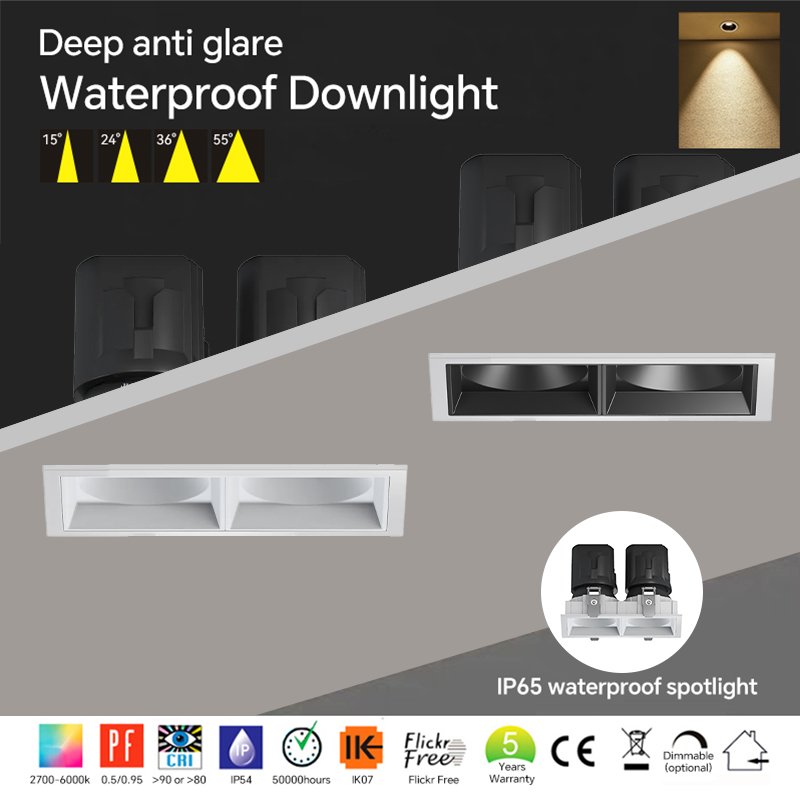

Square Double Head LED Waterproof Spotlight IP65 Dimmable 7W-25W

Discover our Square Double Head LED Waterproof Spotlight, a superior lighting solution engineered to redefine versatility, performance, and aesthetics for both residential and commercial projects worldwide. Crafted with precision and designed to excel in the most challenging environments, this fixture combines an innovative double-head design with an IP65 waterproof rating, delivering exceptional reliability and illumination quality in humid, rainy, or harsh conditions. Whether you’re illuminating a bathroom feature wall, a hotel lobby, a retail display, or an outdoor patio, this square double head spotlight offers flexible, high-performance lighting that elevates any space—blending seamlessly with modern, minimalist, or luxury design schemes.
Unlike single-head fixtures that limit coverage and flexibility, our Square Double Head LED Spotlight is engineered to meet the diverse needs of architects, contractors, distributors, and homeowners alike. Its sleek square profile creates a clean, streamlined look after installation, eliminating visual clutter and enhancing the architectural aesthetics of any space. With six power options, comprehensive dimming solutions, customizable reflector cups, and global voltage compatibility, this fixture is a one-stop lighting solution for projects of all scales—from small residential upgrades to large-scale commercial developments.
Built to the highest international standards, this double head spotlight is certified for global use, ensuring hassle-free shipping, installation, and compliance with local regulations. Backed by a 5-year full fixture warranty and dedicated after-sales support, it offers long-term reliability and peace of mind, making it the preferred choice for global distributors, importers, contractors, and design professionals.Discover our Square Double Head LED Waterproof Spotlight, a superior lighting solution engineered to redefine versatility, performance, and aesthetics for both residential and commercial projects worldwide. Crafted with precision and designed to excel in the most challenging environments, this fixture combines an innovative double-head design with an IP65 waterproof rating, delivering exceptional reliability and illumination quality in humid, rainy, or harsh conditions. Whether you’re illuminating a bathroom feature wall, a hotel lobby, a retail display, or an outdoor patio, this square double head spotlight offers flexible, high-performance lighting that elevates any space—blending seamlessly with modern, minimalist, or luxury design schemes.
Unlike single-head fixtures that limit coverage and flexibility, our Square Double Head LED Spotlight is engineered to meet the diverse needs of architects, contractors, distributors, and homeowners alike. Its sleek square profile creates a clean, streamlined look after installation, eliminating visual clutter and enhancing the architectural aesthetics of any space. With six power options, comprehensive dimming solutions, customizable reflector cups, and global voltage compatibility, this fixture is a one-stop lighting solution for projects of all scales—from small residential upgrades to large-scale commercial developments.
Built to the highest international standards, this double head spotlight is certified for global use, ensuring hassle-free shipping, installation, and compliance with local regulations. Backed by a 5-year full fixture warranty and dedicated after-sales support, it offers long-term reliability and peace of mind, making it the preferred choice for global distributors, importers, contractors, and design professionals.
Innovative Double-Head Design: Versatility Redefined

At the heart of our Square Double Head LED Waterproof Spotlight is its innovative double-head design, a game-changer for both residential and commercial lighting projects. This dual-head configuration offers unparalleled flexibility, allowing you to create focused accents, wide ambient illumination, or balanced symmetrical lighting—all from a single fixture. Unlike single-head spotlights that require multiple installations to cover large areas or highlight multiple focal points, our double-head design simplifies installation, reduces visual clutter, and delivers more versatile lighting options.
The two independent heads can be adjusted to different angles, giving you complete control over where the light is directed. Whether you want to highlight a bathroom feature wall, illuminate kitchen cabinetry, or create ambient lighting in a hallway, the double-head design adapts to your specific needs. This flexibility makes it ideal for a wide range of applications, from intimate residential spaces to high-traffic commercial areas, ensuring that you can achieve the perfect lighting effect for any project.
The sleek square profile of the fixture adds a modern, sophisticated touch to any space, complementing contemporary and minimalist design schemes. Unlike bulky, outdated fixtures that detract from the overall aesthetic, our square double head spotlight blends seamlessly into ceilings, walls, or outdoor surfaces, putting the focus entirely on the light effect. This clean, streamlined design makes it perfect for high-end projects such as luxury hotels, modern residences, and upscale retail stores, where every detail matters.
Six Power Options: Tailored Illumination for Every Project

We understand that every lighting project has unique requirements, which is why our Square Double Head LED Waterproof Spotlight is available in six power options—7W, 10W, 12W, 15W, 20W, and 25W—allowing you to tailor the luminous output to your specific needs. Whether you need subtle accent lighting for small spaces or powerful illumination for large commercial areas, we have the perfect wattage to suit your project scale.
- 7W - 12W (Accent & Task Lighting): These lower wattage options are ideal for targeted accent lighting and small-scale applications. Perfect for bathroom feature walls, kitchen cabinet lighting, residential hallways, and small retail displays, they deliver subtle, focused light that highlights specific features without overpowering the space. The 7W-12W range is perfect for creating a warm, inviting ambiance in intimate spaces, such as a bathroom vanity or a kitchen backsplash, while also providing enough light for practical tasks.
- 15W - 25W (Ambient & Commercial Lighting): Designed for larger spaces and more demanding applications, these higher wattage options deliver powerful, wide-ranging illumination that’s perfect for balconies, patios, garages, hotels, shopping malls, restaurants, and commercial display areas. The 15W-25W range provides ample ambient lighting for high-traffic areas, ensuring safety and visibility, while also enhancing the visual appeal of commercial spaces. Whether you’re lighting a hotel lobby, a restaurant patio, or a large retail floor, these wattages offer consistent, powerful light that covers large areas without sacrificing quality.
Each wattage option is engineered with high-performance LED chips and perfectly matched IP65 drivers, ensuring stable long-term operation and consistent light quality. The energy-efficient LED technology reduces power consumption, lowering operating costs for both residential and commercial users, while also minimizing environmental impact. No matter which wattage you choose, you can trust that our Square Double Head LED Spotlight will deliver reliable, long-lasting illumination.
Comprehensive Dimming Solutions: Smart Control for Every Space
In today’s smart building era, lighting control is more important than ever—and our Square Double Head LED Waterproof Spotlight is engineered to integrate seamlessly with modern smart lighting systems. It supports three comprehensive dimming solutions—0-10V dimming, DALI dimming, and Triac dimming—allowing for smooth, flicker-free light adjustment that adapts to any ambiance or requirement.

- 0-10V Dimming: The industry standard for commercial energy-saving controls, 0-10V dimming allows for precise light adjustment from 0% to 100%, making it ideal for office environments, retail spaces, and commercial buildings where energy efficiency is a top priority. This dimming method ensures consistent performance and compatibility with most commercial lighting control systems, helping you reduce energy consumption without compromising on light quality. Whether you’re adjusting the light levels in a conference room, a retail store, or a hotel lobby, 0-10V dimming provides smooth, reliable control.
- DALI Dimming: Designed for large-scale automated buildings such as hotels, shopping malls, and office complexes, DALI (Digital Addressable Lighting Interface) dimming offers addressable control, allowing you to adjust individual fixtures or groups of fixtures remotely. This advanced dimming option provides unparalleled flexibility, making it easy to create custom lighting scenes, schedule lighting changes, and integrate with building management systems (BMS) for seamless smart control. Perfect for high-end commercial projects, DALI dimming ensures that you can control the lighting with precision, creating the perfect ambiance for any event or time of day.
- Triac Dimming (Leading/Trailing Edge): Perfect for residential retrofit projects and spaces where existing dimmer switches are in place, Triac dimming is compatible with most standard residential dimmer switches. Whether you’re upgrading your home’s lighting or retrofitting a commercial space, this dimming option ensures easy installation and smooth, flicker-free light adjustment. It’s ideal for spaces where simplicity is key, allowing users to adjust the light levels with the flip of a switch, enhancing the ambiance of any room.
The smart dimming capabilities of our square double head spotlight not only enhance the user experience but also contribute to energy savings. By allowing you to adjust light levels based on occupancy, time of day, or specific needs, you can reduce energy consumption and lower operating costs—all while maintaining the perfect ambiance for your space.
Global Voltage Compatibility: Hassle-Free International Use

Engineered for global projects, our Square Double Head LED Waterproof Spotlight is equipped with AC100-277V wide voltage technology, making it fully compatible with electrical standards in Europe, the Middle East, Southeast Asia, North America, and other global markets. This wide voltage range eliminates the need for custom fixtures or voltage adapters, ensuring hassle-free international shipping and installation.
Whether you’re installing the fixture in a 120V North American home, a 230V European hotel, a 240V Middle Eastern commercial space, or a 220V Southeast Asian retail store, it will perform consistently and reliably. The Plug & Play design simplifies installation, allowing contractors and installers to set up the fixture quickly and efficiently—saving time and reducing labor costs.
This global compatibility makes our square double head spotlight the perfect choice for global distributors, importers, and contractors who work on international projects. With no need to stock different versions for different regions, you can streamline your inventory and offer a single, versatile product to clients worldwide.
Customizable Aesthetics: Seamless Integration with Any Design

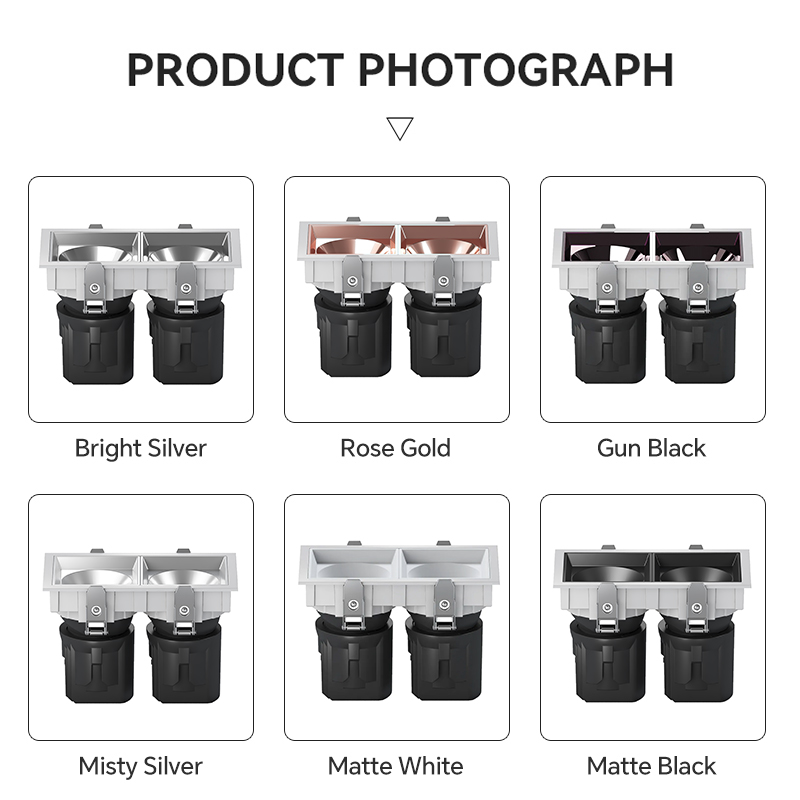

While performance is key, we understand that aesthetics matter too. Our Square Double Head LED Waterproof Spotlight offers six sophisticated inner reflector cup finish options, allowing you to seamlessly integrate the fixture with modern, minimalist, or luxury interior designs. Whether you want the fixture to blend into the background or stand out as a design accent, our customizable options make it easy to achieve the perfect look.

- Matte White: A clean, minimalist finish that blends seamlessly with light-colored ceilings, walls, and modern interiors. Perfect for spaces where you want the fixture to disappear, putting the focus on the light effect.
- Matte Black: A sleek, sophisticated finish that adds depth and contrast to dark or neutral surroundings. Ideal for contemporary spaces and industrial-inspired designs.
- Matte Silver: A subtle, contemporary shine that complements metallic accents and modern architecture. Perfect for spaces that require a understated, elegant touch.
- Gun Black: A bold, industrial-inspired finish that makes a statement in urban and modern spaces. Ideal for high-end retail stores and contemporary commercial spaces.
- Bright Silver: A polished, reflective finish that catches the light and adds a touch of luxury. Perfect for upscale hotels, luxury residences, and high-end retail spaces.
- Rose Gold: A warm, elegant finish that elevates luxury designs. Ideal for high-end hospitality venues, upscale residential properties, and boutique retail stores.
The customizable reflector cups, combined with the sleek square profile of the fixture, ensure that it blends seamlessly with any design scheme—from minimalist homes to luxury hotels. This versatility makes our square double head spotlight a favorite among designers and contractors who want to create cohesive, visually appealing spaces.
