Waterproof external outdoor recessed lighting IP65 Downlight FT-DLT09
Features:
● IP65 Rated-Fully dustproof and waterproof
● High Lumen Efficacy– Optimized for brightness
● Long Lifespan-Up to 50,000 hours of operation
● High Power Factor (PF >0.9)–Reduces energy waste
● Flicker-Free–Stable light output for eye comfort
● High-Efficiency-saving with excellent lumen output
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 10-20W：0.5 ; 25W-80W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led COB Recessed Downlight |
| Power | 10W/15W/20W/30W/40W/50W/70W/80W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 24° /45°/ 60° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 75/90/120/160/220mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 10W-20W: 0.5 ; 25W-80W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

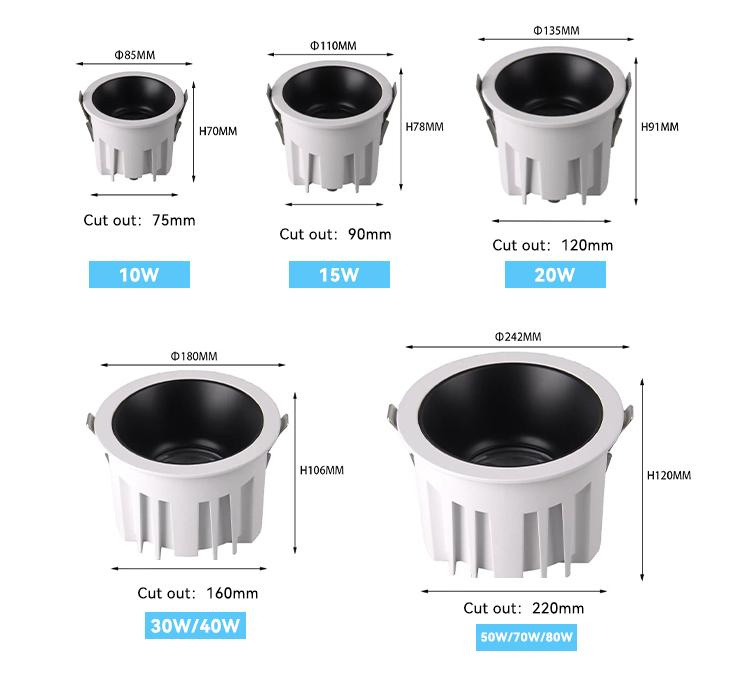

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-DLT09-10W |
10W |
D85*H70 |
¢75 |
2700K
|
|
FT-DLT09-15W |
15W |
D110*H78 |
¢90 |
|
|
FT-DLT09-20W |
20W |
D135*H91 |
¢120 |
|
|
FT-DLT09-30W |
30W |
D180*H106 |
¢160 |
|
|
FT-DLT09-40W |
40W |
D180*H106 |
¢160 |
|
|
FT-DLT09-50W |
50W |
D242*H120 |
¢220 |
|
|
FT-DLT09-70W |
70W |
D242*H120 |
¢220 |
|
|
FT-DLT09-80W |
80W |
D242*H120 |
¢220 |
IP65 Rated Waterproof Downlight
Premium Waterproof Protection
• IP65 Certified – Complete dustproof and powerful water resistance
• Robust Construction – Sealed design withstands direct water jets from any angle
•Durable Performance – Ideal for high-humidity and outdoor-adjacent locations
Where to Use:
• Bathrooms & Saunas – Safe for shower zone installation
• Outdoor Covered Areas – Porches, patios, and balconies
• Commercial Wet Locations – Pool areas, hotel spas, and restaurant exteriors
• Industrial Environments – Food processing areas and car washes
Flicker-Free Downlight – Easy on the Eyes
This downlight is flicker-free
• True flicker-free lighting technology
• Eliminates eye strain and headaches
• Perfect for spaces where people work or relax for long hours

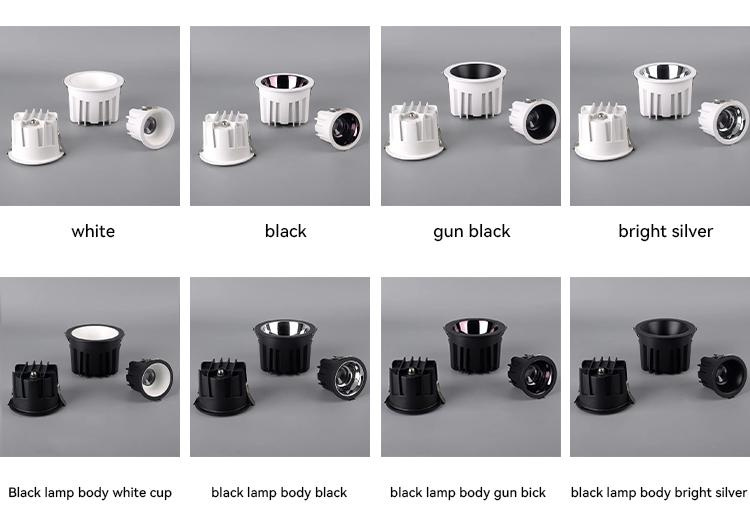

Multi-Reflector Color Options
This downlight offers customizable reflector colors to match your aesthetic and functional needs:
Available Reflector Colors

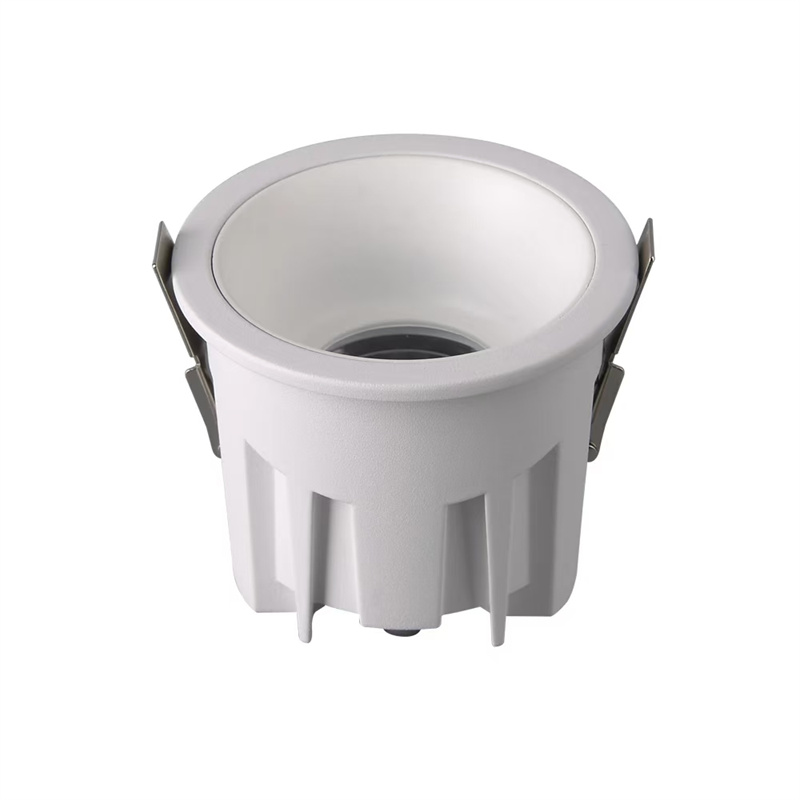

1. White Reflector
Bright, neutral lighting
Blends seamlessly with ceilings
Best for: Residential bathrooms, retail spaces

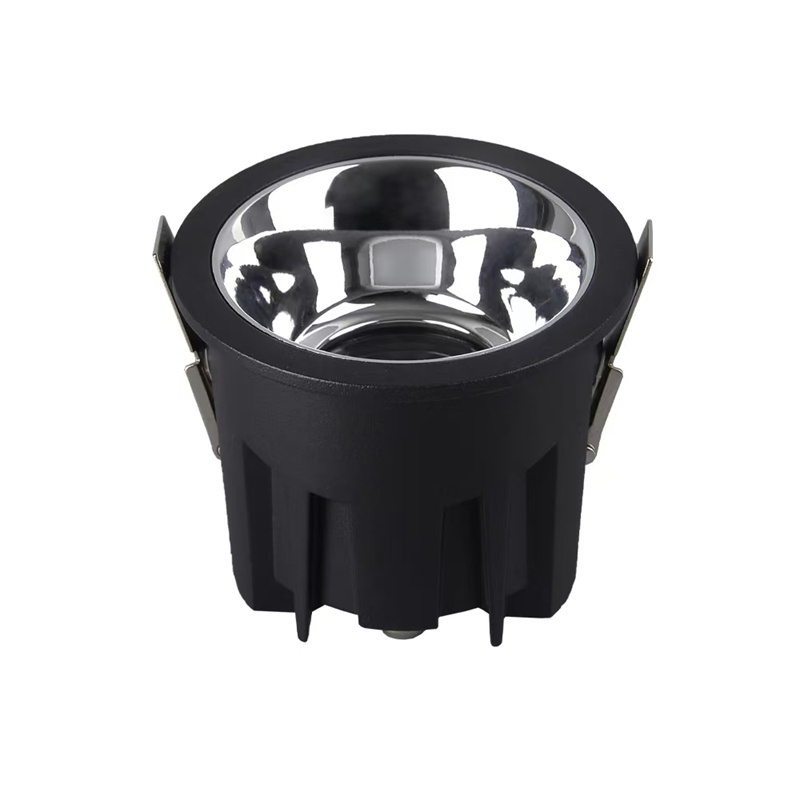

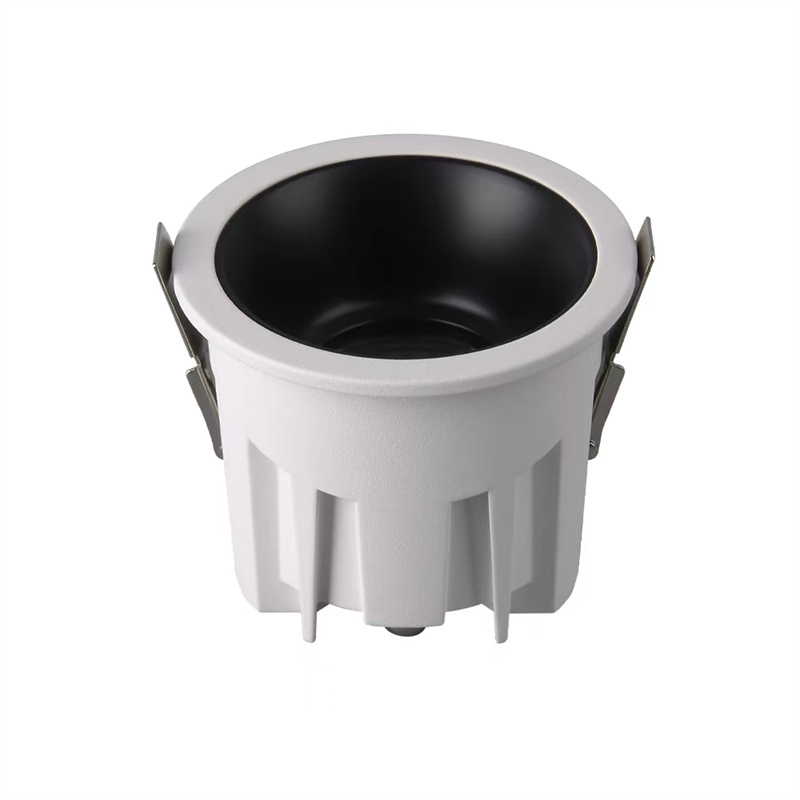

2. Black Reflector
Reduces glare for focused lighting
Creates dramatic visual effects
Best for: Luxury hotels, accent lighting

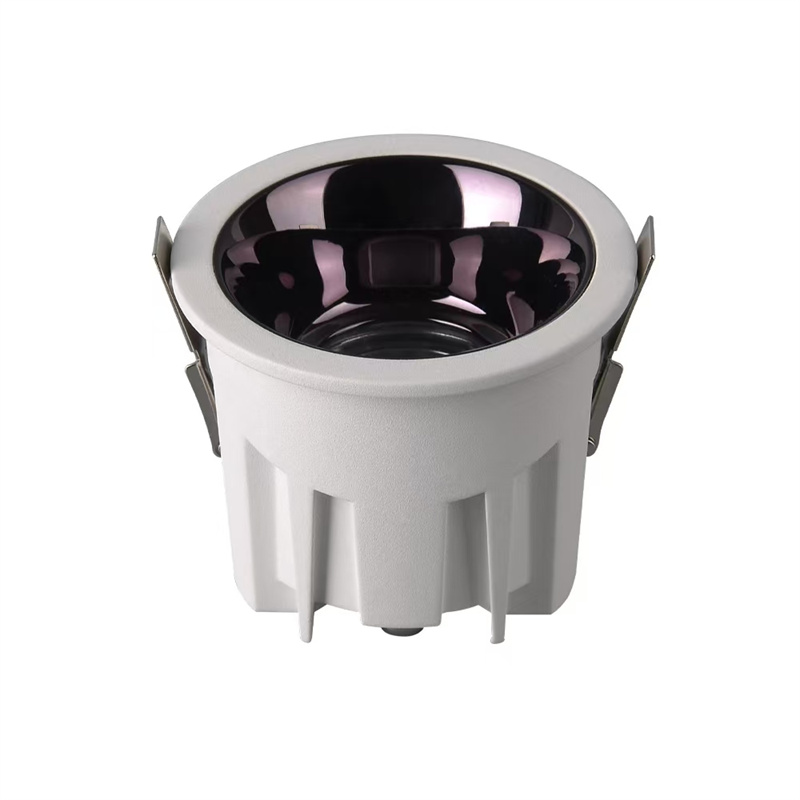

3. Gunmetal (Dark Gray) Reflector
Modern, sophisticated look
Minimizes light spill
Best for: Restaurants, high-end residences

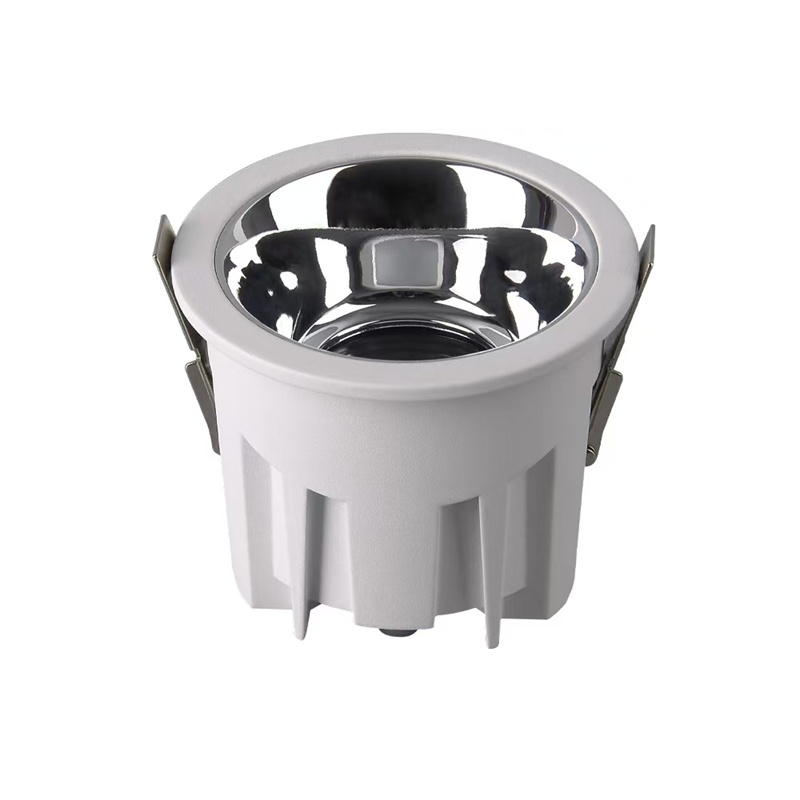

4. Silver Reflector
Maximizes light reflection
Enhances brightness
Best for: Commercial corridors, workspaces
Available Wattages & Recommended Uses
Full Wattage Range:
10W | 15W | 20W | 30W | 40W | 50W | 70W | 80W
(Complete selection from subtle accent lighting to powerful illumination)
Intelligent Lighting Control System
1. Advanced Dimming Capabilities
• Residential dimming: Compatible with standard TRIACwall dimmers
• Commercial-grade control: 0-10V dimming for professional lighting systems
• Smart building integration: Fully compliant with DALI DT8 protocols
2. Dynamic White Light Adjustment
• Tunable CCT range: 2700K (warm white) to 6000K (cool daylight)
• Precision tuning: ±50K color temperature accuracy
• Customizable presets: Save preferred lighting scenes for different occasions
3. Multi-Protocol Connectivity
Wireless Control Options:
• Bluetooth Mesh for local network control
• WiFi for cloud-based smart home integration
•Zigbee 3.0 for robust IoT connectivity
Wired Professional Solutions:
• DALI DT8 certified for advanced color control
•Compatible with major building automation systems
Key Features:
Flicker-free performance at all dim levels
Smooth dimming from 1% to 100%
Group/zone control capabilities
Energy monitoring functionality

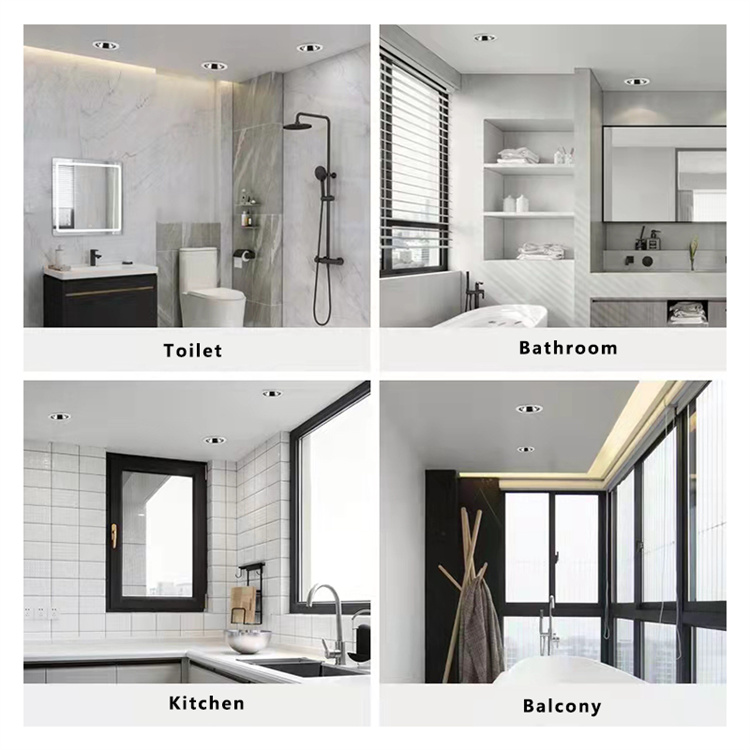

Application
IP65 Rated Waterproof Downlight
Perfect for High-Moisture Areas:
• Bathrooms – Safe near showers & bathtubs
• Kitchens – Withstands steam & splashes
• Balconies – Weatherproof for outdoor use
Waterproof IP65 Recessed Downlight: Engineered for Demanding Environments

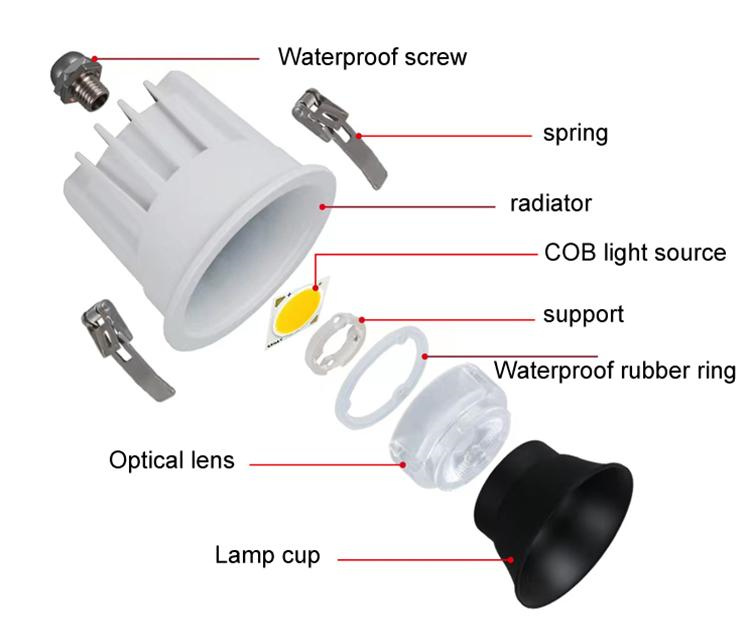

This high-performance waterproof downlight is engineered with an IP65-rated sealed housing that delivers uncompromising protection against dust ingress and powerful water jets. Unlike standard fixtures, its triple-layer gasket system creates a hermetic seal around the lens, junction box, and mounting springs – ensuring continuous operation even in direct water exposure or high-humidity conditions. The marine-grade polycarbonate lens resists corrosion, UV degradation, and thermal shock (-25°C to +45°C), while its maintains beam precision in wet settings.
Waterproof Advantages:
● Zero Moisture Penetration: IP65 certification guarantees protection from low-pressure water jets from any direction, eliminating short circuits.
● Dustproof Operation: Sealed optics prevent particle accumulation that causes lumen depreciation in industrial settings.
● Thermal Management: Die-cast aluminum housing with integrated cooling fins dissipates heat 40% faster than standard models, preventing condensation buildup.
● Maintenance-Free: Corrosion-resistant springs and stainless-steel clips reduce replacement costs in aggressive environments.
Application-Specific Features:
1. Outdoor Hardscapes: Ideal for pool surrounds, garden paths & pergolas.
2. Commercial Kitchens: Withstands steam, grease, and high-pressure washdowns. Features shatterproof lens for food safety compliance.
3. Industrial Zones: Operates reliably in car washes, warehouses, and refrigeration units. Vibration-resistant design tolerates machinery impacts.
4. Coastal Installations: Salt-spray resistant construction meets ISO 9001 corrosion standards.
5. Bathrooms & Spas: Certified for Zone 1 wet area installation (IP65 > IP44 standard). Frosted optic option available for steam room ambiance.
Smart Integration: Compatible with DALI/0-10V dimming for energy savings in automated environments.
Backed by 5-year warranty and global safety certifications (CE, RoHS, SAA pending).Specify beam colors (2700K-6000K) and finishes (black/white) for architectural cohesion.
