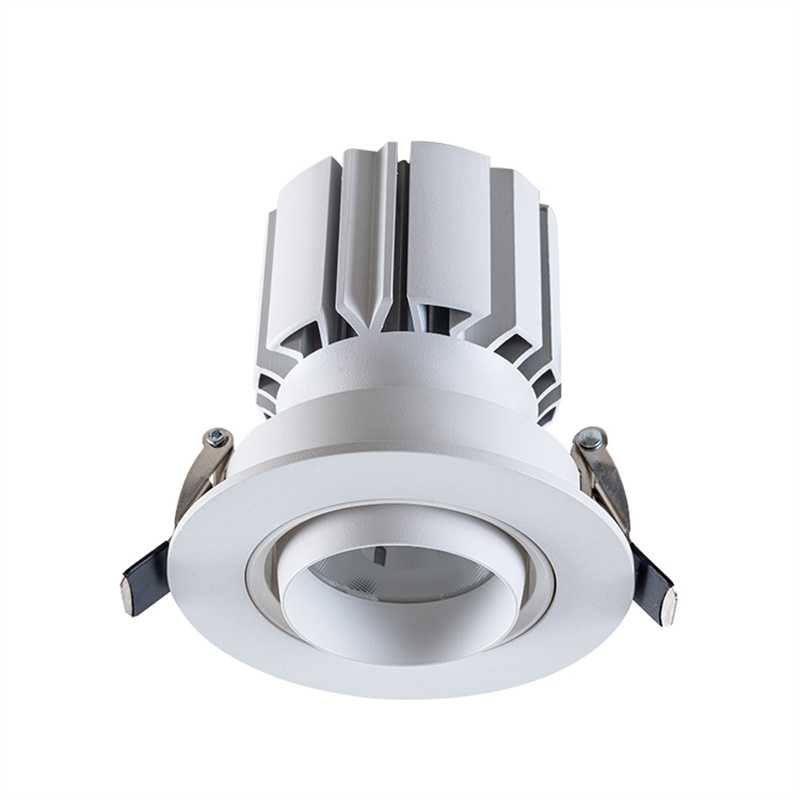

Wholesale Led Downlight 20W Recessed Grille Light FT-GL02
Features:
● Wide Color Temp Range–2700K-6000K for warm to cool white
● ECO-Friendly–Mercury-free and recyclable materials
● No UV/IR Radiation–Protects sensitive objects (e.g., artwork)

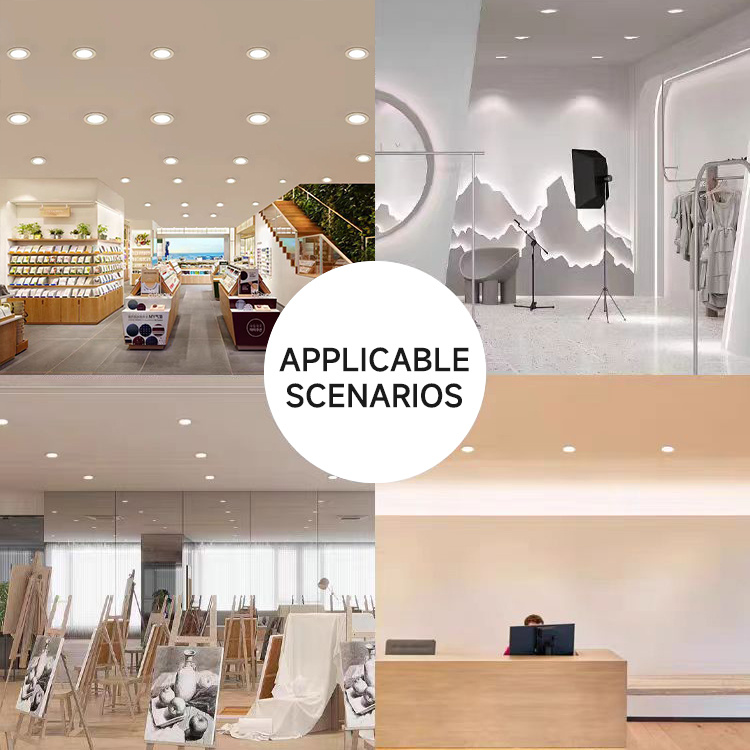

● Wide Application–Offices, retail, warehouses, and more
● OEM/ODM Support–Custom solutions for bulk orders
● Small Cut-Out, High Power–Only 80mm cut-out supports up to 20W
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 20W：0.5 ; 25W-40W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Led Grille Light |
| Power | 20W/25W/30W/35W/40W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional (Other driver brands can also choose from) |
| Color | White |
| Beam angle | 15°/24°/36°/60° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 80/95/115MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 20W: 0.5 ; 25W-40W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Living Room/Office Building/Apartment/Kitchen/Mall/Residential/Supermarket/ Office/Hospital .etc |
|

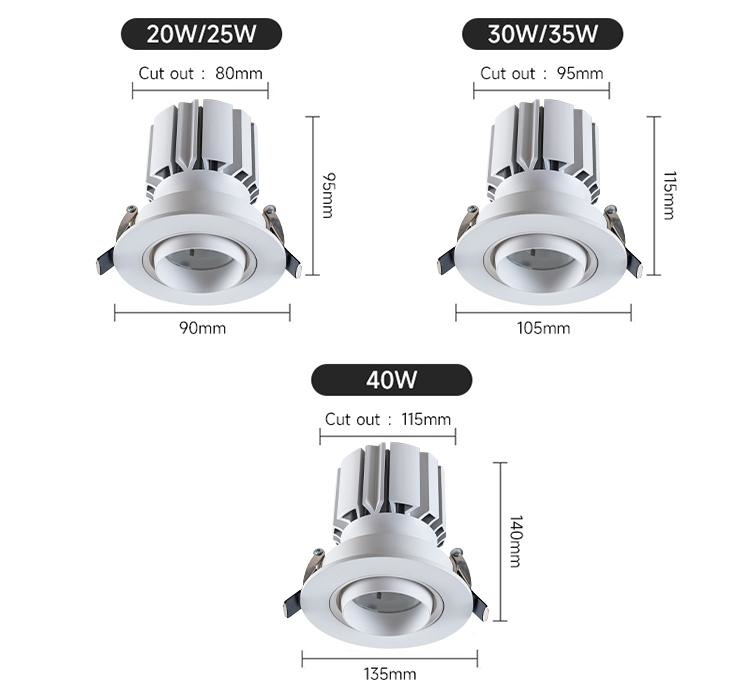

Model No. |
Watts |
D*H(mm) |
Cut out(mm) |
LED Color |
|
FT-GL02-20W |
20W |
D90*H95 |
¢80 |
2700K |
|
FT-GL02-25W |
25W |
D90*H95 |
¢80 |
|
|
FT-GL02-30W |
30W |
D105*H115 |
¢95 |
|
|
FT-GL02-35W |
35W |
D105*H115 |
¢95 |
|
|
FT-GL02-40W |
40W |
D135*H140 |
¢115 |
GL02 Advanced LED Downlight - Precision Lighting with Smart Control
The Ultimate Compact Lighting Solution for Modern Spaces
Introducing the GL02 LED Downlight - where compact design meets professional-grade performance. This innovative fixture packs high-power illumination into a minimal ceiling opening, combining deep anti-glare technology with unparalleled adjustability and smart lighting control. Designed for architects, lighting designers, and facility managers, the GL02 delivers exceptional visual comfort and installation flexibility for commercial, hospitality, and high-end residential applications.
Revolutionary Features & Benefits
1. High Power in Minimal Space
· Only 3.4" opening required for up to 40W output
· Slim 1.2" profile maintains clean ceiling lines
· Quick-connect junction box reduces installation time by 40%

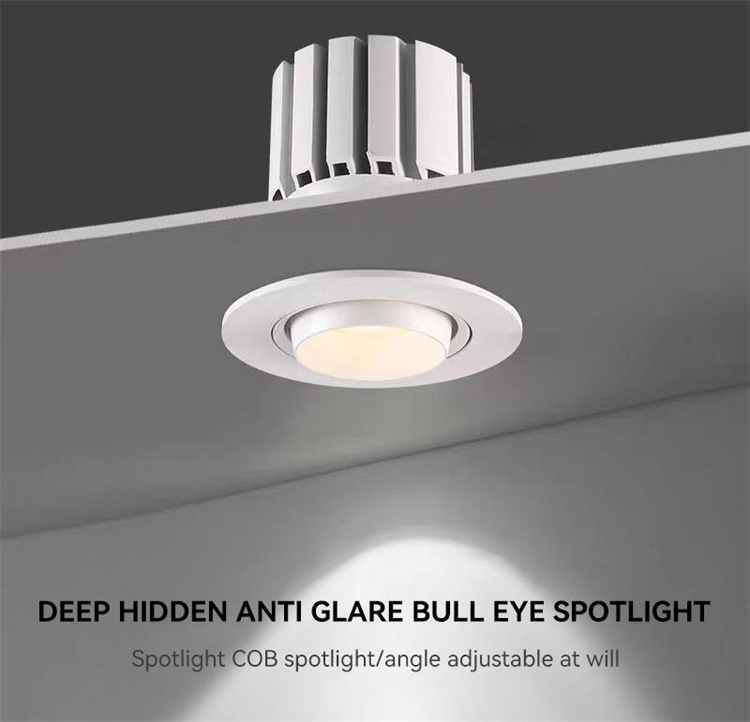

2. Professional-Grade Anti-Glare Performance
· Deep recessed design (UGR<19)
· Certified eye-comfort lighting for sensitive environments
· Reduces visual fatigue in offices and classrooms by 60%
· Uniform light distribution without hot spots

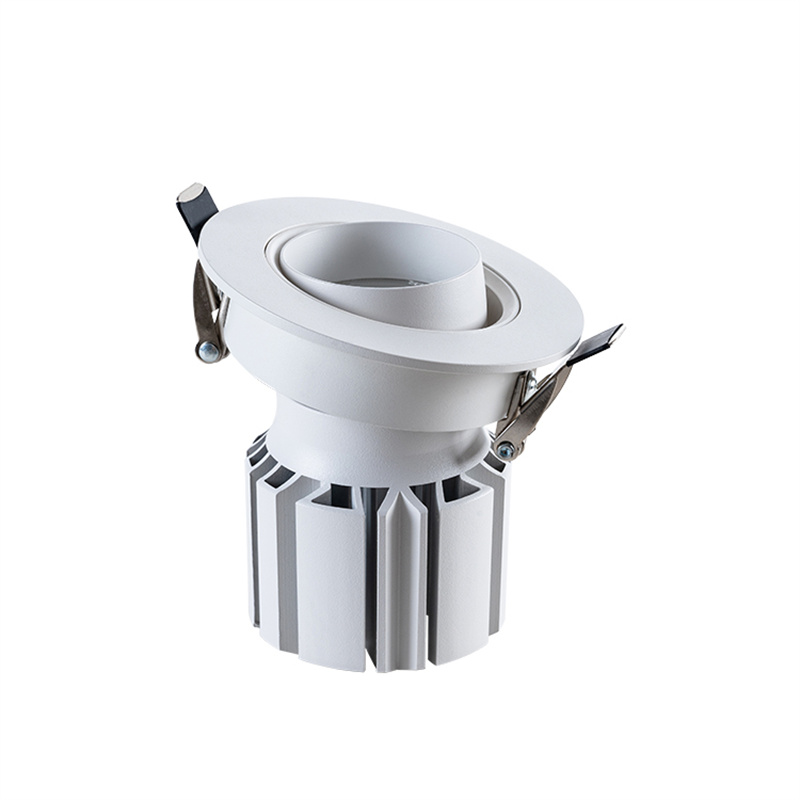

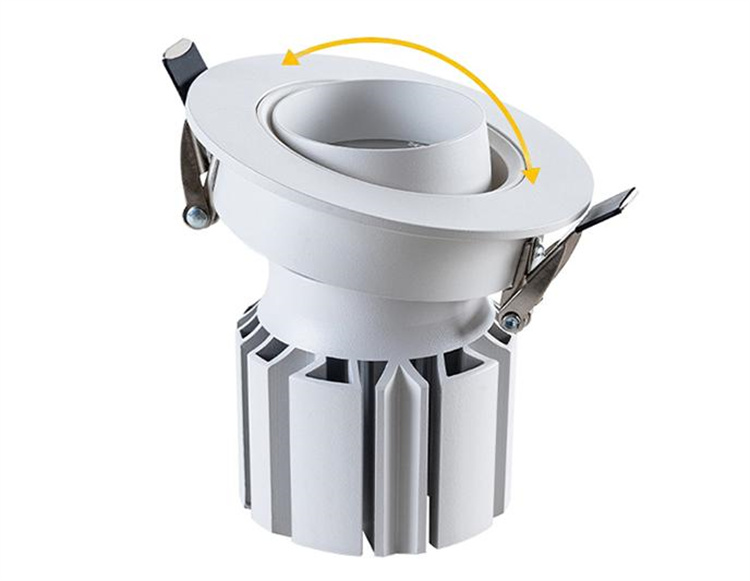

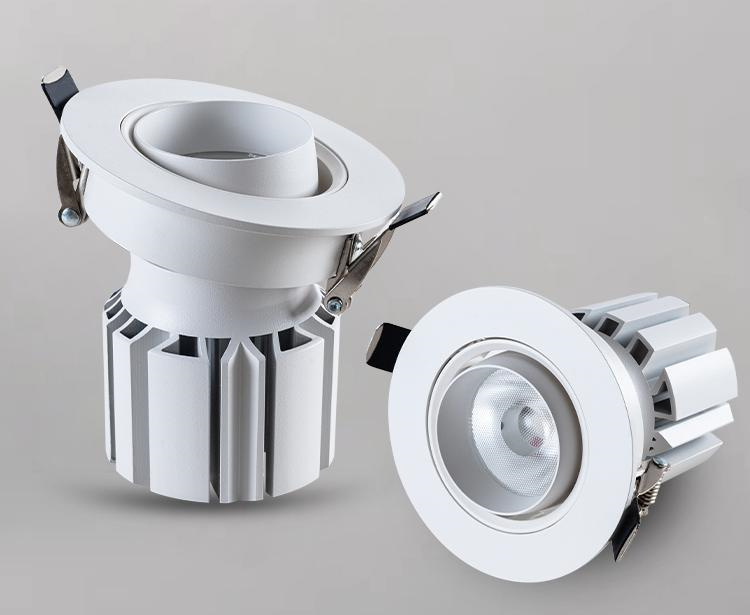

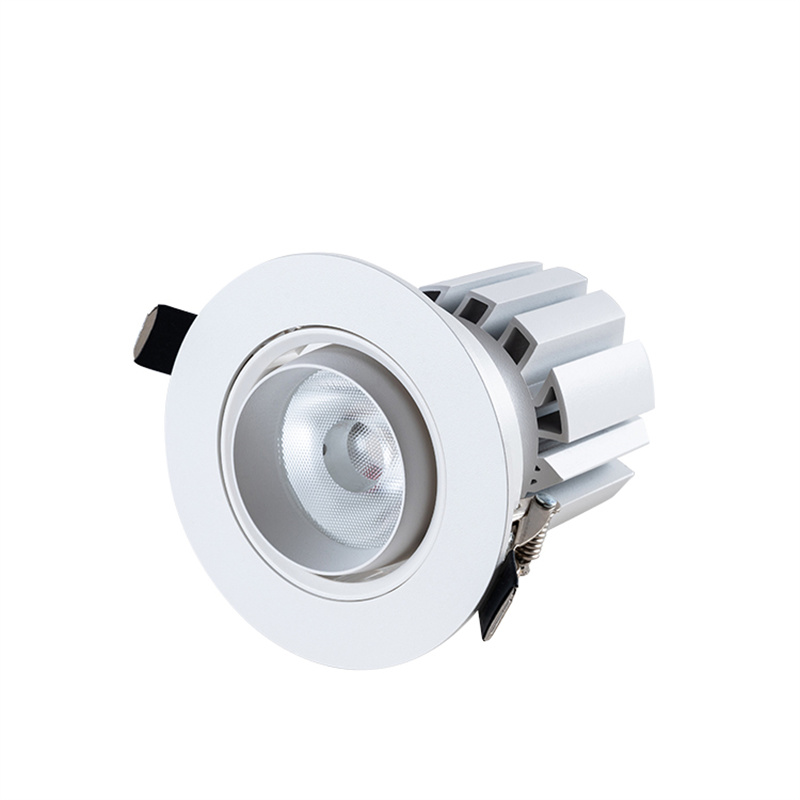

3. Precision 360°+30° Adjustability
· Full horizontal rotation for perfect light positioning
· 30° vertical tilt enables precise accent lighting
· Tool-free magnetic adjustment for easy aiming
· Maintains position without drift over time

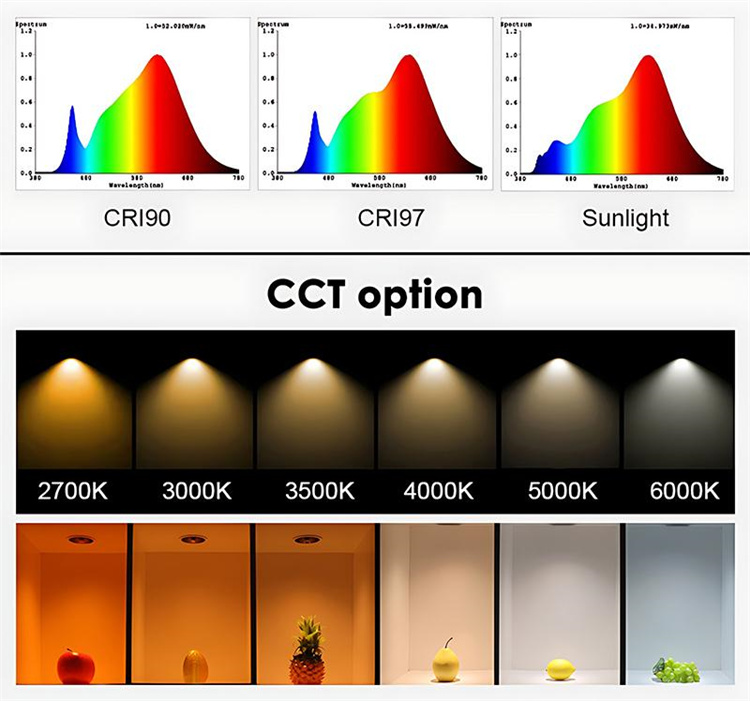

4. Complete CCT Options
Choose from:
·Warm White(2700K/3000K/3500K)
·Natural White(4000K)
·Cool white(5000K/6000K)

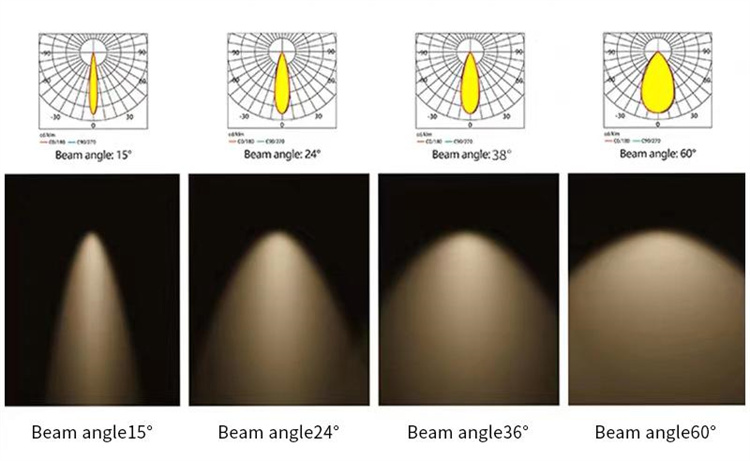

5. Four Professional Beam Angles
Select your perfect light spread:
·15° (Spot): Artwork, retail displays
·24° (Narrow Flood): Task lighting
·36° (Medium Flood): General lighting
·60° (Wide Flood): Ambient illumination
6. High-Efficiency Power Options
20W/25W: 1800-2250 lumens
30W/35W: 2700-3150 lumens
40W: 3600 lumens
7. Advanced Dimming & Control
Single CCT Dimming:
· TRIAC · 0-10V · DALI
Tunable White Control:
· RF Remote
· Tuya Smart (Bluetooth/Zigbee/WiFi)
· DALI DT8
Technical Excellence
· Material: Die-cast aluminum
· Thermal Management: 55°C max. housing temperature
· Input Voltage: 100-277V (universal)
· Lifespan: 50,000 hours (L90)
· Certifications: CE, RoHS, SAA
Ideal Applications
· C orporate: Executive offices, conference rooms
· Retail: Jewelry stores, boutique displays
· Hospitality: Luxury hotels, fine dining
· Healthcare: Clinics, patient rooms
· Residential: High-end kitchens, art lighting
Compact High-Power Adjustable Recessed Downlight: Maximum Output, Minimal Opening
Introducing our space-saving LED recessed downlight that defies conventional size-power ratios. Engineered with precision optics in an ultra-compact housing, this adjustable fixture delivers exceptional lumen output from remarkably small apertures—perfect for retrofits and space-constrained installations where every millimeter matters.
Breakthrough Power Density
● 80mm Cut-Out / 20W
• Replaces traditional 100W halogen in tight spaces (soffits, display cases)
• 2200lm output (110lm/W) with 60° wide flood beam
● 115mm Cut-Out / 40W
• Equivalent to 200W metal halide performance
• 4400lm output for high-ceiling retail/industrial applications
Patented Thermal Architecture
• Copper-core MCPCB transfers heat 35% faster than standard aluminum designs
• Aerogel insulation protects ceiling materials from heat transfer
• Maintains >90% lumen output at 50,000 hours
Precision Adjustability
• ±15° smooth swivel (tool-free) for accent lighting adjustments
• Zero flicker operation (TÜV-certified drivers)
Installation Advantages
✓ Fits 10-30mm ceiling thickness with universal spring clips
✓ Pre-wired quick-connect terminals save 50% installation time
✓ Fire-rated housing (Class A) for commercial buildings
Professional Applications
◼ Luxury Retail: Highlight displays without bulky fixtures
◼ Aircraft Cabins: FAA-compliant low-profile lighting
◼ Historic Buildings: Preserve architecture with discreet installations
◼ Modular Offices: Upgrade existing grids without reconstruction
Certifications
• CE, RoHS, SAA
Why Engineers Specify This:
→ 40% smaller openings vs. competitors at same wattage
→ 5-year full-performance warranty
