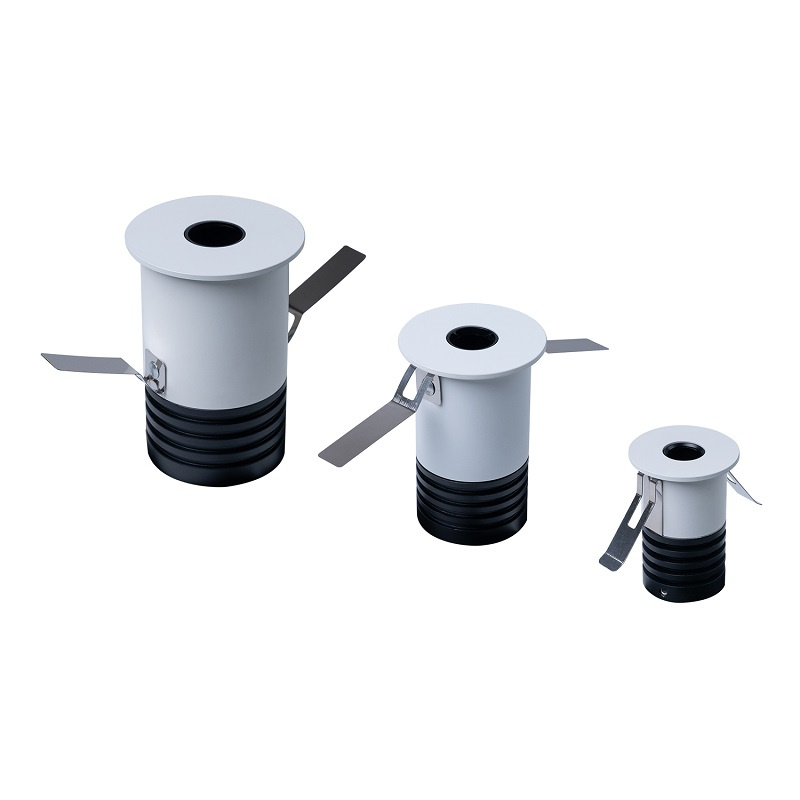

Wholesale Mini Led Spotlights for Hotel Project FT-HGS14
Features:
● Deep Recessed Anti-Glare- UGR<19
● CE/RoHS/SAA certified for worldwide markets
● Dimmable 0-100%-Smooth brightness adjustment
● Compact&Sleek Design- Ultra-small form factor
● High CRI≥90-Professional-grade color rendering quality
● Ideal for display lighting in retail/homes/hotels/museums
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-15W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 3W/5W/7W/10W/12W/15W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 15°/24°/36° |
| CRI (Ra>) | 80/90/95 |
| Cut out | ¢35/¢45/¢55 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |

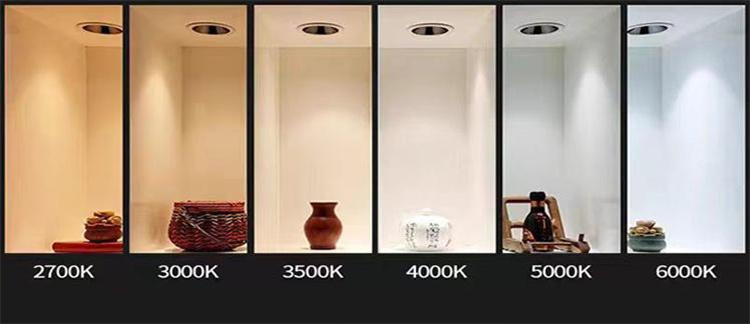

| CCT | Warm White(2700K/3000K/3500K) Natural White(4000K) Cool white(5000K/6000K) |
| PF | 7-15W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/ Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|

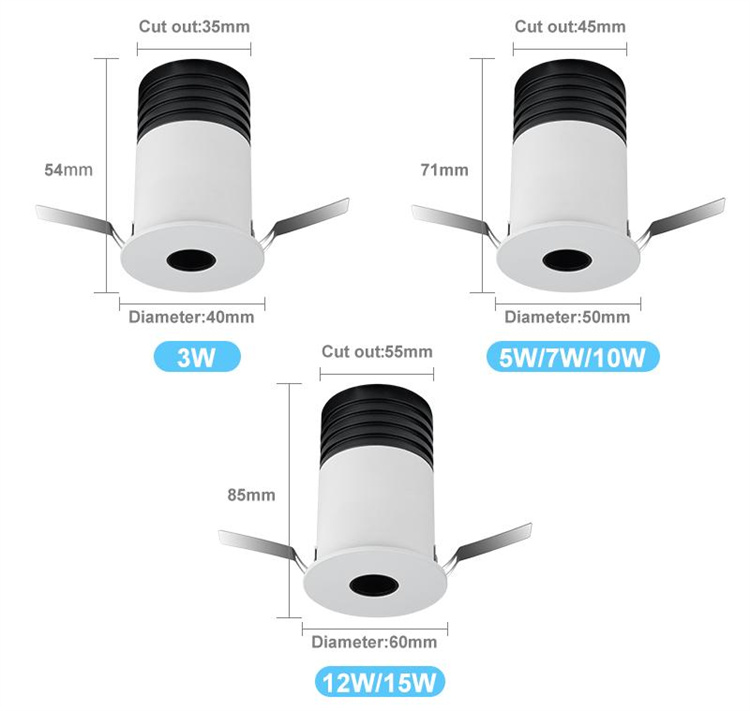

Model No. |
Watts |
Size(mm) |
Cut Out |
Beam Angle |
LED Color |
|
FT-HGS14-3W |
3W |
D40*H54 |
¢35 |
15°/24°/36° |
2700K |
|
FT-HGS14-5W |
5W |
D50*H71 |
¢45 |
15°/24°/36° |
|
|
FT-HGS14-7W |
7W |
D50*H71 |
¢45 |
15°/24°/36° |
|
|
FT-HGS14-10W |
10W |
D50*H71 |
¢45 |
15°/24°/36° |
|
|
FT-HGS14-12W |
12W |
D60*H85 |
¢55 |
15°/24°/36° |
|
|
FT-HGS14-15W |
15W |
D60*H85 |
¢55 |
15°/24°/36° |

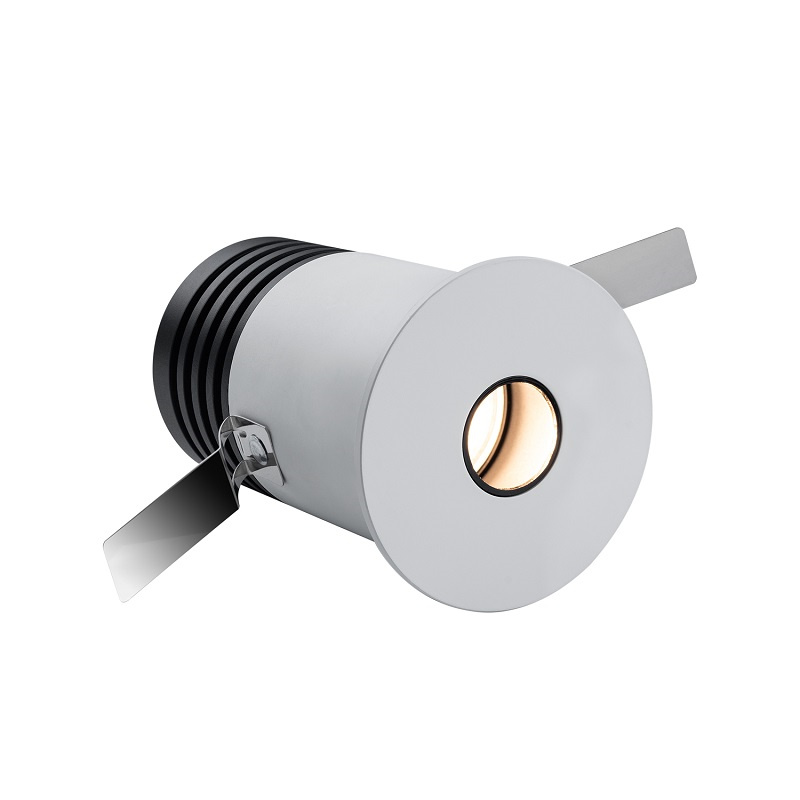

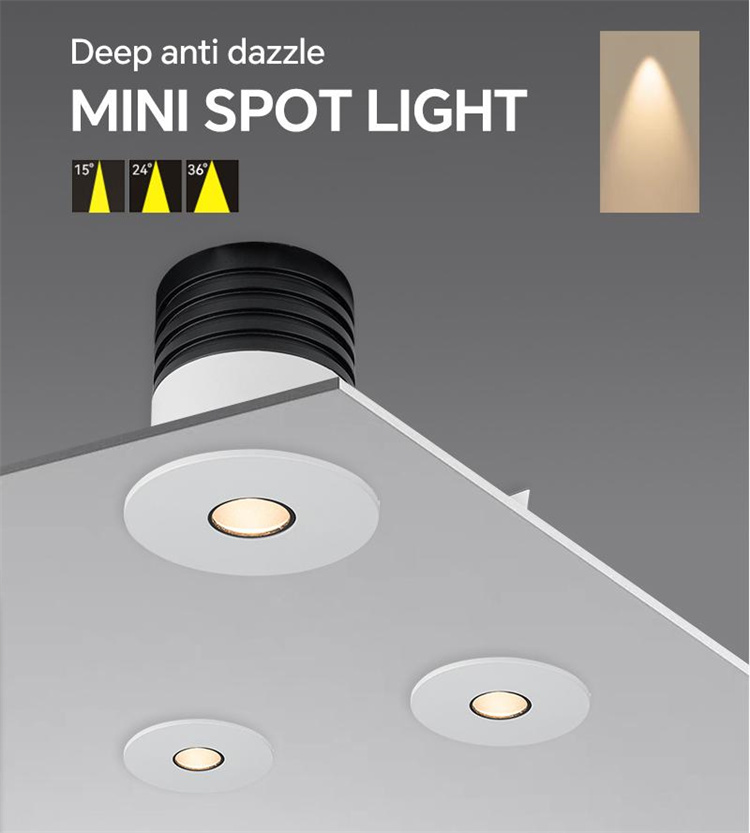

Deep anti-glare design
The radiator and reflector are made as one solid piece, providing superior heat dissipation and lasting durability.
The curved front ring blends perfectly into your ceiling, creating a clean, frameless spotlight look.
This spotlight adopts a deep anti-glare design. The lamp head is 6 cm deep, protecting the eyes and achieving "seeing the light but not the lamp".

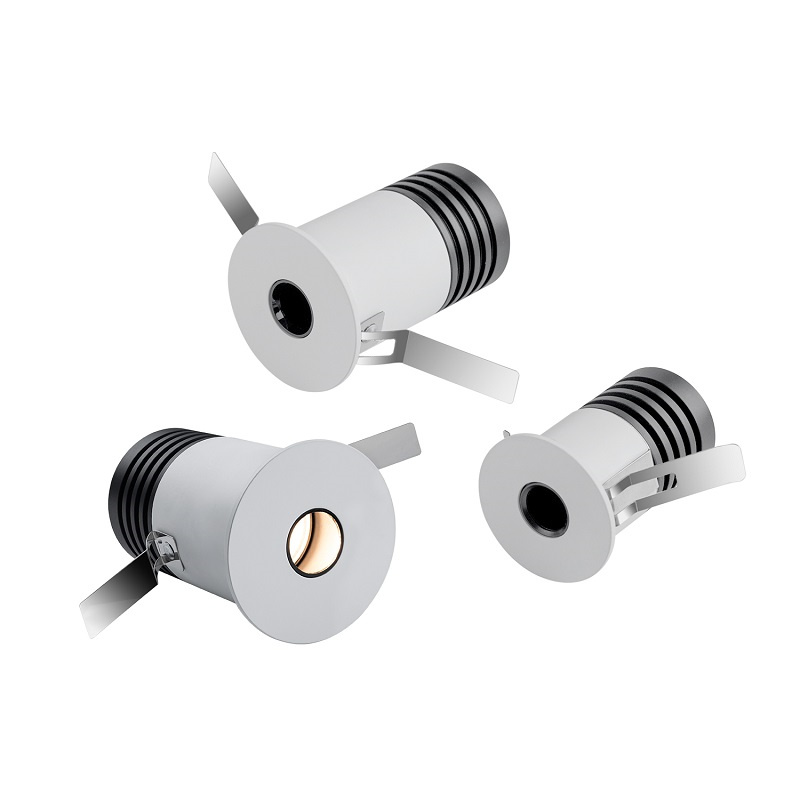

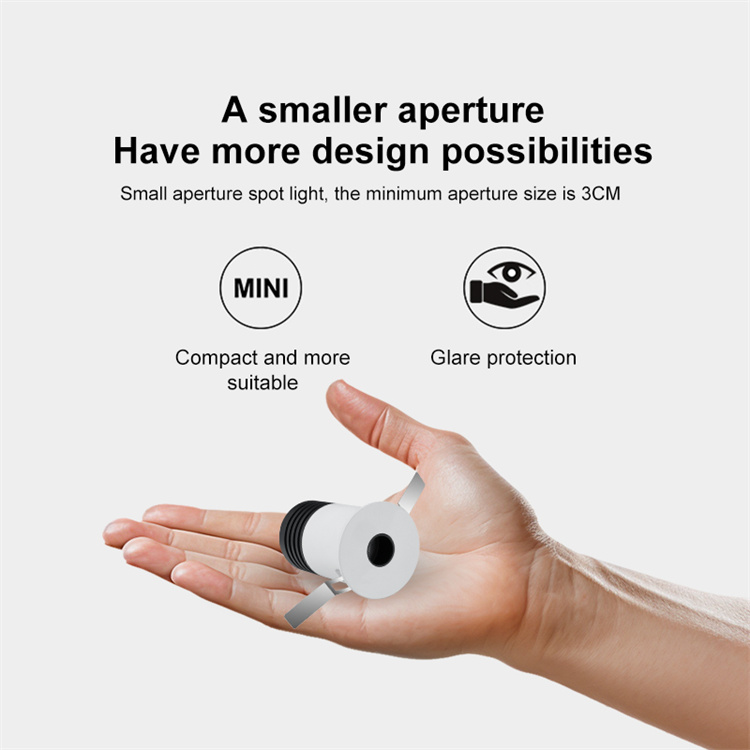

Mini style spotlight
A smaller aperture,have more design possibilities.
Small aperture spot light,the minimum aperture size is 3cm

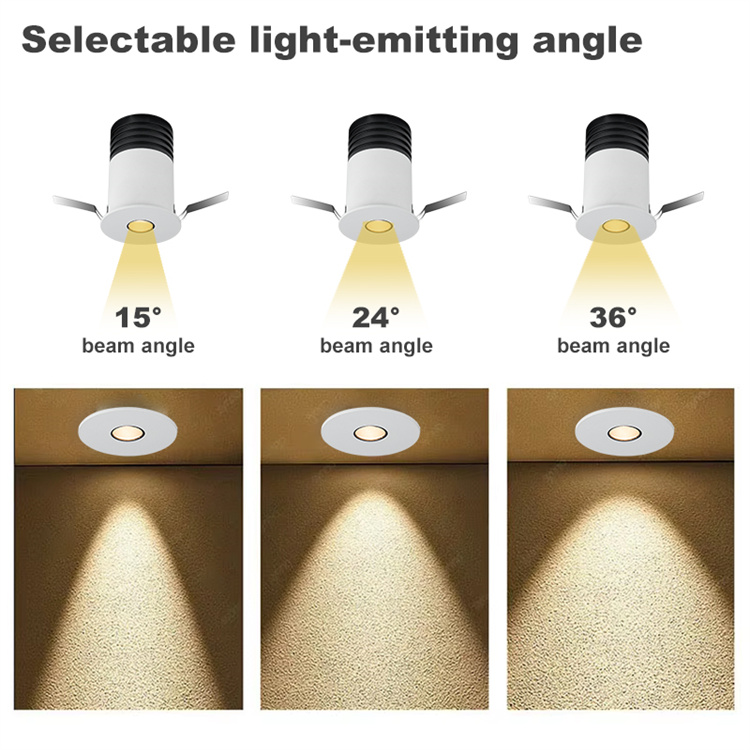

Versatile Beam Angles for Every Lighting Need
This spotlight offers four beam angles (15°/24°/36°/55°) to create the perfect lighting for any space:
15° Narrow Spot
• Sharp, focused beam
• Perfect for highlighting artwork, shelves, or architectural details
24° Medium Flood
• Balanced light coverage
• Ideal for kitchen counters, workspaces, or reading nooks
36° Wide Flood
• Broad, even illumination
• Great for living rooms, dining areas, or hallway lighting
Mini Spotlights – Compact & Powerful Lighting
Choose the perfect brightness for your space with our mini spotlight range:
Available Wattages:
3W (Soft accent lighting)
5W (Subtle feature lighting)
7W (Balanced general lighting)
10W (Bright task lighting)
12W (Powerful spotlighting)
15W (High-intensity illumination)
Top Features:
True-color 90+ CRI (all options)
Works with most dimmer switches (0-10V/TRIAC)
Flexible Dimming & Color Control Options
Standard Dimmable Models:
• Works with regular wall dimmers (Triac)
• Professional 0-10V dimming systems
• Smart DALI lighting networks
Adjustable White Light (2700K-6000K):
▸ Wireless Control: Works with all major systems (Bluetooth/WiFi/Zigbee)
▸ Professional Wired Control: DALI DT8 standard
Smart Lighting Features:
✓ Smooth color temperature changes
✓ No flickering - eye comfort guaranteed
✓ Compatible with popular smart home systems

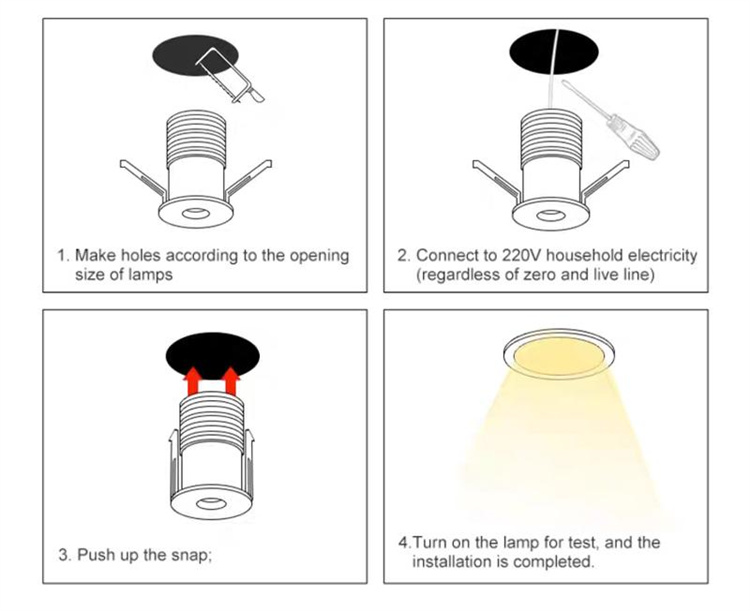

Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.

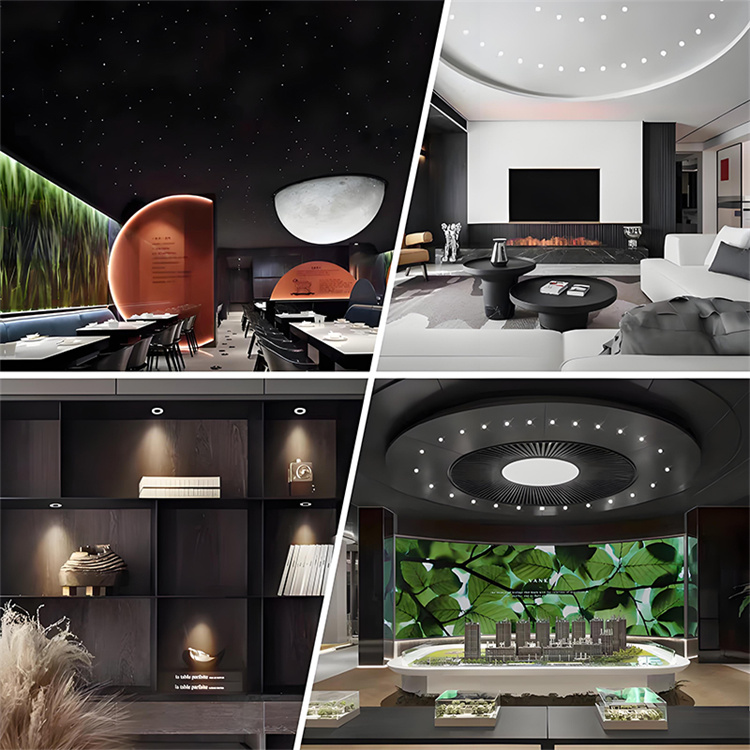

Application

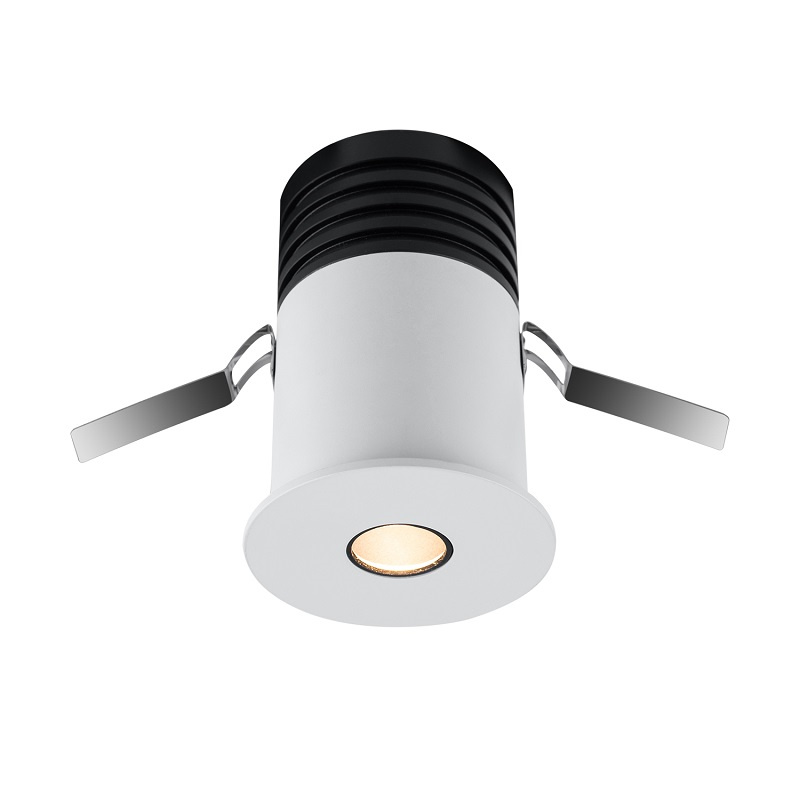

Cabinet/wine cabinet, jewelry/watch counter, hotel, bedroom, corridor etc.
Mini LED Spotlight: Compact Powerhouse with Precision Beam Control
Maximize lighting flexibility without compromising on space or style with our innovative Mini LED spotlight. Engineered for discreet brilliance, this ultra-compact fixture delivers exceptional performance where traditional spotlight simply won't fit, making it the ultimate solution for modern, streamlined interiors.
Unmatched Compact Design:
Experience true space-saving elegance. With a significantly reduced diameter and profile, this mini spotlight installs effortlessly into tight ceilings, shallow plenums, narrow coves, and intricate architectural details. Its minimalist aesthetic creates a virtually invisible presence when off, ensuring your décor takes center stage. Perfect for confined spaces like small bathrooms, hallways, closets, display cabinets, and under-cabinet lighting where every millimeter counts.
Precision Beam Angle Versatility (15°/24°/36°/50°):
Tailor your light with surgical precision. Choose from four distinct beam angles to achieve the exact lighting effect you require:
15° Narrow Spot: Creates intense, focused accent lighting, ideal for highlighting artwork, sculptures, or retail merchandise with dramatic effect.
24° Spot: Offers a slightly wider beam, perfect for task lighting over counters, desks, or focused area illumination.
36° Medium Flood: Provides balanced general lighting for smaller rooms, entryways, or creating defined pools of light.
50° Wide Flood: Delivers expansive, uniform illumination for broader coverage in compact living areas, corridors, or creating ambient background light.
This exceptional flexibility allows you to customize lighting scenes within a single space or ensure consistent application across diverse project needs.
Efficient & Reliable Performance:
Despite its small size, expect powerful output and exceptional energy efficiency inherent in advanced LED technology. Enjoy crisp, high-quality light (CRI >90 typical) with minimal heat generation and a long operational lifespan, drastically reducing maintenance and replacement costs. The robust construction ensures dependable performance.
Ideal For: Residential bathrooms, hallways, closets, kitchens (under cabinet); Retail display cases, accent lighting; Hospitality corridors; Offices with low ceilings; Any application demanding discreet installation and tailored beam control.
Elevate your lighting design with the unparalleled versatility and space-saving intelligence of our Mini LED spotlight. Choose the perfect beam angle and achieve precision illumination effortlessly.
