Wholesale Modern Recessed Three Head Spotlights-FT-HGS10-3
Features:
● IP20/IP44 Rating
● Die-Cast Aluminum Body
● Universal Voltage (100-277V AC)
● Industry-leading glare control for museums, galleries
● Eliminates direct glare while enhancing visual comfort
● Honeycomb louvre + micro-prismatic lens for near-zero discomfort.
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 7-20W：0.5
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | Spotlights |
| Power | 3*7W/3*10W/3*12W/3*15W/3*20W |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Input Voltage(V) | AC 110V ( ± 10%)/AC 220V( ± 10%) |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Other driver brands can also choose from) |
| Color | Black/White |
| Beam angle | 8°/15°/24°/38°/55° |
| CRI (Ra>) | 80/90/95 |
| Cut out | 250*75MM |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K) / Cool White(4000K) / Natural white(5000K/6000K) |
| PF | 7-20W:0.5 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Recessed/Embedded |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Cut Out |
LED Color |
|
FT-HGS10-7W*3 |
7W*3 |
225*85*79MM |
250*75MM |
2700K
|
|
FT-HGS10-10W*3 |
10W*3 |
225*85*90MM |
250*75MM |
|
|
FT-HGS10-12W*3 |
12W*3 |
225*85*90MM |
250*75MM |
|
|
FT-HGS10-15W*3 |
15W*3 |
225*85*100MM |
250*75MM |
|
|
FT-HGS10-20W*3 |
20W*3 |
225*85*100MM |
250*75MM |

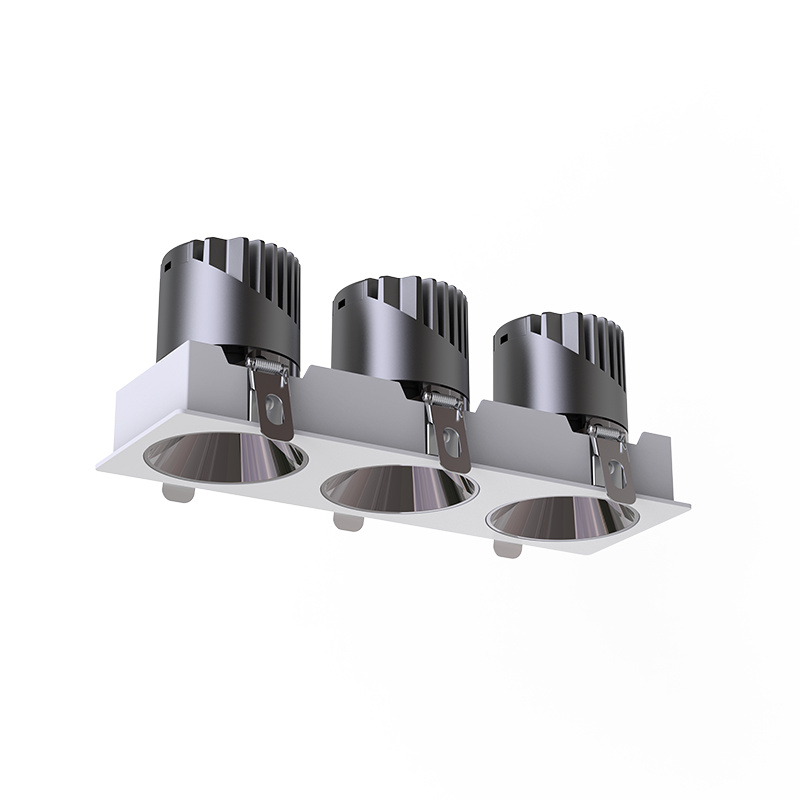

Three head spotlight
This lamp is a 3-in-1 spotlight. One lamp body contains three lamp heads, and each lamp covers an illumination range of 1.2 to 3 meters (depending on the installation height), reducing the number of lamps required, the number of openings, and lowering the installation complexity.
Deep anti-galre
This spotlight features advanced anti-glare technology that delivers perfect illumination while keeping the light source completely hidden.
Key benefits:
• Deep recessed design prevents direct glare
• Creates comfortable, eye-friendly lighting
• Maintains clean ceiling aesthetics (no visible fixtures)
• Ideal for spaces where visual comfort matters most
Professional-Grade Adjustable Spotlight System
Our precision-engineered spotlight offers five customizable beam angles to meet exact lighting requirements across various environments:
8° Pinpoint Beam
• Extreme focus for minute details
• Recommended use: Jewelry displays, precious artifacts
15° Focused Beam
• Precision accent lighting
• Recommended use: Artwork illumination, boutique retail
24° General Beam
• Optimal task lighting
• Recommended use: Food preparation areas, office worksurfaces
38° Wide Beam
• Full area coverage
• Recommended use: Residential living spaces, casual dining
55° Broad Flood
• Complete space illumination
• Recommended use: Grand entrances, open concept areas
Modular Spotlight System
Our modular spotlight system redefines lighting flexibility with endless configuration possibilities for any commercial or residential space.
Customizable Components
• Design Finishes:
Classic round housing
Contemporary square housing (modern aesthetic)
• Configuration Options:
Single light (targeted accent lighting)
Dual light (symmetrical illumination)
Three light (adaptive long arrangement)
Quad light (uniform wide-area coverage)
Flexible Lighting Solutions: 7W 10W 12W 15W 20W Options
Our high-quality spotlights offer multiple wattage choices to perfectly match your lighting requirements:
Wattage Selection Guide
• 7W - Delicate accent lighting for decorative displays and glass cabinets
• 10W - Balanced brightness for home offices and reading areas
• 12W - Professional-grade illumination for boutique retail spaces
• 15W - Strong output for restaurant dining and café atmospheres
• 20W - High-intensity lighting for galleries and exhibitions
Premium Lighting Features
90+ CRI for accurate color representation
Universal dimming support (0-10V/TRIAC compatible)
Customizable Lighting Control Solutions
Dimmable Options:
• Standard wall dimmer compatibility (Triac)
• Professional-grade 0-10V dimming
• Advanced DALI network control
Tunable White Light (2700K-6500K):
Wireless Connectivity: Seamless integration with Bluetooth, WiFi, and Zigbee platforms
Wired Professional Control: Industry-standard DALI DT8 protocol
Intelligent Features:
• Gradual, natural color transitions
• Flicker-free operation for visual comfort
• Full compatibility with leading smart home ecosystems
This system offers complete command over your lighting environment, from subtle mood settings to precise professional requirements.

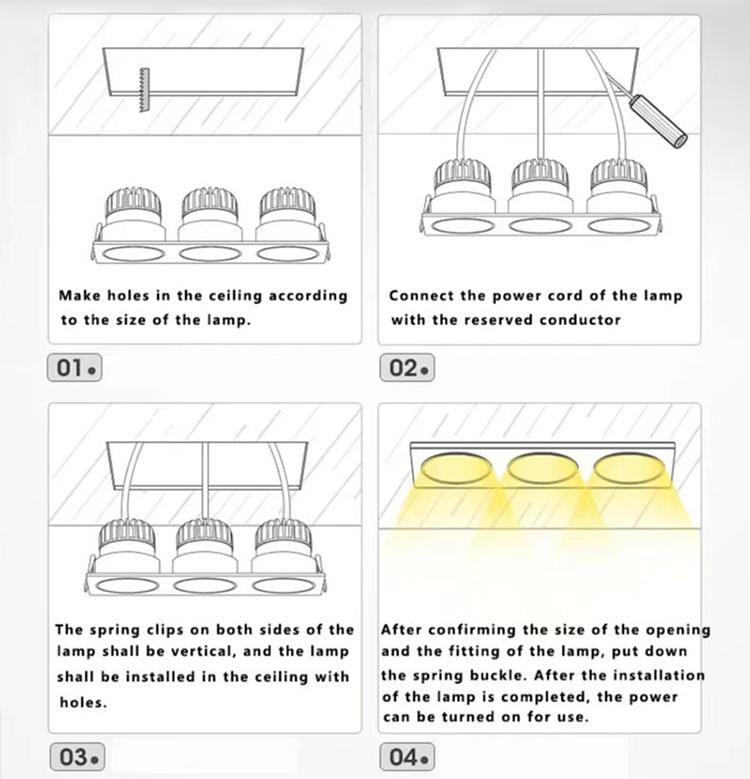

Easy to install
1. Prepare the Mounting Hole – Cut an opening matching the lamp’s specified diameter using appropriate tools.
2. Electrical Connection – Safely wire to standard 220V household power (polarity-insensitive design eliminates live/neutral wire concerns).
3. Secure the Fixture – Align and press upward until the spring clips fully engage with the ceiling/wall surface.
4. Final Verification – Power on to confirm proper operation before final use.
Safety Tip: Always ensure the circuit is de-energized during installation.
Application
Luxury retail displays, Museum artifact lighting, High-end residential spaces, Office task areas
