Wholesale Office Cool White Track Lighting Commercial Lighting Factory FT-TL24
Features:
● Supports smart lighting control systems
● High-quality constant current driver(PF>0.95）
● Quick-lock mechanism for fast, secure mounting
● Works with H-type,3-phase, and standard tracks
● Integrated Driver–Compact, space-saving structure
● Full flexibility for precise directional lighting
Specifications:
- Input Voltage AC 110V ( ± 10%)/AC 220V( ± 10%)
- PF 15-20W:0.5 25W-45W: 0.95
- Driver LIFUD / OSRAM / PHILIPS / TRIDONIC Optional
- LED source CREE / EPISTAR / CITILED / LUMINUS / OSRAM Optional
- CRI 80/90/95
- Lifespan 50000hrs
Specification
| Brand Name | Fitlight |
| Item Type | LED Track Light |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 15W/20W/25W/30W/35W/40W/45W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM |
| (Other driver brands can also choose from) | |
| Driver | OSRAM (Other driver brands can also choose from) |
| Color | White Black For Option |
| Beam angle | 24°/38° |
| CRI (Ra>) | 80/90/95 |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) /Cool White (5000K/6000K) |
| PF | 15-20W:0.5 25W-45W: 0.95 |
| Ambient Temperature | -10℃～+40℃ |
| Storage Tempertature | -20℃～50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens |
LED Color |
|
FT-TL24-15W |
15W |
D55*H120 |
1350lm |
2700K
|
|
FT-TL24-20W |
20W |
D65*H128 |
1900lm |
|
|
FT-TL24-25W |
25W |
D75*H150 |
2375lm |
|
|
FT-TL24-30W |
30W |
D75*H150 |
2850lm |
|
|
FT-TL24-35W |
35W |
D85*H160 |
3325lm |
|
|
FT-TL24-40W |
40W |
D95*H170 |
3800lm |
|
|
FT-TL24-45W |
45W |
D95*H170 |
4275lm |
The advantages of the product
The drive and track are integrated into one, reducing exposed components and making the track system more concise, which is suitable for modern minimalist style decoration.
This track light features a bidirectional adjustment capability of 360° horizontal rotation and 90° vertical rotation, providing extremely high flexibility and precise light control for lighting design. When adjusting products or transforming Spaces, there is no need to move the tracks. Just rotate the lamp heads to redistribute the light.
· Our track light is available in multiple beam angles—24° and 38° —providing flexibility for precise lighting control in various settings.
24° beam Angle: With a small illumination range, it can be used to highlight a single product or exhibit
38° beam Angle: Known as the "universal beam Angle", the light diffuses gently and the edge of the light spot transitions naturally, making it suitable for the wall-hanging areas of clothing stores and cosmetic shelves
· Available in multiple wattages (15W–45W ), which can meet both household needs and commercial purposes.
15W-20W track lights: Suitable for jewelry counters, art displays, and lighting for home decorative paintings
25W-30W track lights: Suitable for clothing store shelves, restaurant tables, and office workstations
35W-45W track lights: Fresh food section in supermarkets, main stage in exhibition halls, and high-position lighting in factories

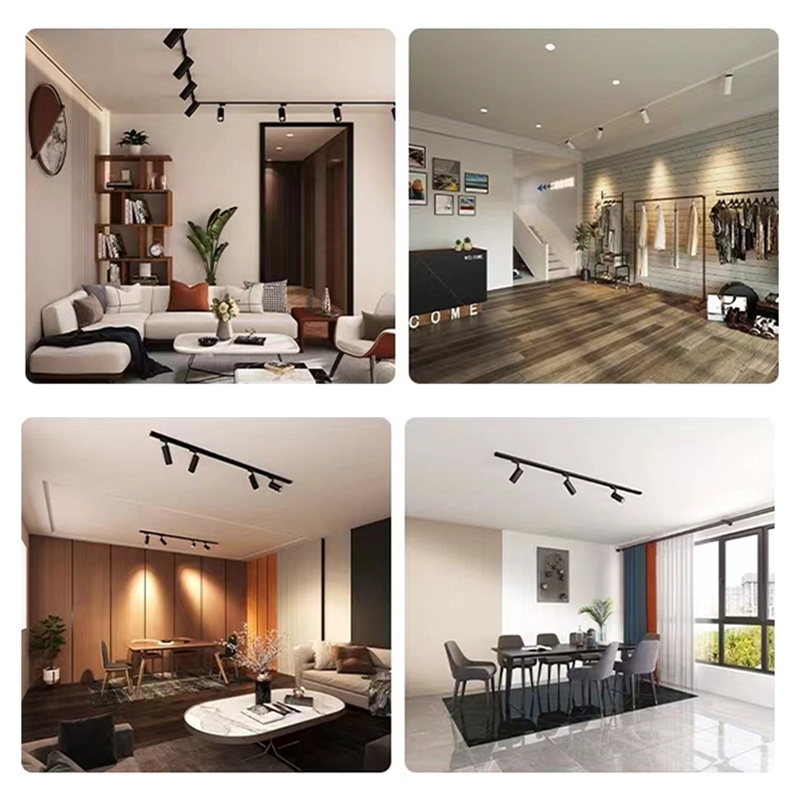

Led Track Light Application
Track lights are suitable for retail stores, exhibition halls and galleries.
Restaurants, cafes, supermarkets, etc
LED Track Light Power Supply Options: Built-in, Integrated & External Driver Solutions
Understanding power supply configurations is crucial for optimal LED track light performance. We offer three distinct options to suit diverse installation needs:
1. Built-in Driver (Internal)
● Advantages: Compact all-in-one design, simplified installation, and clean aesthetics
● Applications: Retail stores, offices, and residential spaces where discreet lighting is preferred
● Features: Space-saving, maintenance-free operation with typical 50,000-hour lifespan

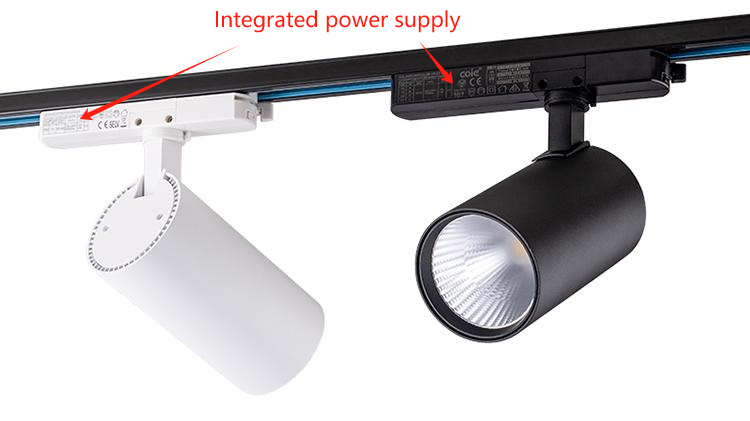

2. Integrated Driver (One-Piece)
● Advantages: Superior heat dissipation, easier maintenance, and stable performance
● Applications: Museums, galleries, and commercial spaces requiring reliable, long-duration operation
● Features: Combines sleek design with accessible driver replacement
3.External Driver (Power Box)
● Advantages: Maximum flexibility, higher power capacity, and centralized control
● Applications: Large-scale projects, warehouses, and industrial facilities
● Features: Supports complex dimming systems (0-10V/DALI) and high-wattage configurations
Selection Guide
● Choose built-in for space-constrained areas
● Opt for integrated in premium commercial settings
● Select external drivers for industrial or smart lighting systems
Our track lights support global voltage standards (100-277V) with IP20 protection ratings. Each option delivers the same high efficiency while addressing different project requirements.
