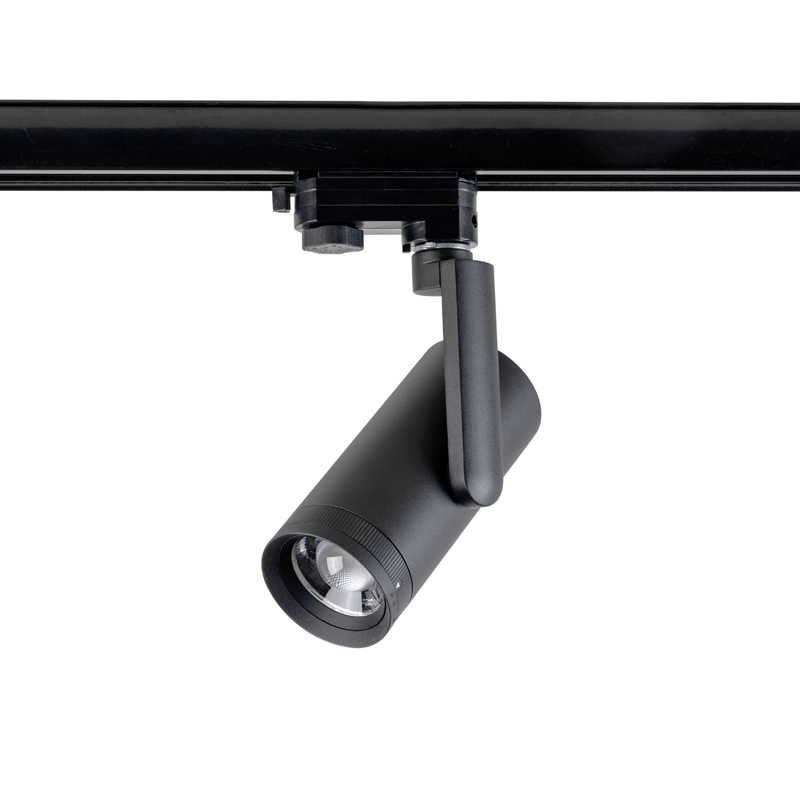

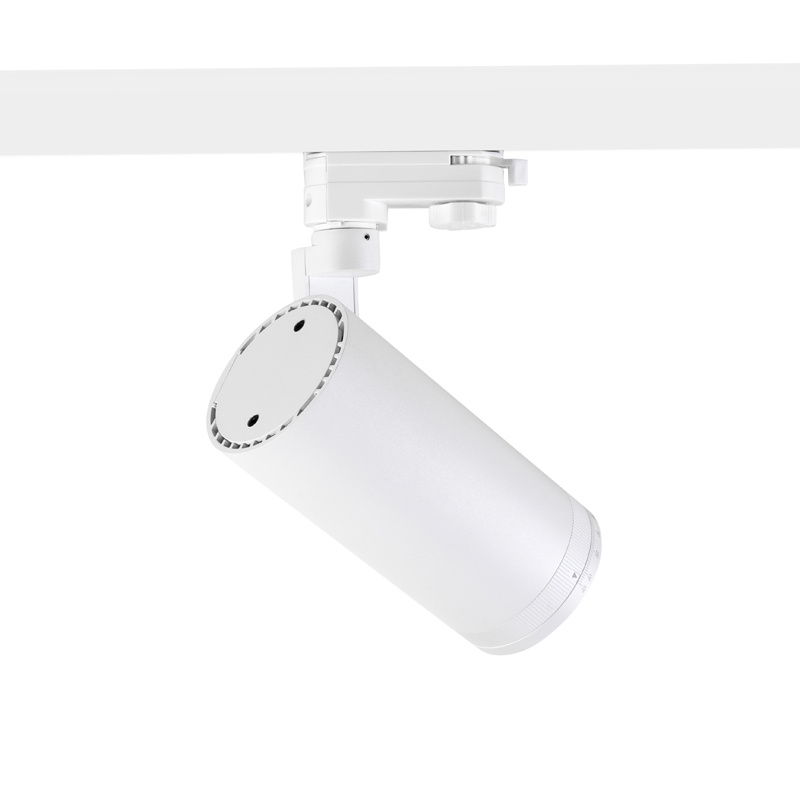

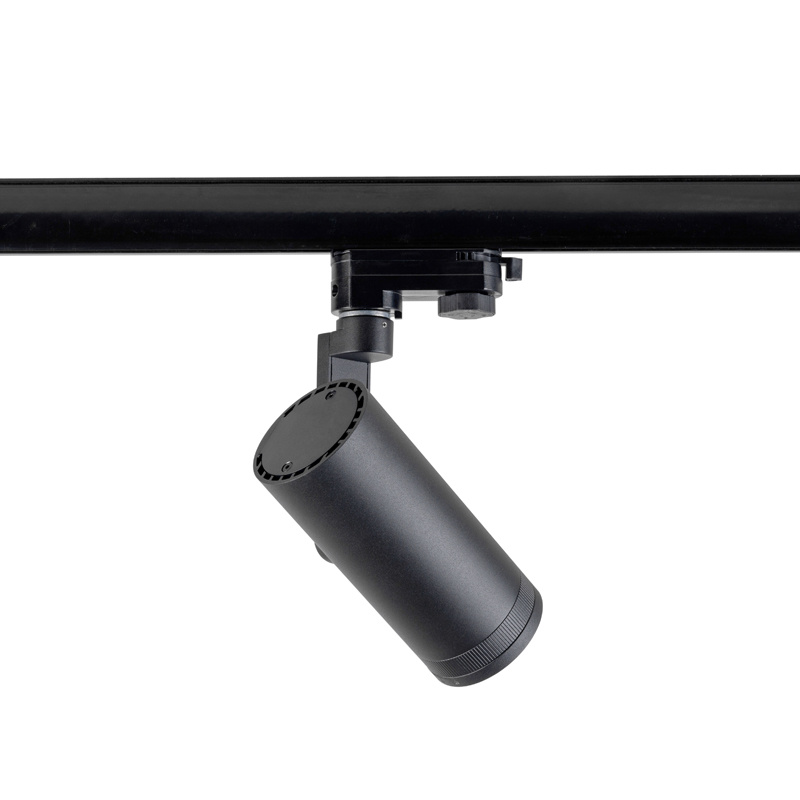

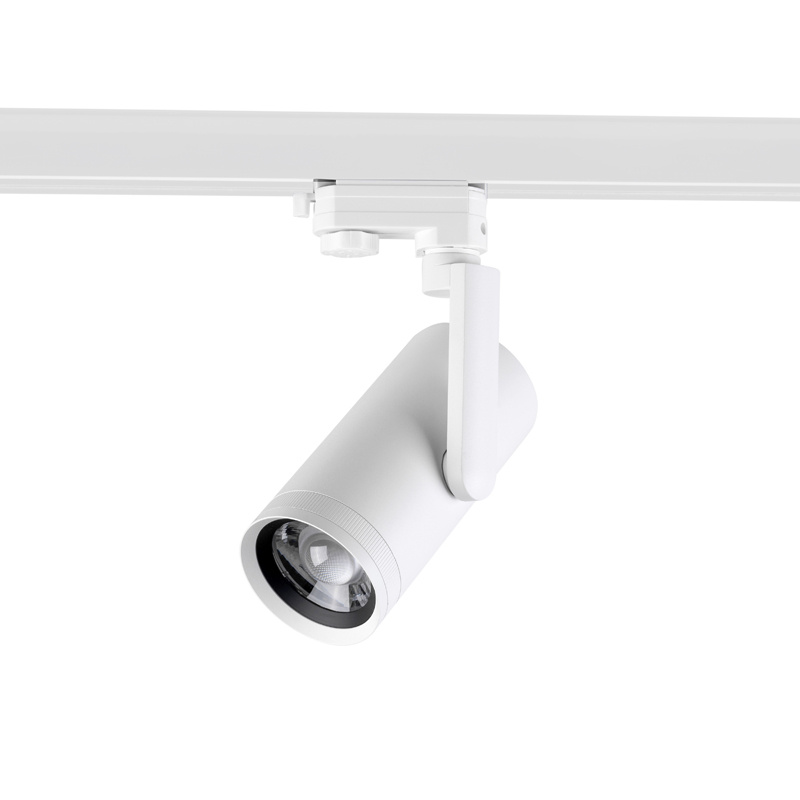

Zoomable Led Track Tight Smart Ceiling Modern Track Lighting FT-TL02
Specification
| Brand Name | Fitlight |
| Item Type | Zoomable Track Lights |
| Adaptor | 2/3/4-phase |
| Certificates | CE/EMC/LVD/ROHS/SAA(Whole lamp); Driver(CE/EMC/LVD/ROHS/CB/SAA/UL) |
| Power | 15W/ 20W /25W/ 30W/ 35W |
| Input Voltage(V) | AC100-240V or AC200-240V |
| LED Light Source | CREE / EPISTAR / CITILED / LUMINUS / OSRAM (Mainly COB series) |
| Driver | LIFUD / OSRAM / PHILIPS / TRIDONIC optional |
| Color | Black / White |
| Beam angle | 10°-55°Adjustbale |
| CRI (Ra>) | 80/90/95 |

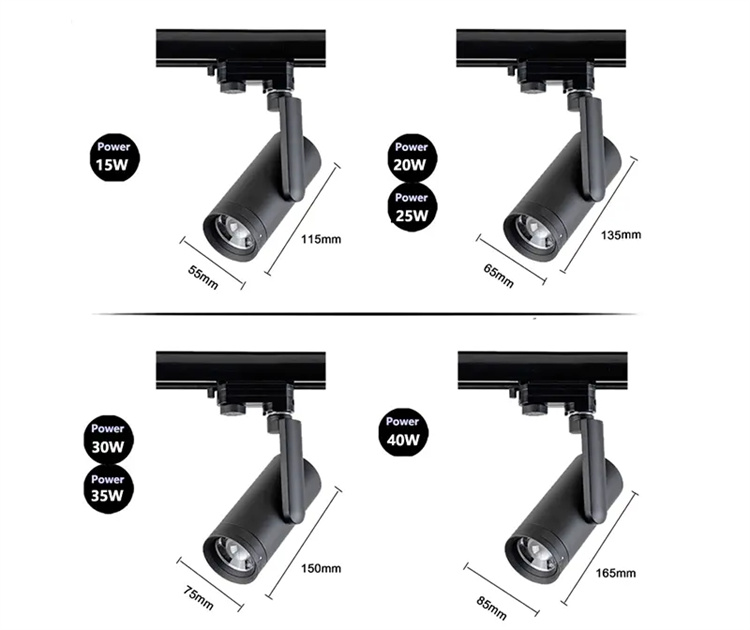

| Size | D55*H140/D65*H147/D75*H159/D85*H165/D95*H170mm |
| Working Temperature( °C ) | -20 ~ +50 |
| Lamp Body Material | Aluminum |
| CCT | Warm White(2700K/3000K/3500K) / Natural white (4000K) /Cool White (5000K/6000K) |
| PF | 15-20W:0.5; 25-35W:0.95 |
| Ambient Temperature | -10℃~+40℃ |
| Storage Tempertature | -20℃~50℃ |
| Housing Temperature (working) | <70℃ (Ta=25℃) |
| Installation | Rail Track Installed |
| Application | Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc |
|
Model No. |
Watts |
Size(mm) |
Lumens (lm) |
LED Color |
|
FT-TL02-15W |
15W |
D55*H140 |
1200lm |
2700K
|
|
FT-TL02-20W |
20W |
D65*H147 |
1600lm |
|
|
FT-TL02-25W |
25W |
D75*H159 |
2100lm |
|
|
FT-TL02-30W |
30W |
D85*H165 |
2550lm |
|
|
FT-TL02-35W |
35W |
D95*H170 |
2975m |
The advantages of the product

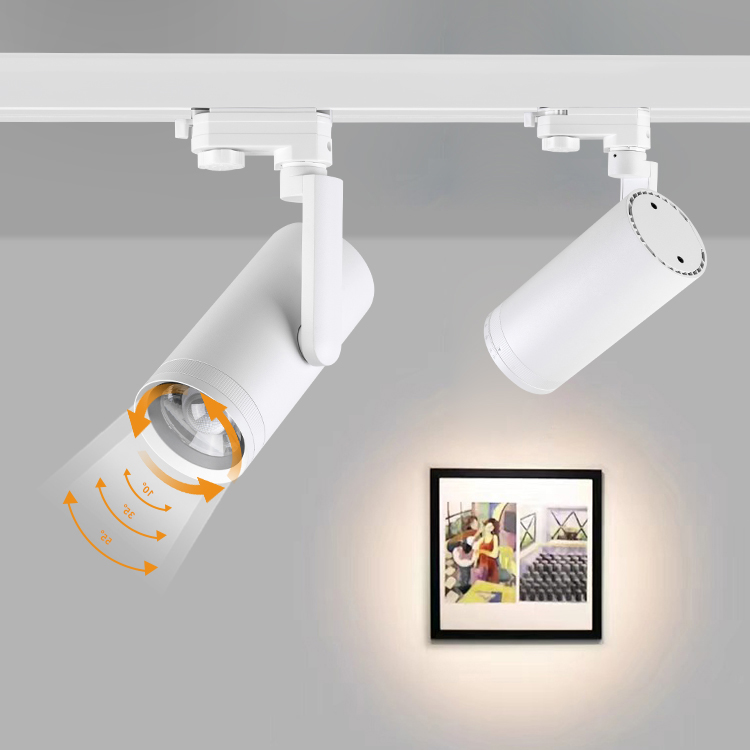

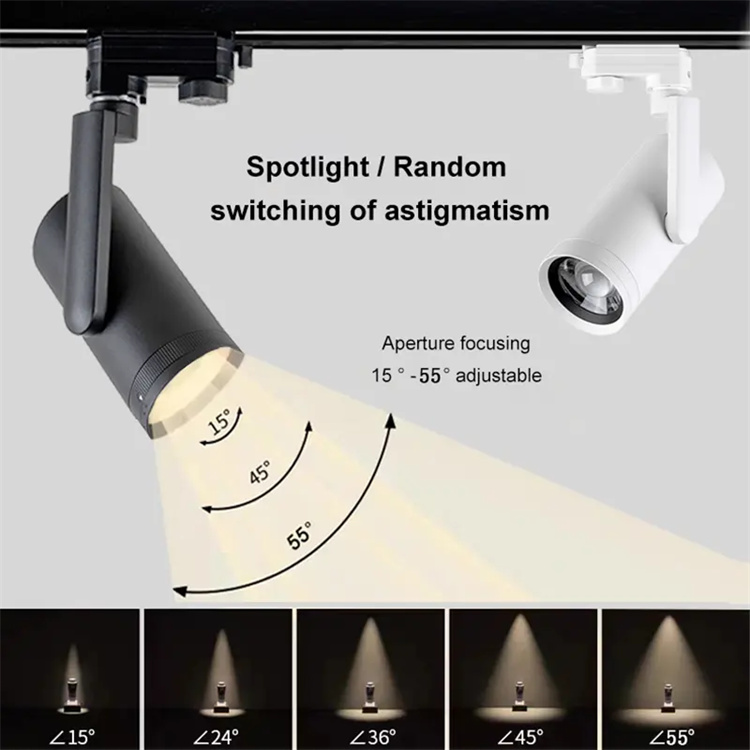

· This innovative track light features an adjustable beam angle ranging from a narrow 10° spotlight to a wide 55° floodlight (continuously adjustable), significantly enhancing lighting flexibility for diverse scenarios. The stepless adjustment capability allows perfect light distribution whether creating dramatic accent lighting for artwork (10°), medium coverage for retail displays (24°-38°), or broad illumination for area lighting (55°). This superior adaptability makes it ideal for commercial galleries, boutique stores, and architectural lighting where precise beam control and scene customization are crucial. The smooth transition between angles ensures seamless adaptation to changing lighting requirements while maintaining optimal brightness and visual comfort.

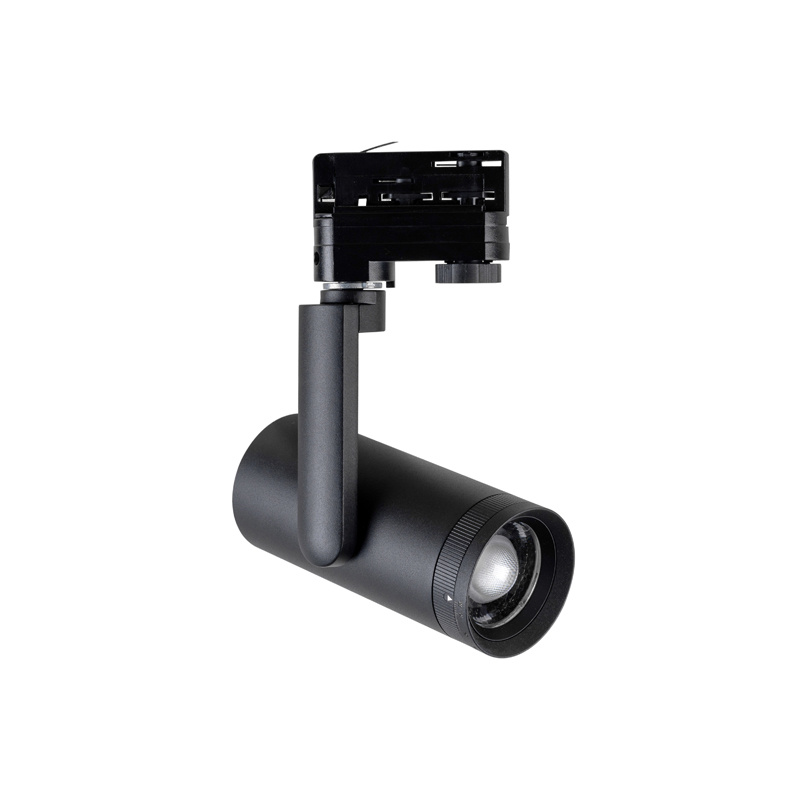

· The side arm design, with flexible adjustment, avoids obstruction and can expand the coverage of lighting. When the track is in close contact with the wall or beam and column, the side boom can extend laterally, preventing the lamp head from hitting obstacles. Visually, it is more simple and suitable for modern styles.

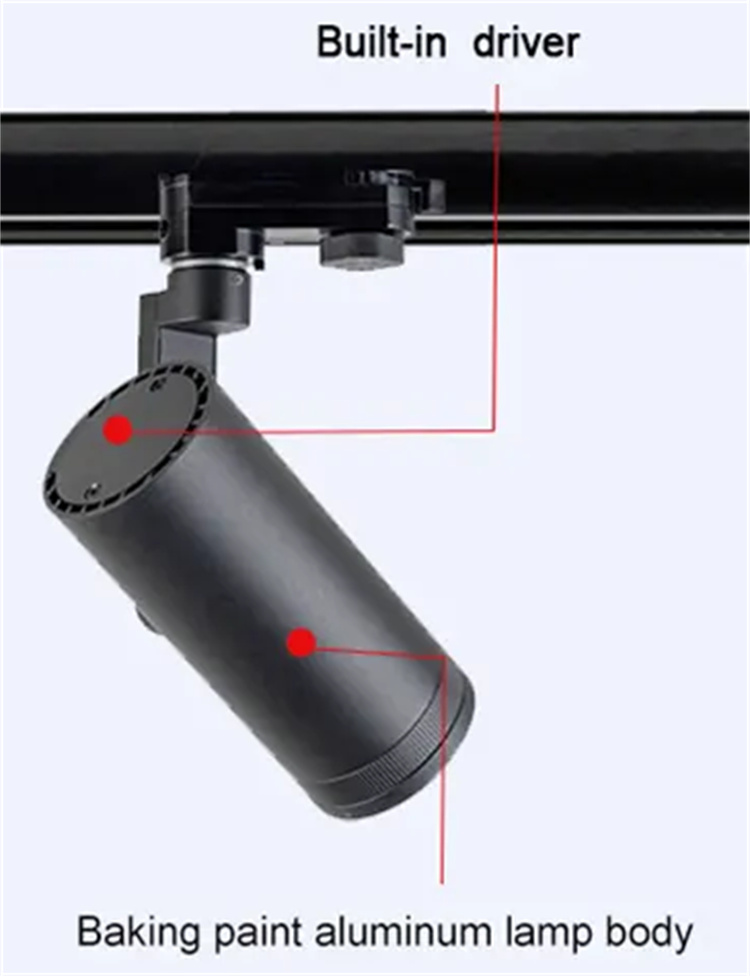

· Built-in power supply, no exposed drivers or cables, suitable for minimalist style.
It features a high-quality aluminum casing with excellent heat dissipation performance.

· This energy-efficient track light is available in adjustable wattages ranging from 15W to 35W, offering customizable brightness levels for diverse lighting scenarios. Whether you require intense 15W spotlighting for accent displays or powerful 35W illumination for wide-area coverage, this versatile solution ensures optimal light output for retail environments, art galleries, or commercial spaces. The wattage-selectable design allows for precise energy management while maintaining consistent, high-quality lighting performance across all applications.

· Adjustable Color Temperature (CCT): Our track lights offer tunable white light from 2700K (warm amber glow) to 6000K (vivid daylight), with full customization available to achieve your desired ambiance. Ideal for creating inviting atmospheres in hotels/restaurants or energizing workspaces in offices/retail stores, this intelligent CCT adjustment delivers flawless color consistency across all settings while optimizing visual comfort and functionality.

Led Track Light Application
Shops, Supermarkets, Aisles, Metro Station, Restaurants, Offices etc.

Adjustable Beam Angle LED Track Lights – Perfect for Museums & Galleries
Our LED adjustable focus track lights (10°–55° beam angle adjustable) offer unparalleled flexibility for precision lighting in museums, art galleries, and high-end retail displays. The ability to fine-tune the beam angle ensures optimal illumination for different artworks, exhibits, and architectural details.
Why Beam Angle Matters
Narrow Beam (10°–25°): Creates a focused spotlight effect, ideal for highlighting sculptures, paintings, or small artifacts with minimal light spill. Enhances contrast and draws attention to key pieces.
Medium Beam (30°–45°): Perfect for larger displays or grouped artworks, providing even coverage while maintaining visual emphasis. Great for gallery walls or historical exhibits.
Wide Beam (50°–55°): Delivers broad, ambient lighting for open spaces or large installations, reducing shadows and ensuring uniform brightness.
Key Applications
Museums: Adjust between a tight spotlight for delicate artifacts and a wider wash for informational panels.
Art Galleries: Accent lighting for paintings (narrow angle) or wider coverage for installations (55°).
Luxury Retail: Highlight products with a sharp beam or create inviting ambiance with a softer spread.
Advanced Features
✔ Smooth Adjustment– Rotate or slide to set the perfect angle without tools.
✔ High CRI (>90) – True color rendering for accurate artwork representation.
✔ Dimmable Options – Adjust brightness to preserve light-sensitive materials.
Upgrade to smart control compatibility for automated beam adjustments based on exhibit layouts. Contact us for customized lighting solutions!
